Emis SMC-TR-1000 Controller card 12 V DC, 24 V DC 1 A Parallel
EAN:
Part number:
Item no:
Interfaces
Parallel
Max. phase load
1 A
Product type
Controller card
Operating voltage
12 V DC
24 V DC
Steering axles
3
Number
Minimum order quantity: 5
Multiple: 5
Total (€ 77.30 / piece)
€ 386.50
plus VAT.
14-day return policy included
Highlights & Details
Emis SMC-TR-1000 Controller card 12 V DC, 24 V DC 1 A Parallel
- Up to 3 stepper motors for 3 axes control
Technical specifications
- Frequency: 100 kHz
- Micro-step operation: 1/1, 1/2, 1/4, 1/8 and 1/16
- Interfaces
Parallel
- Operating voltage
12 V DC
24 V DC
- Steering axles
3
- Phases
4
- Manufacturer part #
SMC-TR-1000
- Type
SMC-TR-1000
- Max. phase load
1 A
- Interfaces
SUB-D 25-pin
- Product type
Controller card
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 197309 Emis SMC-TR-1000 Controller card 12 V DC, 24 V DC 1 A Parallel
Description

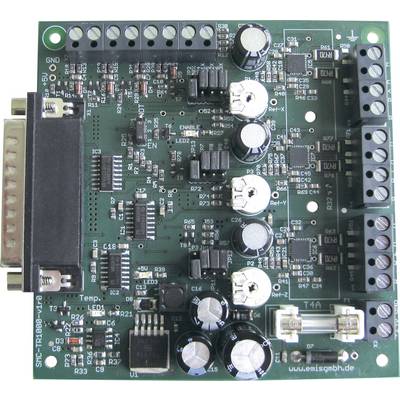

The stepper motor control card SMC-TR-1000 is used to 3-Axis control of stepper motors. You can, for example, as a plotter control system or for 3-axis positioning systems. The card is for connection of bipolar 2-phase or 4-phase stepper motors. The phase currents can be continuously for up to a continuous current of 1A. To operate the control card is only an external power supply needed. The connection to the control card to the PC is made via the parallel interface. The control is done after the stroke direction principle. With the help of the accompanying software, the user is able to implement your own ideas very quickly (for example, positioning, drilling, milling, engraving and robot systems).
This text is machine translated.
This text is machine translated.
Features
- Connection of up to 3 reference switches (XYZ) + emergency off switch
- Phase current variable up to 1 A (continuous current) adjustable
- Simple connection to parallel interface of the PC
- Control with pulse direction signal
- Automatic standby current reduction (25%) at motor standstill
- Over temperature switching
- Short-circuit proof output stage.
Scope of delivery
- Control card
- Software
- User manual.
