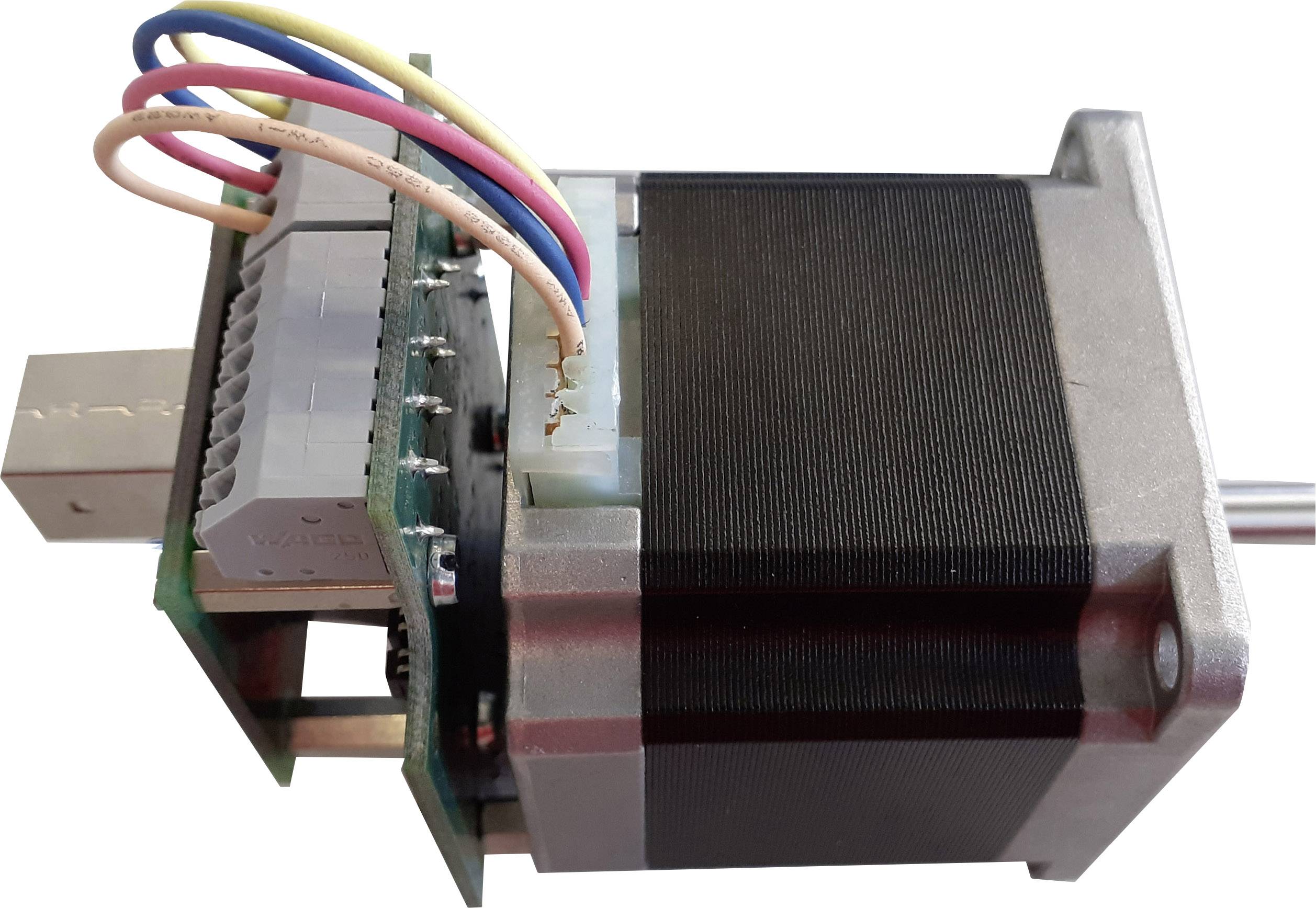

Emis Stepper motor + controller SMC-dMOT-56 SMC-dMOT-56 1.1 Nm 0.7 A 0.7 A Shaft diameter: 6 mm
EAN:
Part number:
Item no:
Number
Total (€ 239.50 / piece)
€ 239.50
plus VAT.
14-day return policy included
Highlights & Details
Stepper motor dMOT-56
- Easy connection via USB
- Connection for a reference switch
- Connection for an emergency Stop module
- Connection for a fan
- Cascading of several stepper motors
- Over temperature switching
- Very compact design
Technical specifications
- Operating voltage
12V DC TO 48V DC
- Angle
1,8°
- Holding torque
1.1 Nm
- Max. phase load
0.7 A
- Shaft Ø
6 mm
- Shaft length
19.1 mm
- Manufacturer part #
SMC-dMOT-56
- Type
SMC-dMOT-56
- Width
56 mm
- Flange size
56 mm
- Interfaces
USB
- Nominal current
0.7 A
- Nominal voltage
4.69 V
- Phases
2
- Shaft Ø
6 mm
- Rotational speed
1200 U/min
- Nominal torque
1.1 Nm
- Motor length
55.3 mm
- Product type
Stepper motor + controller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2189880 Emis Stepper motor + controller SMC-dMOT-56 SMC-dMOT-56 1.1 Nm 0.7 A 0.7 A Shaft diameter: 6 mm
Description
The QMot motors are high-quality products that are perfectly suited to the Trinamic controls. This is for bipolar 2-phase hybrid stepping motors in "high-torque" version with a step resolution of 1.8 ° (200 steps per revolution) The design is "square" with the flange dimensions: 28 mm (NEMA11), 42 mm (NEMA17), 57 mm (NEMA23) and 60 mm (NEMA24). Because of the internal construction, they are particularly suitable for micro-stepping operation (µ-stepping). 4 connection stranded wires.
Features
- Integrated fixed-value memory.
Hints
Documentation, manuals, software is available trinamic.com!
