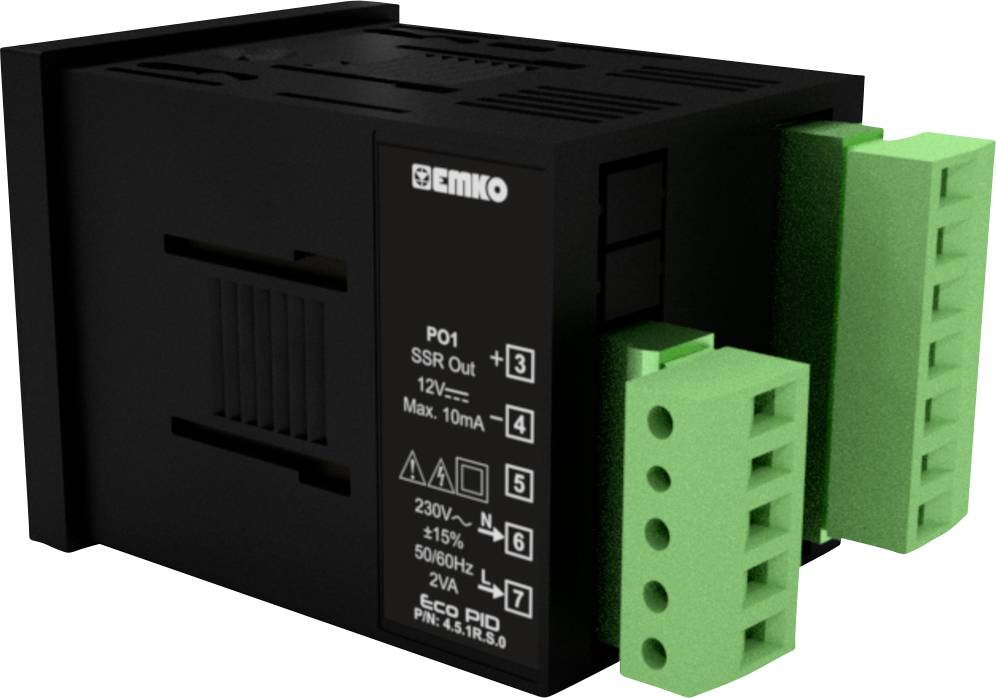

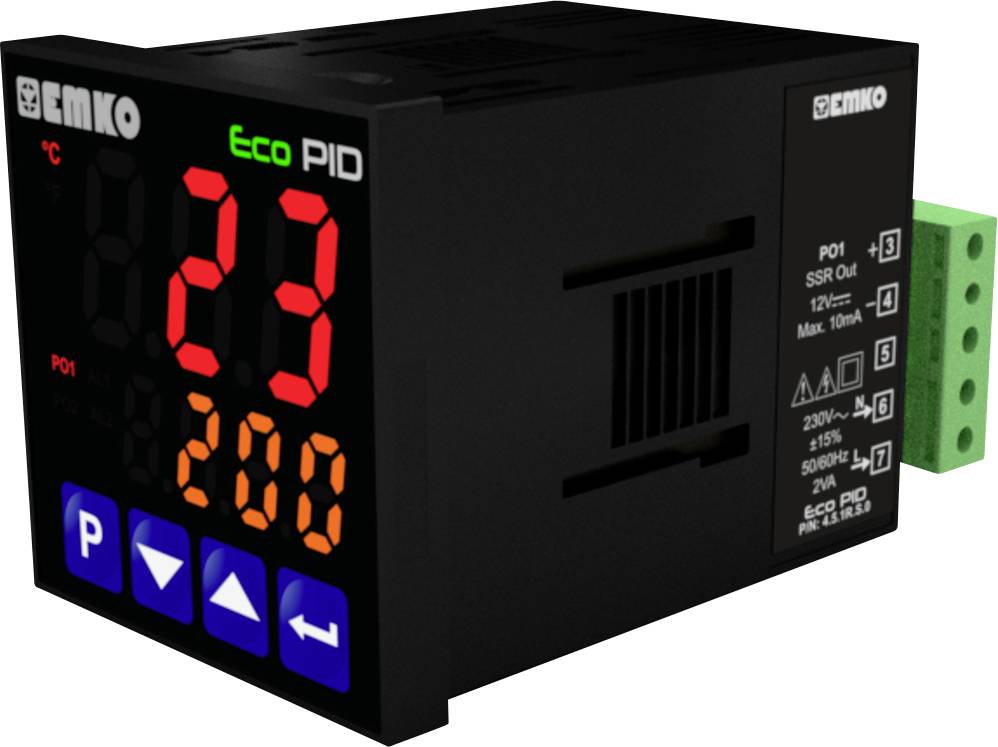

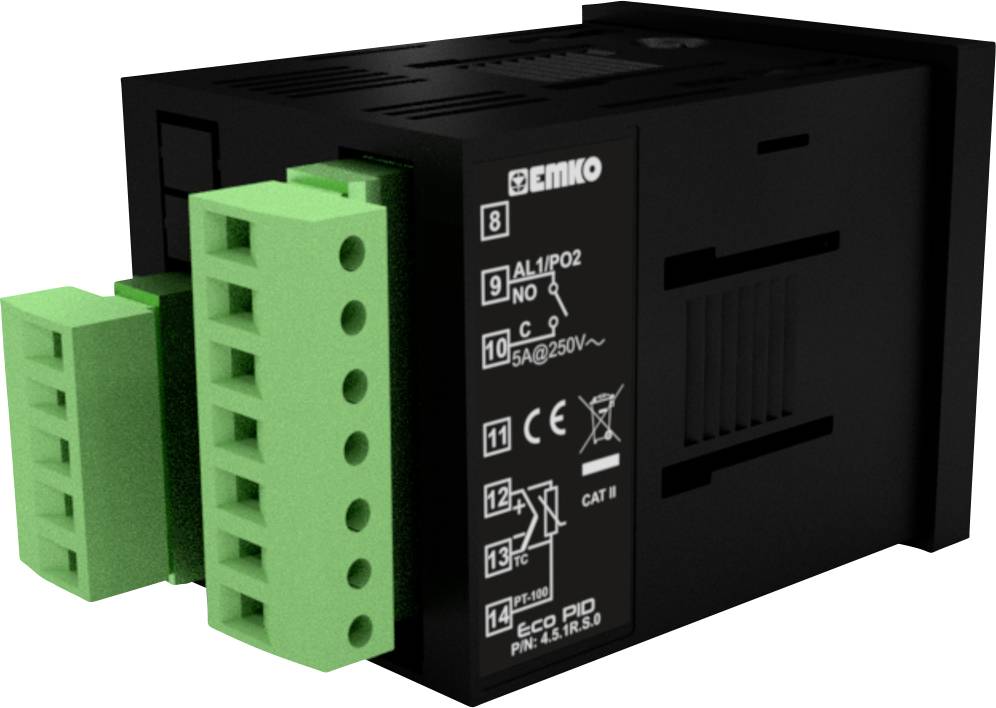

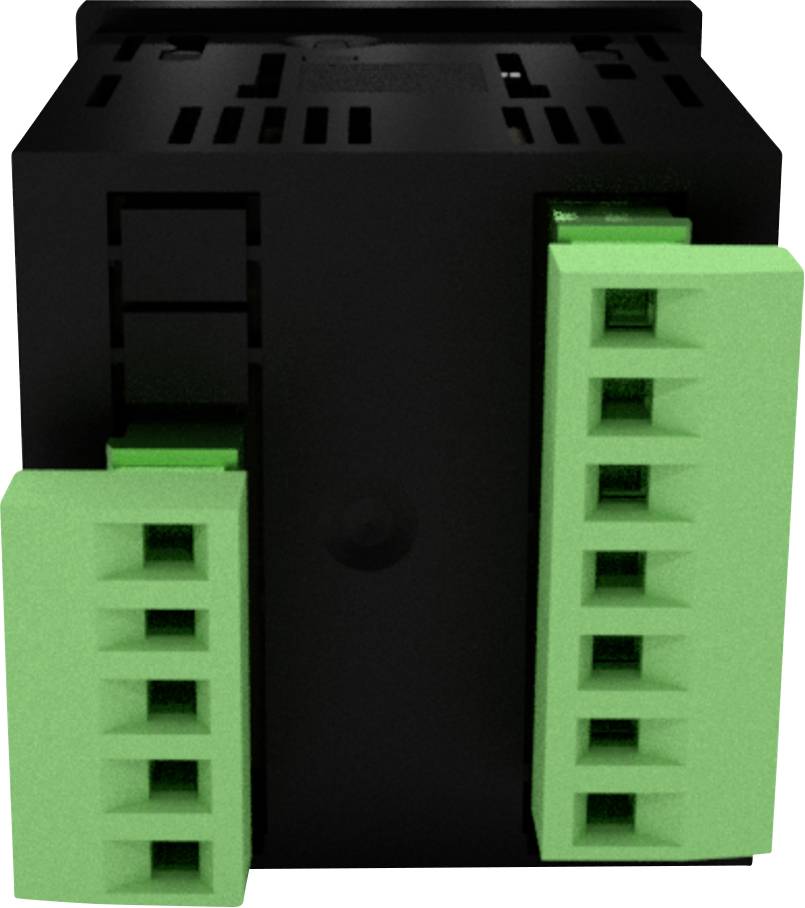

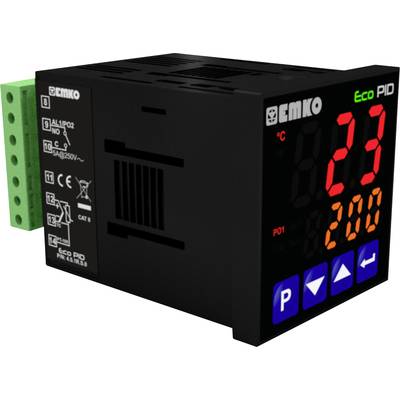

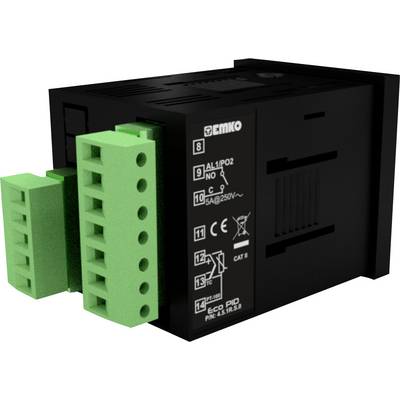

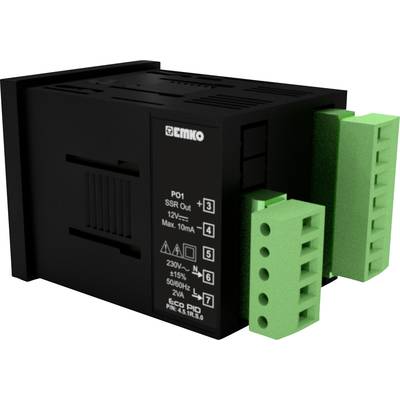

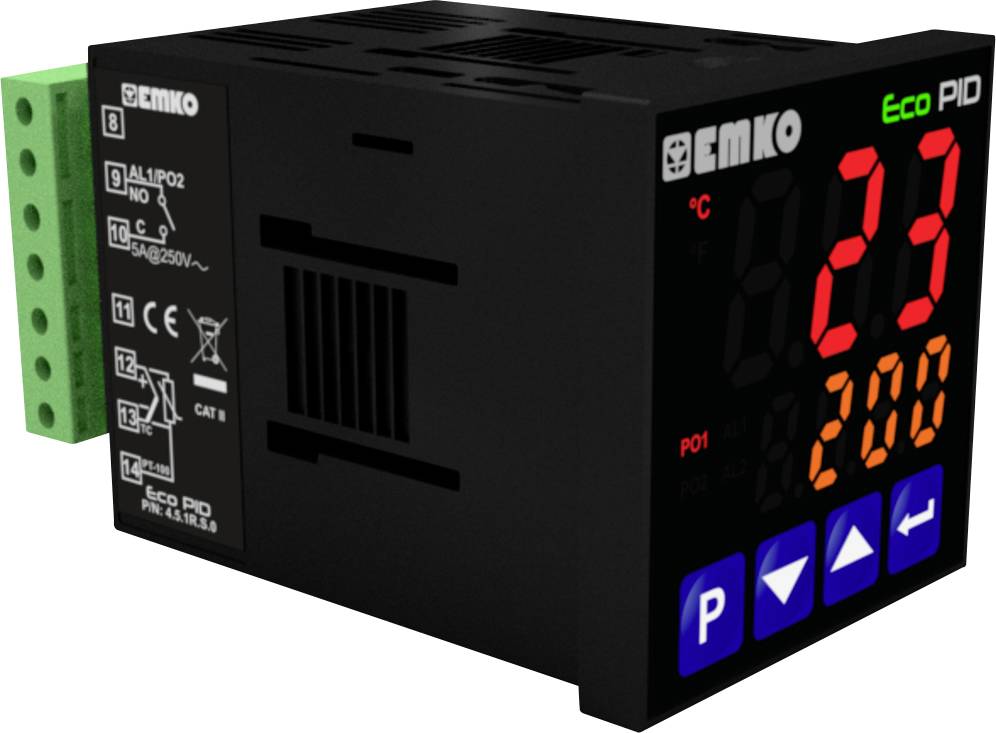

Emko ecoPID.4.6.2R.S.485 Temperature controller Pt100, J, K, R, S, T, L -199 up to +999 °C 5 A relay, SSR (L x W x H) 90
EAN:
Part number:
Item no:
Product type
Temperature controller
Operating voltage
10 V DC
12 V DC
24 V DC
30 V DC
Max. temperature reading
+999 °C
Outputs (thermostats)
5 A relay
SSR
No. of relay outputs
2
Datasheet (PDF)
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
Highlights & Details
EcoPID temperature controller
- 3-digit actual value display
- 4-digit setpoint display
- Control type two-point, P,Pi, PD, PID and PID self-optimization
- Type J, K, R, S sensor input and Pt100 resistance thermometer
- Can be set to heating or cooling function
- Offset
- Hysteresis
- Password protection
- RS485 Modbus RTU interface
Technical specifications
- Product type
Temperature controller
- Type
ecoPID.4.6.2R.S.485
- Operating voltage
10 V DC
12 V DC
24 V DC
30 V DC
- Reading range
-199 up to +999 °C
- Max. temperature reading
+999 °C
- Min. temperature reading
-199 °C
- Outputs (thermostats)
5 A relay
SSR
- No. of relay outputs
2
- Dim
(L x W x H) 90 x 48 x 48 mm
- Factory colour
Black
- Height
48 mm
- Length
90 mm
- Width
48 mm
Front: IP65 / connection: IP20
- Sensor type
Pt100
J
K
R
S
T
L
- Manufacturer part #
ecoPID.4.6.2R.S.485
- Mounting type
Recess-mount
- Interfaces
RS485 Modbus RTU
- Weight
150 g
Documents & Downloads
Datasheet
Datasheet 2352520 Emko ecoPID.4.6.2R.S.485 Temperature controller Pt100, J, K, R, S, T, L -199 up to +999 °C 5 A relay, SSR (L x W x H) 90
User & Safety Instructions
User & Safety Instructions 2352520 Emko ecoPID.4.6.2R.S.485 Temperature controller Pt100, J, K, R, S, T, L -199 up to +999 °C 5 A relay, SSR (L x W x H) 90
Conformity certificate
Conformity certificate 2352520 Emko ecoPID.4.6.2R.S.485 Temperature controller Pt100, J, K, R, S, T, L -199 up to +999 °C 5 A relay, SSR (L x W x H) 90
Description
The PID temperature controller ecoPID is a temperature controller that is used for heating or cooling applications. The universal sensor input is set in the programming to sensor type J, K, R, S or resistance thermometer Pt100 as required. Furthermore, the temperature controller has adjustment options such as offset, hysteresis, switching delay and much more. The large digits of the display allow easy reading of the values.
