Emko ESM-9945-N Bang-bang, P, PI, PD, PID Temperature controller Pt100 -200 up to +1700 °C 5 A relay (L x W x H) 100 x 9
EAN:
Part number:
Item no:
Product type
Temperature controller
Thermostat type
Bang-bang, P, PI, PD, PID
Operating voltage
230 V AC
Max. temperature reading
+1700 °C
Outputs (thermostats)
5 A relay
Datasheet (PDF)
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
Only 3 Piece(s) available
Highlights & Details
PID temperature controller with universal sensor input, dial, timer and 2 outputs
- 4-digit displayTimer hours/minutes or minutes/secondsUniversal sensor input for Pt100, J, K, R, S.2-point, P, PI, PD or PID controlPID self-optimization functionHysteresisOffset valuesInternal buzzerDoor switch inputEvaporator output
Technical specifications
- Product type
Temperature controller
- Type
ESM-9945-N
- Thermostat type
Bang-bang, P, PI, PD, PID
- Operating voltage
230 V AC
- Reading range
-200 up to +1700 °C
- Max. temperature reading
+1700 °C
- Min. temperature reading
-200 °C
- Outputs (thermostats)
5 A relay
- No. of relay outputs
3
- Dim
(L x W x H) 100 x 96 x 96 mm
- Factory colour
Black
- Height
96 mm
- Length
100 mm
- Width
96 mm
Front: IP65 / connection: IP20
- Sensor type
Pt100
- Manufacturer part #
ESM-9945-N.5.20.0.2/01.01/1.0.0.0
- Mounting type
Recess-mount
- Sensor type
Pt100
- Weight
370 g
Documents & Downloads
Datasheet
Datasheet 2589175 Emko ESM-9945-N Bang-bang, P, PI, PD, PID Temperature controller Pt100 -200 up to +1700 °C 5 A relay (L x W x H) 100 x 9
User & Safety Instructions
User & Safety Instructions 2589175 Emko ESM-9945-N Bang-bang, P, PI, PD, PID Temperature controller Pt100 -200 up to +1700 °C 5 A relay (L x W x H) 100 x 9
Description

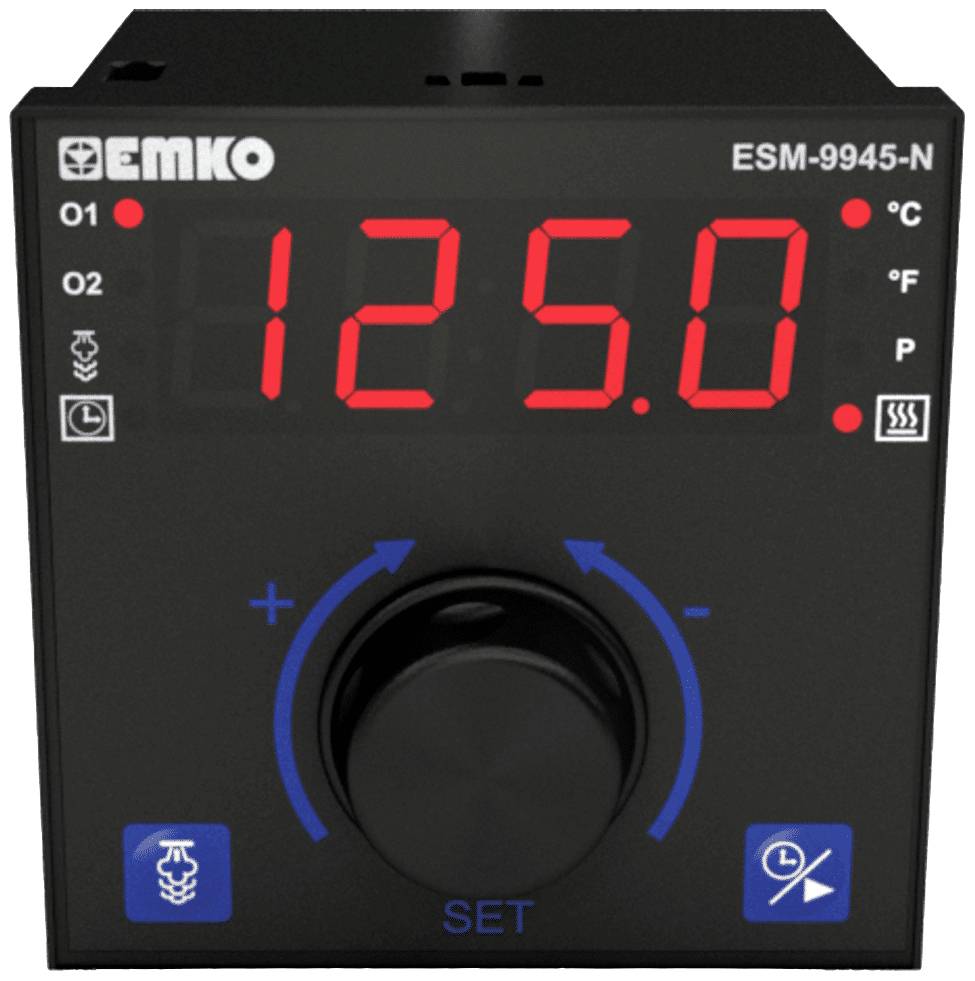

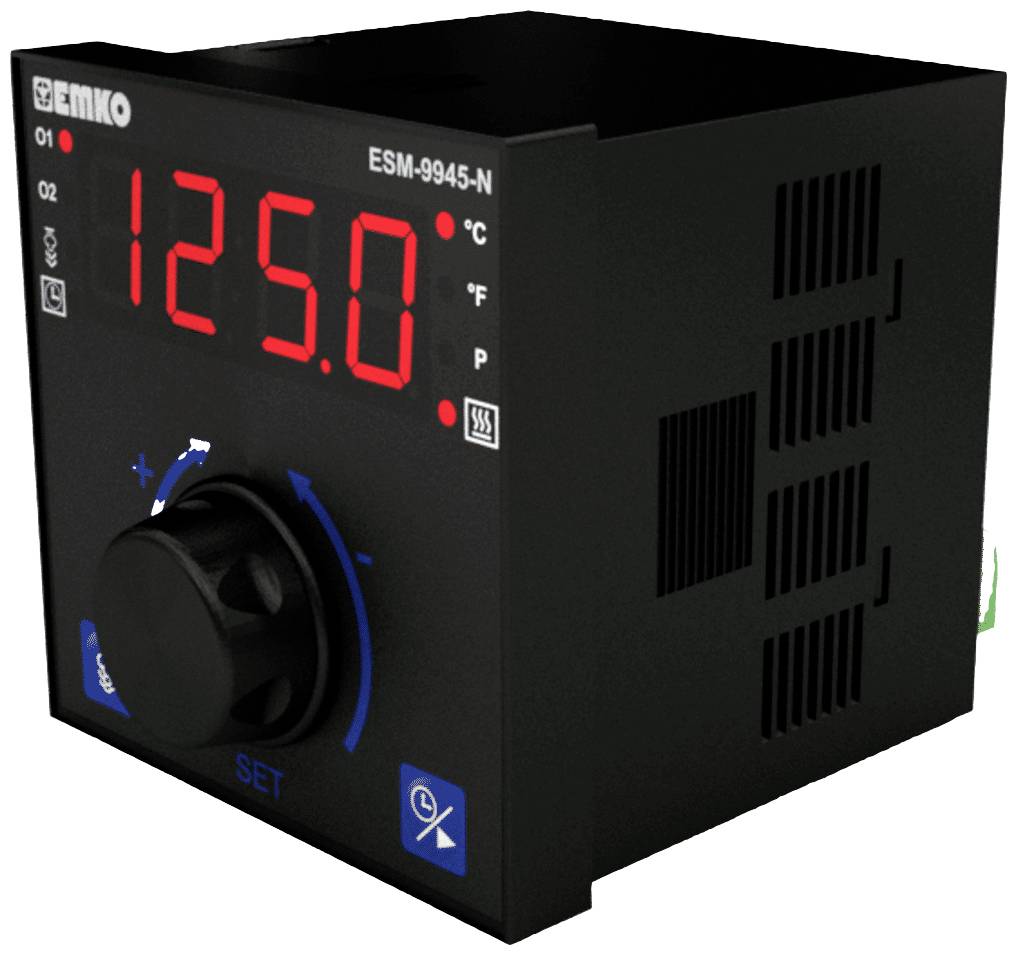

ESM-9945-N is a temperature controller with timer, buzzer and dial, which convinces through simple operation and good readability of the temperature display. In addition to setting the temperature setpoint, the rotary control also serves as a control center for making the settings. Press the rotary knob to open the menu and make the settings. With the universal sensor input for thermocouples and resistance thermometers almost all common sensor types can be connected. The connected sensor type is simply selected in the settings. The temperature controller with timer and buzzer is ideal for controlling the temperature in ovens, fermenting plants, ceramic and glass ovens, grain dryers and industrial deep-fat demonstarts. In addition, this controller has an additional relay output for controlling an evaporator.
