Emko EZM-4450.2.00.2.0/00.00/0.0.0.0 Preset counter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 121.84 / piece)
€ 121.84
plus VAT.
Only 1 Piece(s) available
Highlights & Details

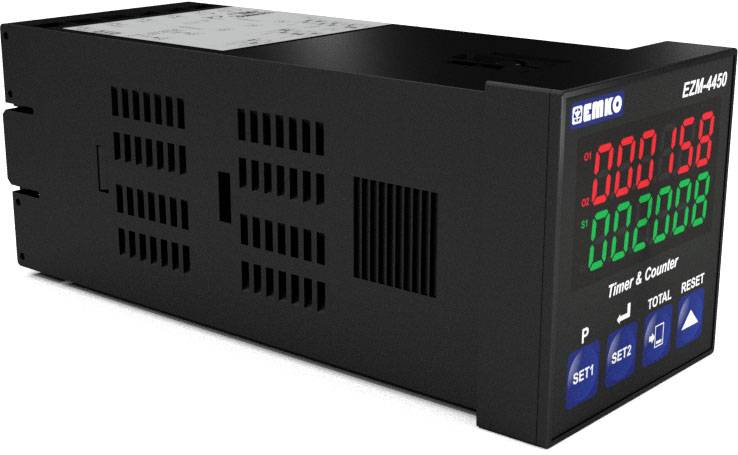

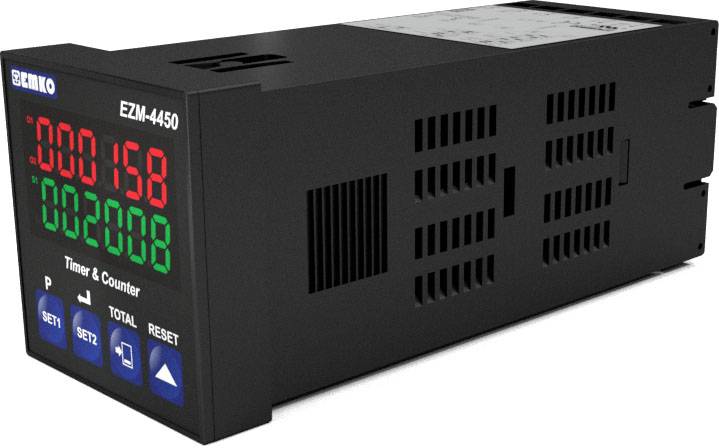

Emko Preset counter
- 6-digit actual value display
- 6-digit setpoint display
- 2 preset values
- Cha-CHB count input
- Reset and pause input
- NPN or PNP selectable
- Adjustable on pre-selection counter/totalizing counter, batch counter, timer, chronometer, frequency meter/tachometer
- Programmable time base for timer and chronometer (second, minute, hour)
- Automatic or manual reset
- INC,DEC,INC/INC,INC/DEC,UP/DOWN, x1 / x2 / x4 Phase shift count selection
- Multiplication factor and selectable decimal point position
- Various alarm functions for frequency measurement and cycle measurement functions
- Total quantity and partial quantity recording for pre-selection counter/totalizing counter
- Communication interface
- 2 slots for EMO-400 series output expansion modules
Technical specifications
- Product type
Preset counter
- Reading type
Frequency
Speed
Pulse
- Type
EZM-4450.2.00.2.0/00.00/0.0.0.0
- Display technology
LED
Front: IP65 / connection: IP20
- Recess width
48 mm
- Display (counts)
999999
- Recess height
48 mm
- Operating voltage
24 V DC/AC
- Dim
(L x W x H) 117 x 48 x 48 mm
- Weight
210 g
- Recess depth
105 mm
- Factory colour
Black
- Width
48 mm
- Height
48 mm
- Length
117 mm
- Frame width
48 mm
- Frame height
4.8 cm
- Interfaces
1 x RS 485 Modbus RTU
Documents & Downloads
Datasheet
Datasheet 2352345 Emko EZM-4450.2.00.2.0/00.00/0.0.0.0 Preset counter
User & Safety Instructions
User & Safety Instructions 2352345 Emko EZM-4450.2.00.2.0/00.00/0.0.0.0 Preset counter
Description
EZM-4450 is a timer and counter for packaging machines, production and quality control as well as for cutting and processing machines. The counter can be set to preset/totalizing counter, batch counter, timer, chronometer or frequency meter/tachometer. The counter can be easily adapted to mechanical and automation systems. In the basic version, the counter has a communication interface. The counter can be expanded with output modules via two slots. The EMO-400 output modules are available in relay output, SSR output and transistor output versions.
