Name: Emko EZM-4950.1.00.2.0/01.01/0.0.0.0 Preset counter
Brand: Emko
SKU: 128907

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

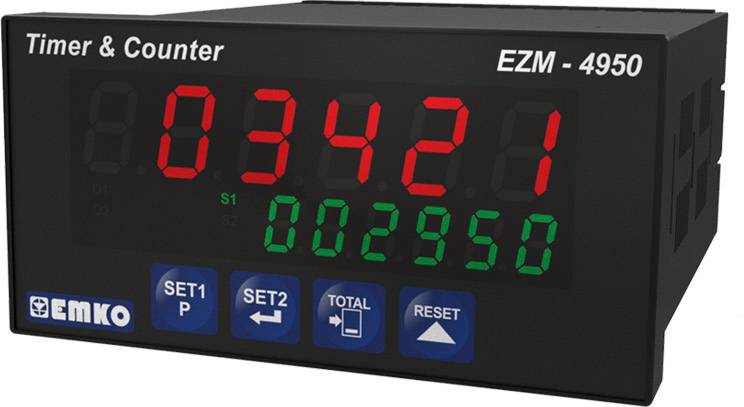

Digital display 'Timer & Counter' shows 03421 in red at the top and 002950 in green at the bottom. On the left are buttons 'SET1', 'SET2' and 'RESET'.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

6-digit actual value display
6-digit setpoint display
2 preset values
Cha-CHB count input
Reset and pause input
NPN or PNP selectable
Adjustable on pre-selection counter/totalizing counter, batch counter, timer, chronometer, frequency meter/tachometer
Programmable time base for timer and chronometer (second, minute, hour)
Automatic or manual reset
INC,DEC,INC/INC,INC/DEC,UP/DOWN, x1 / x2 / x4 Phase shift count selection
Multiplication factor and selectable decimal point position
Various alarm functions for frequency measurement and cycle measurement functions
Total quantity and partial quantity recording for pre-selection counter/totalizing counter
Communication interface
2 slots for EMO-400 series output expansion modules

Technical specifications

Product type: Preset counter

Reading type: Frequency
Speed
Pulse

Reading range (min.): 0 Hz

Type: EZM-4950.1.00.2.0/01.01/0.0.0.0

Reading range (max.): 6000 Hz

Display technology: LED

: IP65 (on front)/IP20 (on back)

Recess width: 92 mm

Display (counts): 999999

Recess height: 46 mm

Operating voltage: 115 V AC
230 V AC

Dim: (L x W x H) 87 x 96 x 48 mm

Weight: 210 g

Max. operating voltage: 230 V AC

Min. operating voltage: 115 V AC

Display lighting: red
green

Factory colour: Black

Width: 96 mm

Height: 48 mm

Length: 87 mm

Frame width: 96 mm

Frame height: 0.48 cm

Interfaces: RS485

Interfaces: RS485

Documents & Downloads

Datasheet

Datasheet 128907 Emko EZM-4950.1.00.2.0/01.01/0.0.0.0 Preset counter

User & Safety Instructions

User & Safety Instructions 128907 Emko EZM-4950.1.00.2.0/01.01/0.0.0.0 Preset counter

Description

Emko EZM-4950 is a timer and counter for packaging machines, production and quality control as well as for cutting and processing machines. The counter can be set to preset/totalizing counter, batch counter, timer, chronometer or frequency meter/tachometer. The counter can be easily adapted to mechanical and automation systems. In the basic version, the counter has a communication interface. The counter can be expanded with output modules via two slots. The EMO-400 output modules are available in relay output, SSR output and transistor output versions.
