Digital counter by EMKO, model EZM-9930, displays value '83421' in red and '002850' in green with control buttons underneath.

Digital counter by EMKO, model EZM-9930, displays value '83421' in red and '002850' in green with control buttons underneath.

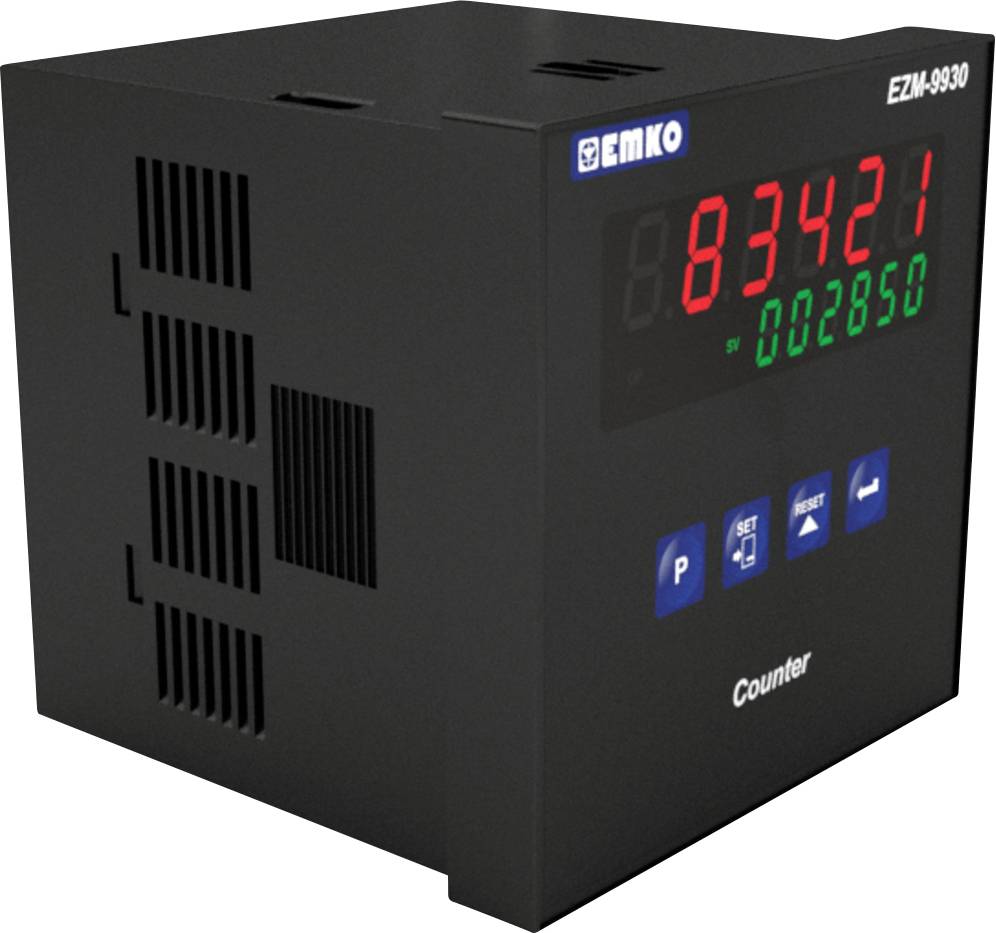

A black electronic counter displays the numbers '83421' in red and '02850' in green. Several control buttons are located on the display.

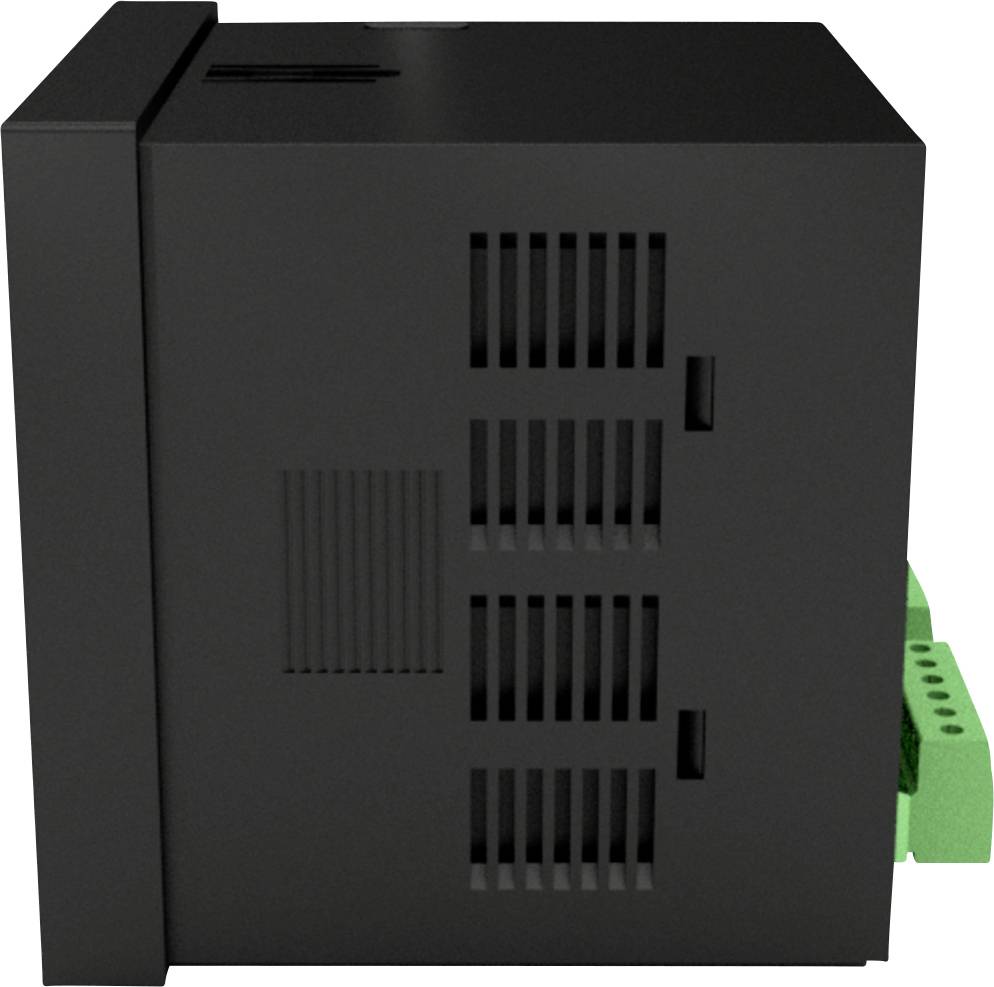

Black technical device with ventilation slots on the side and a green connector at the back. Possibly an electronic module.

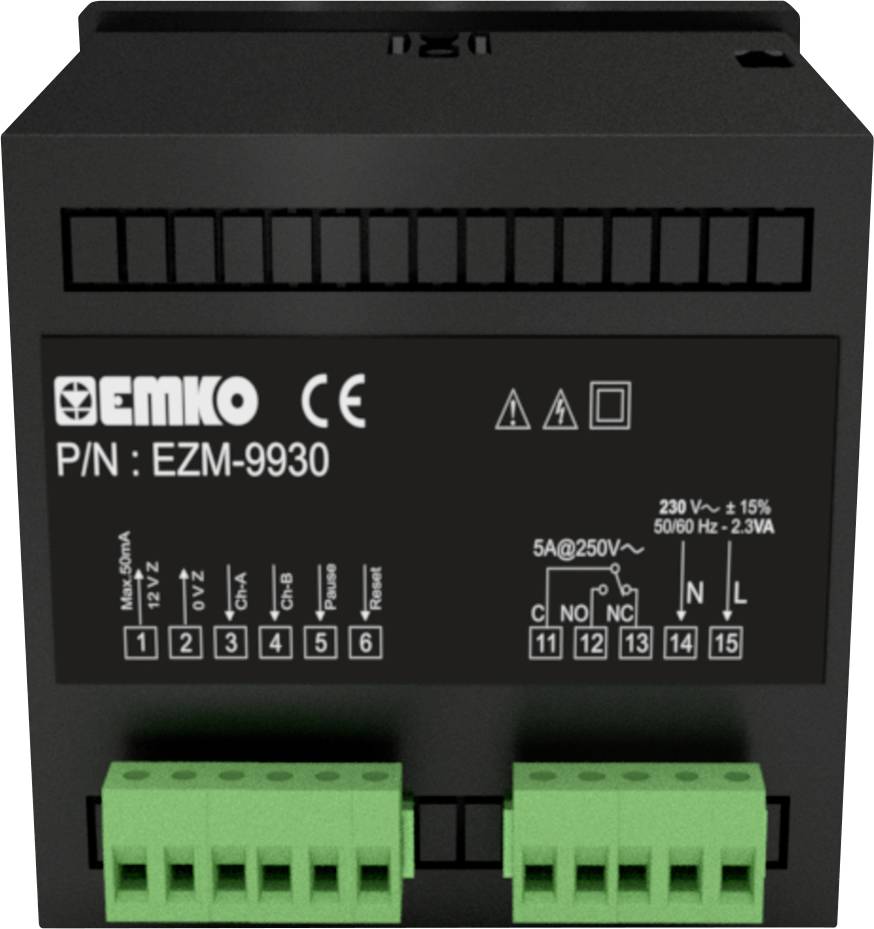

Black electronic device with green connection terminals, labelled 'EMKO P/N: EZM-9930'. Voltage: 230 V AC, Current: 5A@250V.

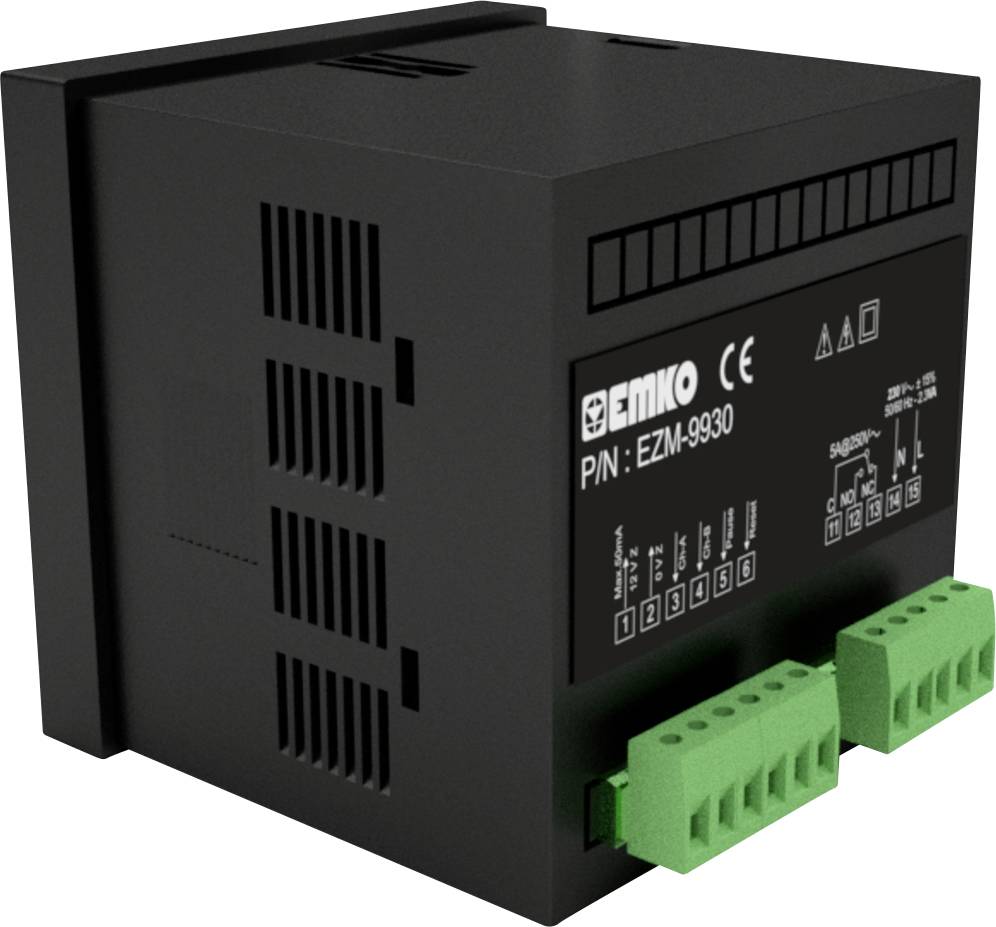

Black switched-mode power supply by Emko, model EZM-9930, with green connection terminals and technical specifications printed on it.

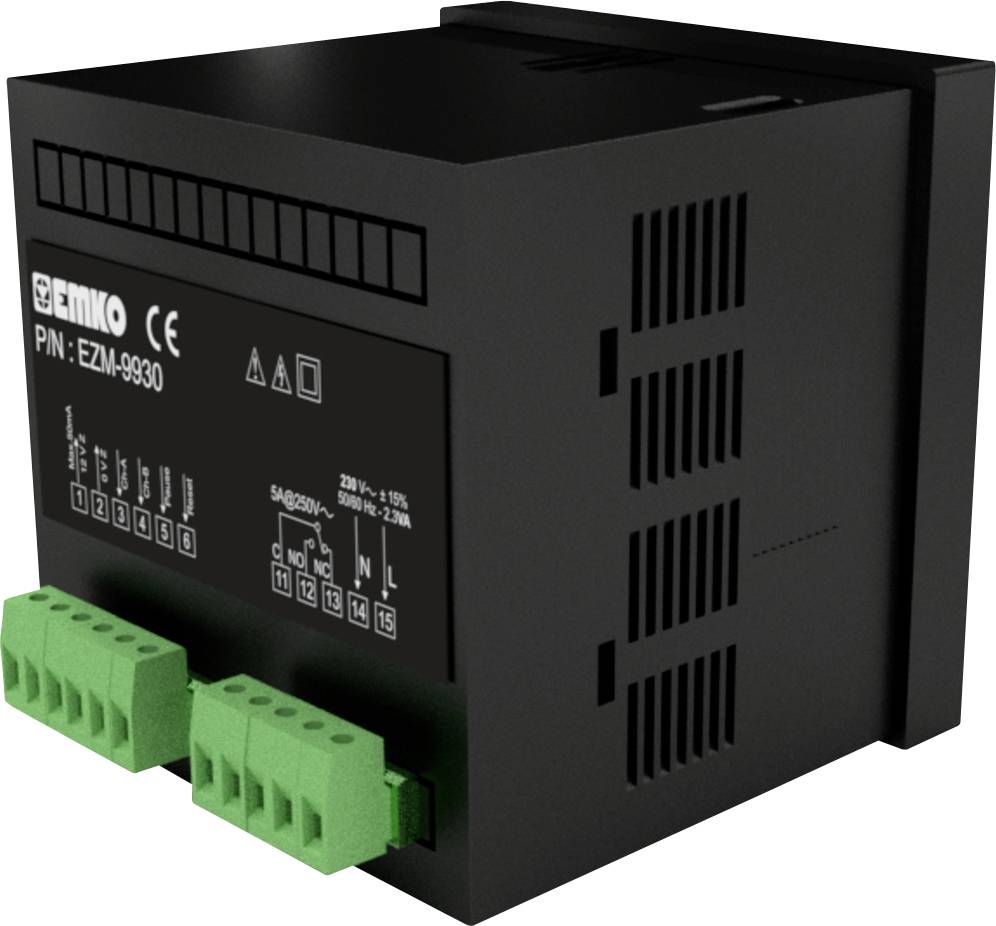

Black electronic device with green terminal block. Label shows 'Emko' and model number 'EZM-9930'. Device for electrical installations.

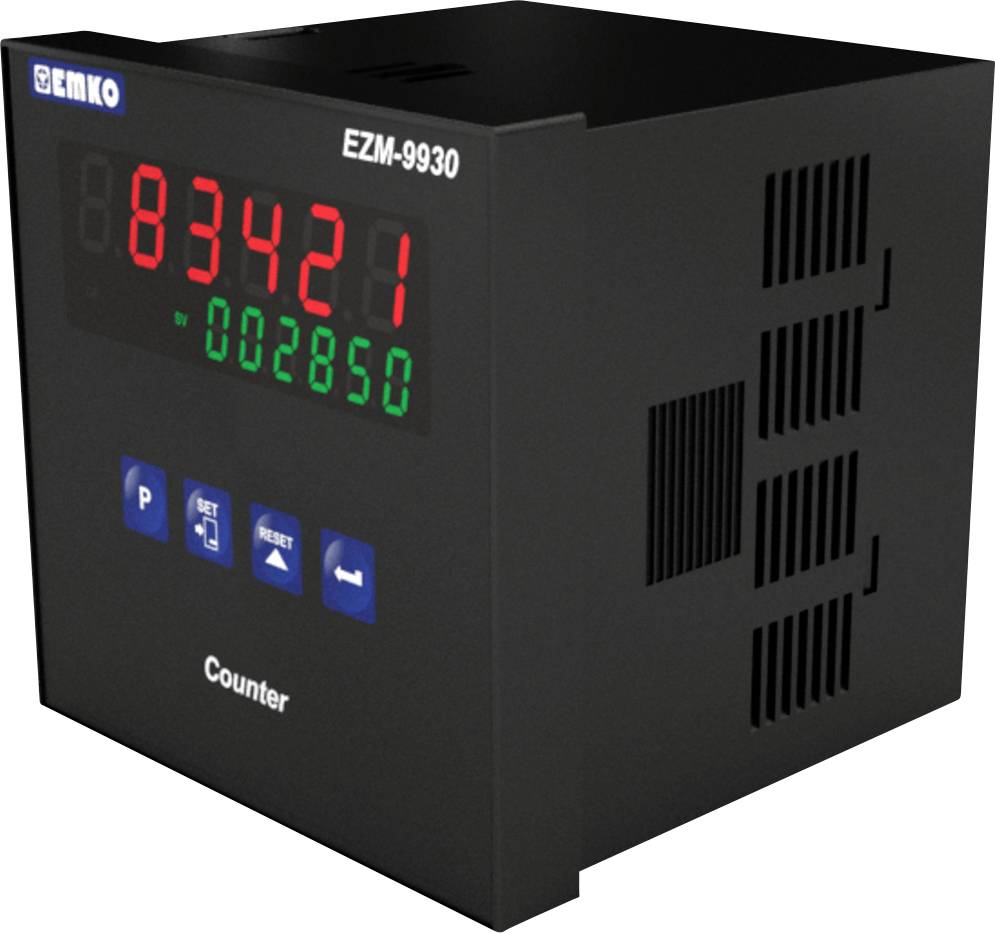

Digital counter 'EZM-9930' by Emko with red display '83421' and green display '002850', configuration buttons at the front.

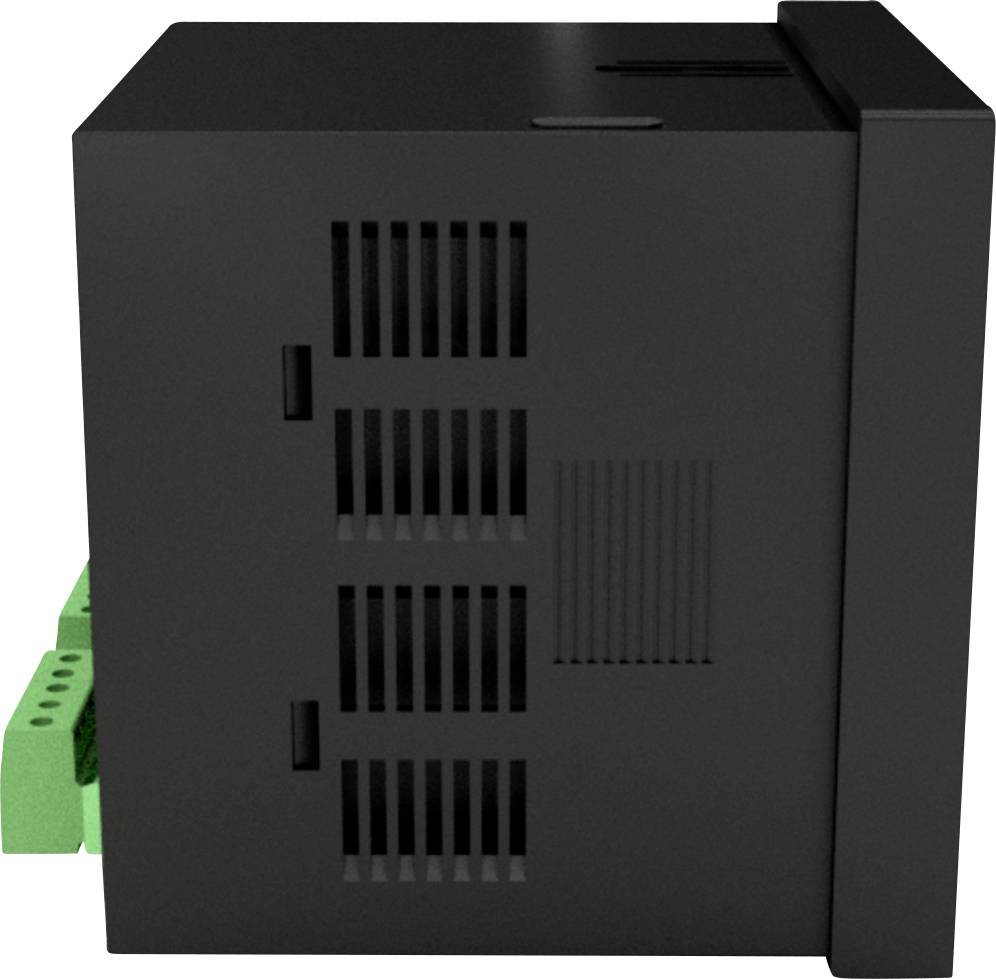

Black rectangular device with ventilation slots on the side; green connectors protruding on the left.

1/8

Emko

Datasheet (PDF)

English

Fast track dispatch on Fri, 25 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 117.64 / piece)

€ 117.64

plus VAT.

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: Preset counter

Reading type: Pulse

Type: EZM-9930.2.00.0.1/00.00/0.0.0.0

Display technology: LED

: Front: IP65 / connection: IP20

Recess width: 96 mm

Display (counts): 6

Recess height: 96 mm

Operating voltage: 24 V DC/AC

Dim: (L x W x H) 96 x 96 x 96 mm

Weight: 340 g

Display lighting: red
green

Recess depth: 84 mm

Factory colour: Black

Width: 96 mm

Height: 96 mm

Length: 96 mm

Frame width: 9.6 cm

Frame height: 9.6 cm

Documents & Downloads

Datasheet

English

Datasheet 2352359 Emko EZM-9930.2.00.0.1/00.00/0.0.0.0 Preset counter

User & Safety Instructions

User & Safety Instructions 2352359 Emko EZM-9930.2.00.0.1/00.00/0.0.0.0 Preset counter

Description

The EZM-9930 multi-function counter is ideal for use in manufacturing processes. The multifunction counter counts up, down or up and down depending on the setting. The counter inputs A and B are suitable for the connection of switches, rotary encoders, capacitive sensors or proximity switches. With the integrated 12 V/DC output, sensors or rotary encoders can be supplied.

This text is machine translated.
