Emko Heating element TC-K03.J.KE.19X26 Sensor type J Temperature reading range-50 up to 400 °C Sensor diameter 19 mm
EAN:
Part number:
Item no:
Product type
Heating element
Temperature reading range
-50 up to 400 °C
Sensor type
J
Sensor diameter
19 mm
Type
TC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 28.56
15
4% = € 1.24
€ 27.32
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 28.56 / piece)
€ 28.56
plus VAT.
14-day return policy included
Highlights & Details

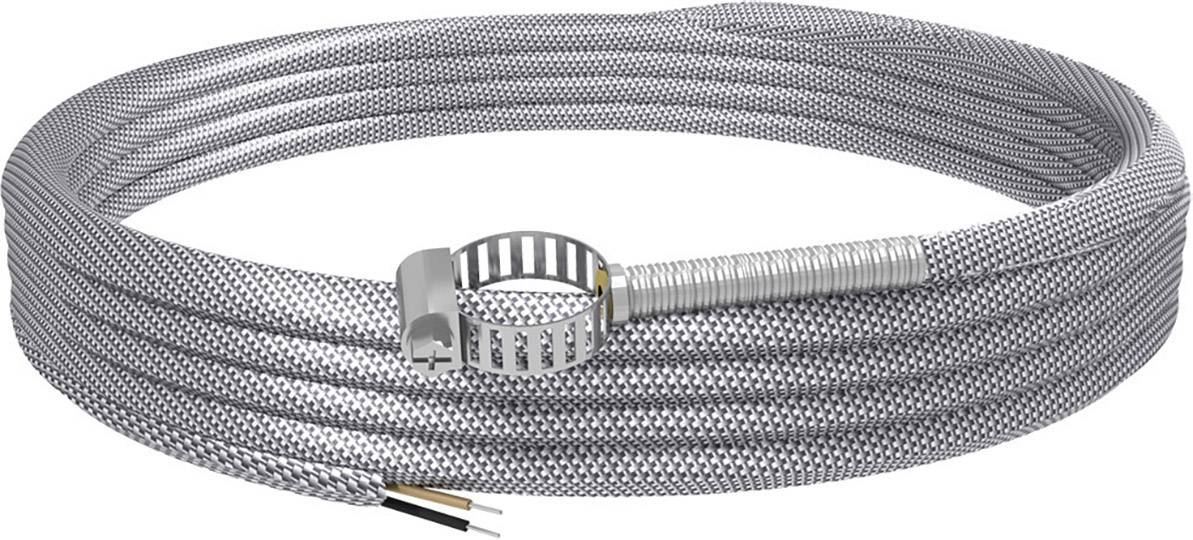

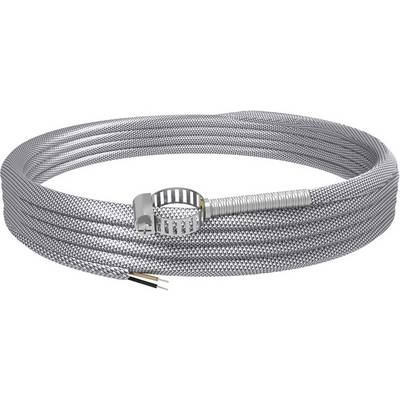

EMKO TC-K03.J.KE.19X26 Type J Thermocouple -50°C to +400°C with screw clamp and tension spring 2-conductor braided cable 3m
- Type J:
- Measurement range -50°C to +400°C.
- 2-wire connection
- Cable length 3 m
- Screw clamp and tension spring
Technical specifications
- Product type
Heating element
- Temperature reading range
-50 up to 400 °C
- Sensor type
J
- Sensor diameter
19 mm
- Type
TC
- Manufacturer part #
TC-K03.J.KE.19X26
- Probe length
26 mm
- Cable length
3.00 m
- Temperature reading range (max.)
400 °C
- Temperature reading range (min.)
-50 °C
Documents & Downloads
Datasheet
Datasheet 2102706 Emko Heating element TC-K03.J.KE.19X26 Sensor type J Temperature reading range-50 up to 400 °C Sensor diameter 19 mm
User & Safety Instructions
User & Safety Instructions 2102706 Emko Heating element TC-K03.J.KE.19X26 Sensor type J Temperature reading range-50 up to 400 °C Sensor diameter 19 mm
Description
EMKO TC-K03.J.KE.19X26 Pt100 measuring resistor with screw clamp and tension spring for measuring the temperature on surfaces. The temperature sensor is simply mounted on the surface to be measured.
