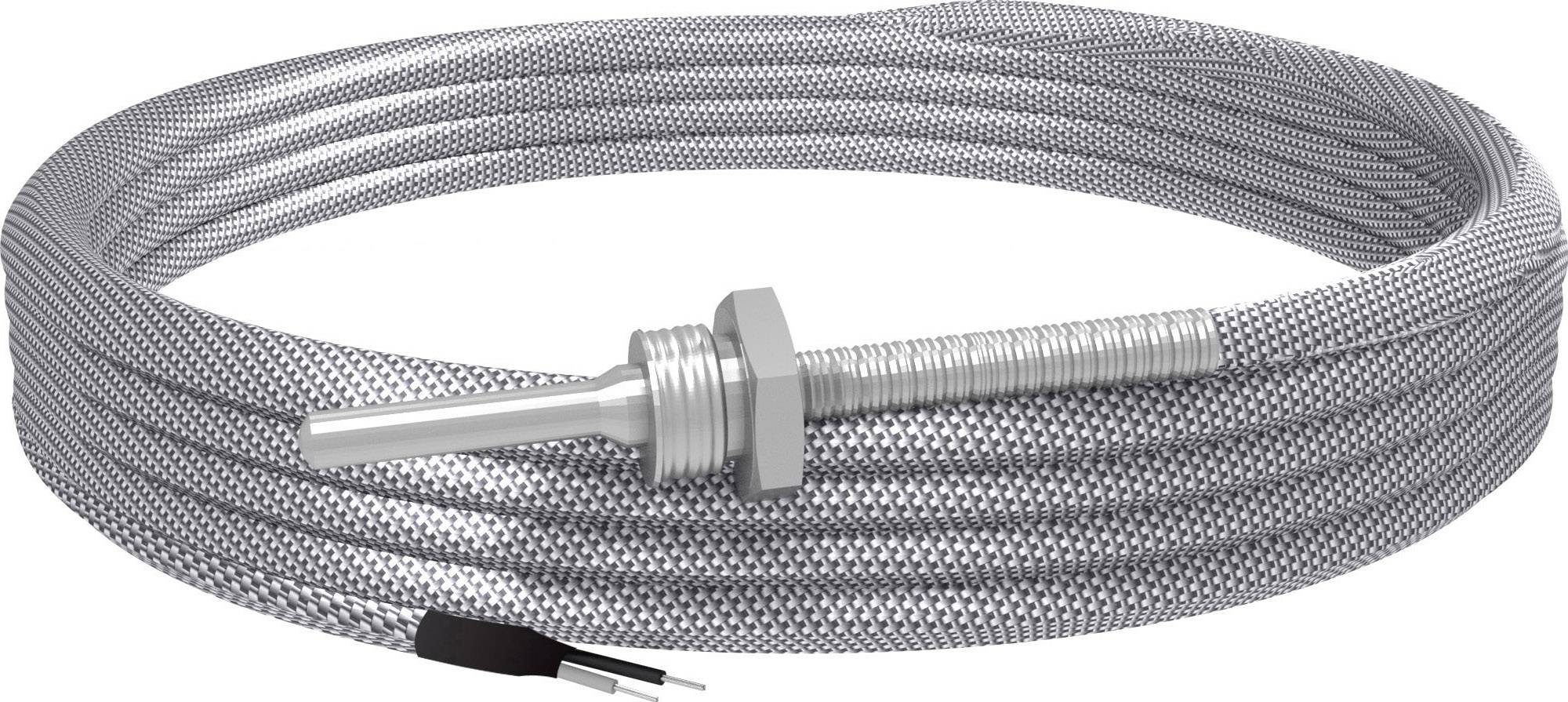

Emko Heating element TCR-M08-L050-K04-ISO Sensor type J Temperature reading range-50 up to +400 °C Cable length (details
Part number:
Item no:
Product type
Heating element
Temperature reading range
-50 up to +400 °C
Sensor type
J
Sensor
DIN/IEC type J -584
Type
TCR-M08-L050-K04
Datasheet (PDF)
Highlights & Details
Type J thermo element TCR-M08-L050-K04
- Type J
- -50 to +400°C
- 8 mm Sensor Ø
- 50 mm sensor length
Technical specifications
- The sensor diameter 8 mm
- Product type
Heating element
- Temperature reading range
-50 up to +400 °C
- Sensor
DIN/IEC type J -584
- Sensor type
J
- Type
TCR-M08-L050-K04
- Manufacturer part #
TCR-M08-L050-K04-ISO
- Dim
(Ø x L) 8 mm x 50 mm
- Probe length
50 mm
- Temperature reading range (max.)
+400 °C
- Temperature reading range (min.)
-50 °C
- Length
50 mm
ISO standards
- (Ø)
8 mm
- Cable length
4 m
Documents & Downloads
Datasheet
Datasheet 1412818 Emko Heating element TCR-M08-L050-K04-ISO Sensor type J Temperature reading range-50 up to +400 °C Cable length (details
Datasheet 1412818 Emko Heating element TCR-M08-L050-K04-ISO Sensor type J Temperature reading range-50 up to +400 °C Cable length (details
Information
Information 1412818 Emko Heating element TCR-M08-L050-K04-ISO Sensor type J Temperature reading range-50 up to +400 °C Cable length (details
Information 1412818 Emko Heating element TCR-M08-L050-K04-ISO Sensor type J Temperature reading range-50 up to +400 °C Cable length (details
Description
The thermocouple TCR converts by thermal electricity heat into electrical energy. It is a component made of two different metals, which at one end are connected to each other. A temperature difference generated by the heat flow an electrical voltage.
