Emko Surface sensor RT-M05X05-L030-K02.R Sensor type Pt100 Temperature reading range-50 up to 400 °C Sensor diameter 30
EAN:
Part number:
Item no:
Product type
Surface sensor
Temperature reading range
-50 up to 400 °C
Sensor type
Pt100
Sensor
DIN/EN60751 class "B" 1xPt100
Sensor diameter
30 mm
Datasheet (PDF)
Number
Total (€ 33.61 / piece)
€ 33.61
plus VAT.
Only 9 Piece(s) available
Highlights & Details

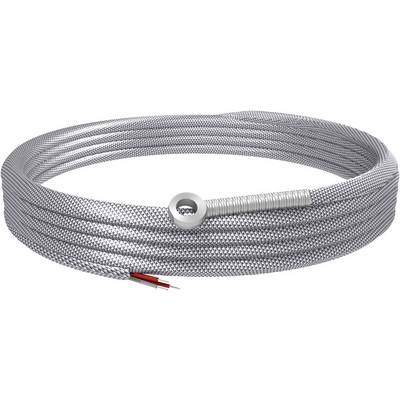

EMKO RT-M05X05-L030-K02 type Pt100 surface sensor -50°C to +400°C with tension spring 3-wire braided cable 2m
- Pt100
- Measurement range -50°C to +400°C.
- 3-cable connection
- DIN/EN60751 Class ""B"" 1xPt100
- Cable length 2 m
- Tension spring
Technical specifications
- Product type
Surface sensor
- Temperature reading range
-50 up to 400 °C
- Sensor
DIN/EN60751 class "B" 1xPt100
- Sensor type
Pt100
- Sensor diameter
30 mm
- Type
RT
- Manufacturer part #
RT-M05X05-L030-K02.R
- Cable length
2.00 m
- Material
Brass
- Temperature reading range (max.)
400 °C
- Temperature reading range (min.)
-50 °C
- Width
30 mm
Documents & Downloads
Datasheet
Datasheet 2102656 Emko Surface sensor RT-M05X05-L030-K02.R Sensor type Pt100 Temperature reading range-50 up to 400 °C Sensor diameter 30
Datasheet 2102656 Emko Surface sensor RT-M05X05-L030-K02.R Sensor type Pt100 Temperature reading range-50 up to 400 °C Sensor diameter 30
Description
EMKO RT-M05X05-L030-K02 Pt100 measuring resistor with tension spring for measuring the temperature on surfaces. The temperature sensor is simply mounted on the surface to be measured.
