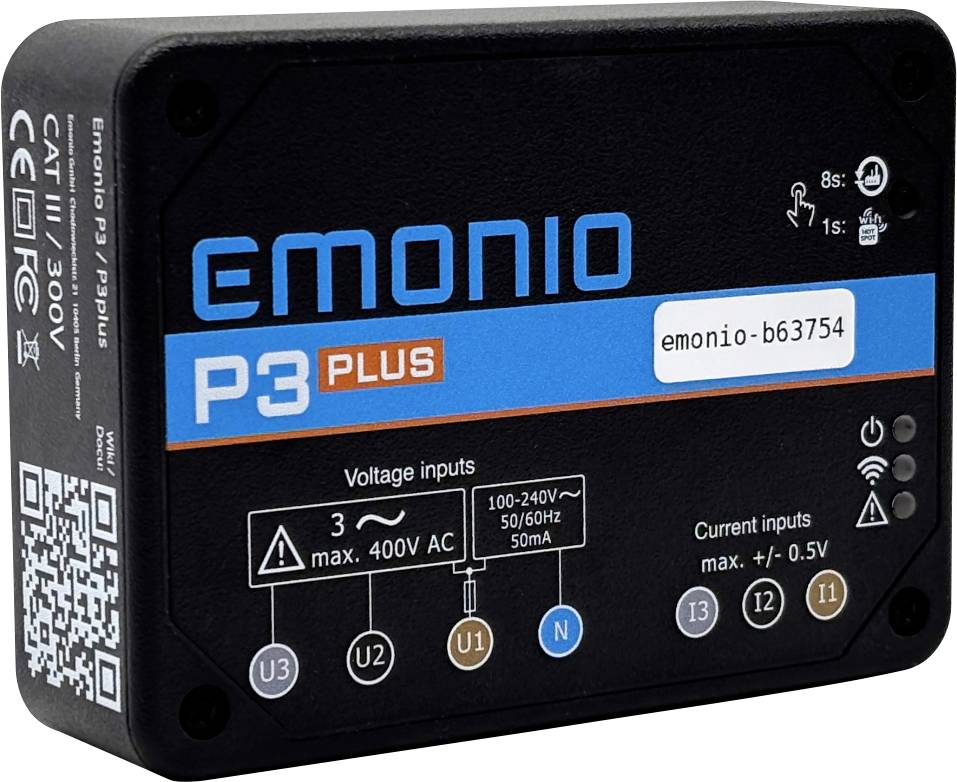

Device titled 'EMONIO P3 PLUS' with model number emonio-b63754. Displays voltage input specifications and connection ports on the front panel.

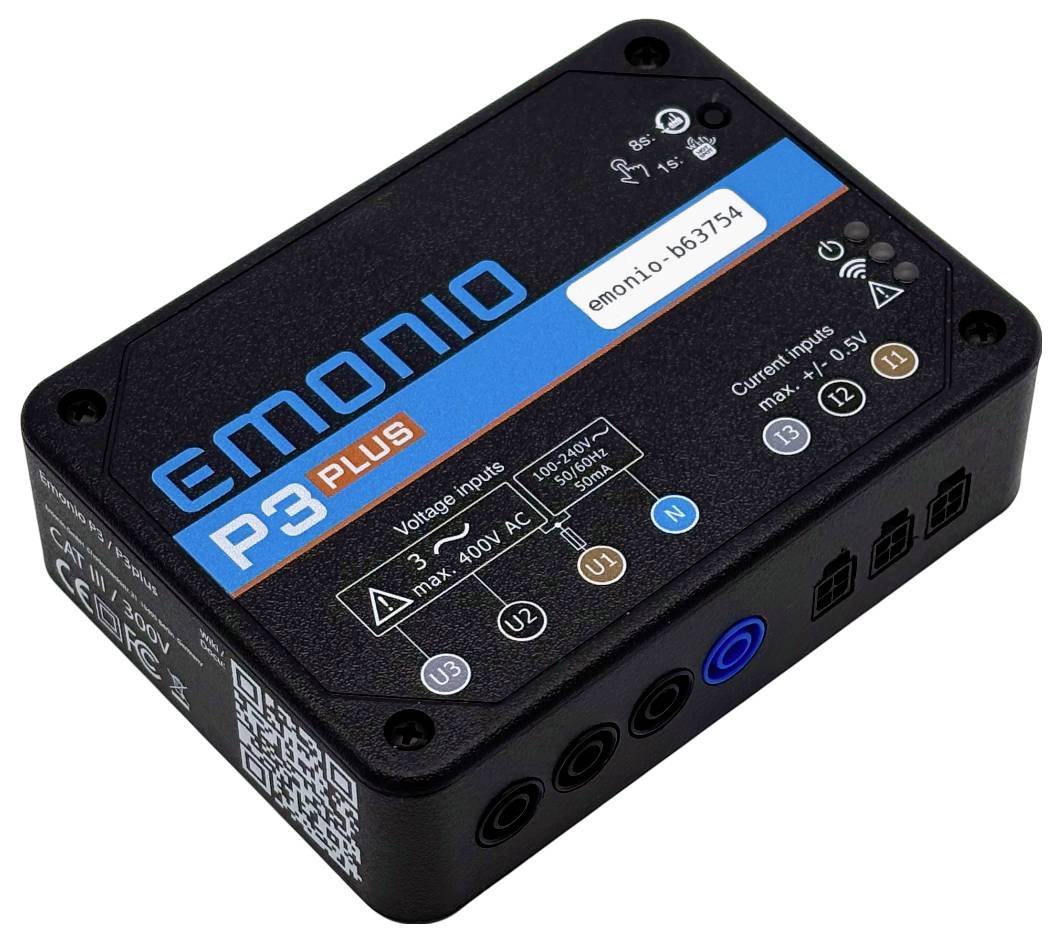

Electronic device labeled 'emonio P3 Plus', featuring voltage and current input details, model number 'emonio-0637514', and multiple connectors.

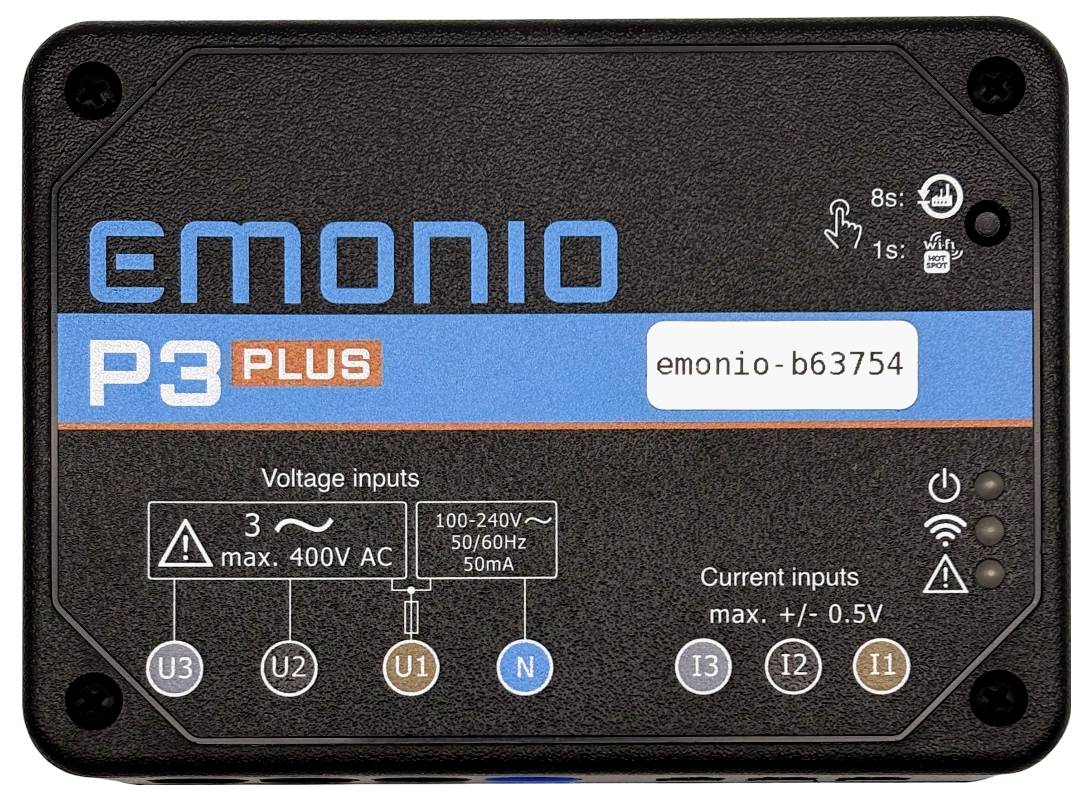

The image shows an EMONIO P3 Plus device for measuring voltage and current inputs, displaying its model 'emonio-b63754' and input specifications.

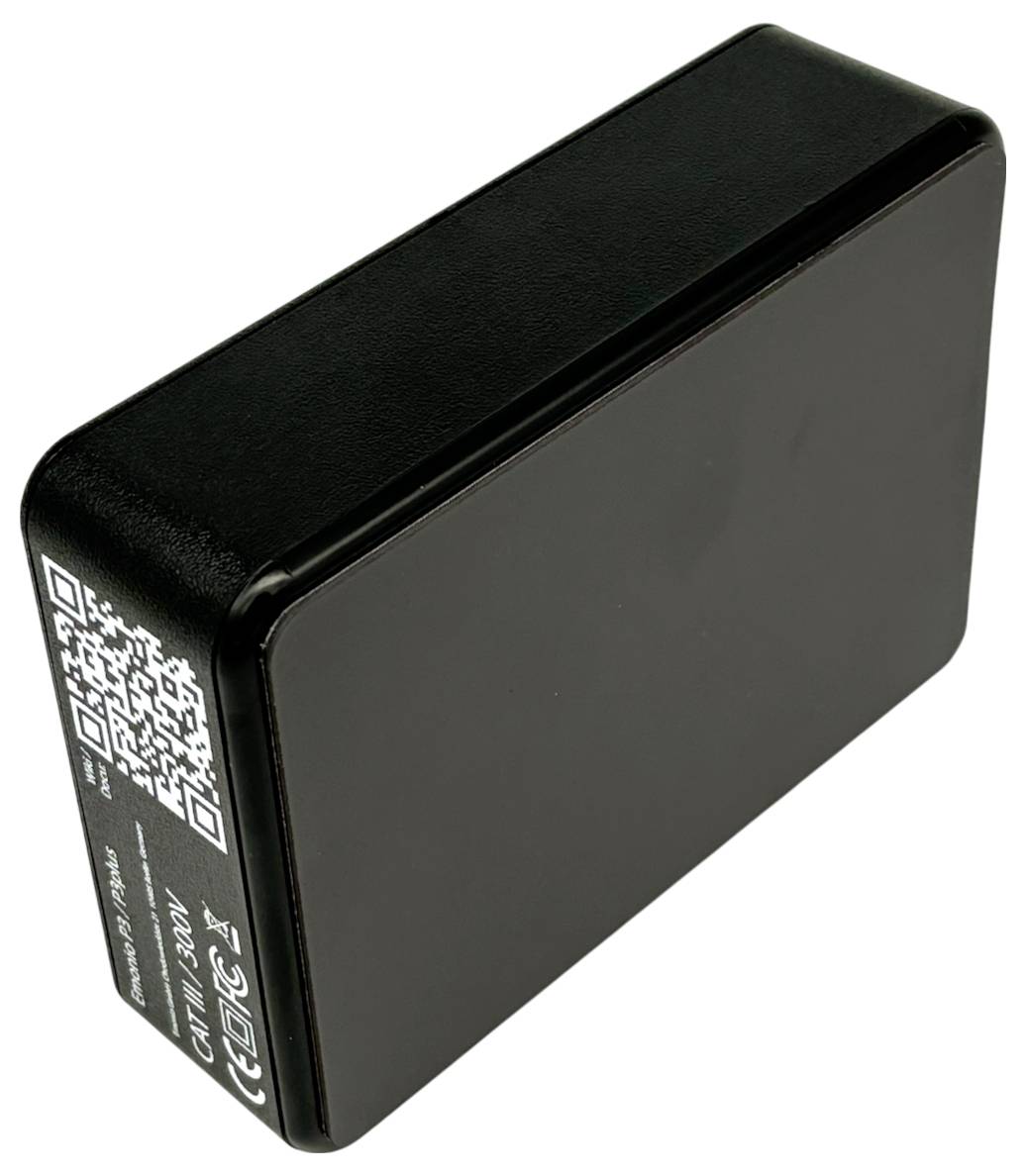

'A black rectangular electronic device with a QR code and specifications on one side.'

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Emonio P3plus (basis) Energy consumption meter

Emonio

Technical specifications

Power supply: Via test leads N and U1 and integrated power supply
Operating voltage 100-240V ±10%, 50Hz/60Hz (between neutral and U1)
Fuse: Hollywood 6FF-0250H1: 6x32mm, 250mA FF, 1000V, Ik=100kA
3+1 voltage inputs, 3 current inputs
Sampling rate 32,000 samples/s
VOLTAGE INPUT LEVEL: 230V: N <=> U1, 400V: U1 <=> U2 = <> U3
Level current inputs: Max. ±0.5Vpp
Measurement uncertainty: ± 1% for U, I, P, S, L and Q, all devices are calibrated and are being used
Shipped with dated initial certificate.
Power quality
Measurements: IEC 61000-4-30 Class S, IEC 61000-4-7 harmonic analysis,
Total harmonic distortion, power factor, IEC 62053-21
AND IEC 62053-22; EN50470-3; OIML R46; AND ANSI C12.20
Supports reactive power standards: IEC 62053-23, IEC 62053-24
Telemetry data buffer: Fully automatic up to 1 year in the event of an Internet connection failure
Data storage: 32 GB data storage on integrated SDHC card, suffices up to two
Years for a second record
Current consumption (max., typical): 50mA / 15mA
Communication: WiFi: 802.11 b/g/n/e/i (802.11n @ 2.4 GHz up to 150 Mbit/s or
BT: V4.2 BR/EDR and BT Low Energy (BLE)
Security: IEEE 802.11 with all standards, incl. WFA, WPA/WPA2/WPA2-Enterprise and WAPI, TLS 1.2
Firmware update: OTA (via network) / manual transmission with browser
WiFi modes: Station/SoftAP/SoftAP+station/P2P
ENCRYPTION: AES/RSA/ECC/SHA
Network protocols: MQTT, Modbus/TCP, DHCP, HTTP, NTP, SMTP, FTP, Telnet
Display: 3 status LEDs
Operating conditions: -5ºC to 40ºC, max. 80% RH, 2000m max. Height
Measuring category CAT III / 300V (according to EN61010-2-030)
Overvoltage category: OVC III (according to EN61010-1)
IP class IP20
Mounting: Via magnetic rear side or DIN rail mounting kit
Weight 237g
Dimensions in mm (WxHxD): 116.0 x 84.5 x 35.40 mm
