Buy encitech D45ZK09HI-K 6560-0706-11 D-SUB housing Number of pins: 9 Solid metal 45 ° Silver 1 pc(s)

Metal plug connector housing, rectangular shape, with two visible screws, possibly used for electrical connection.

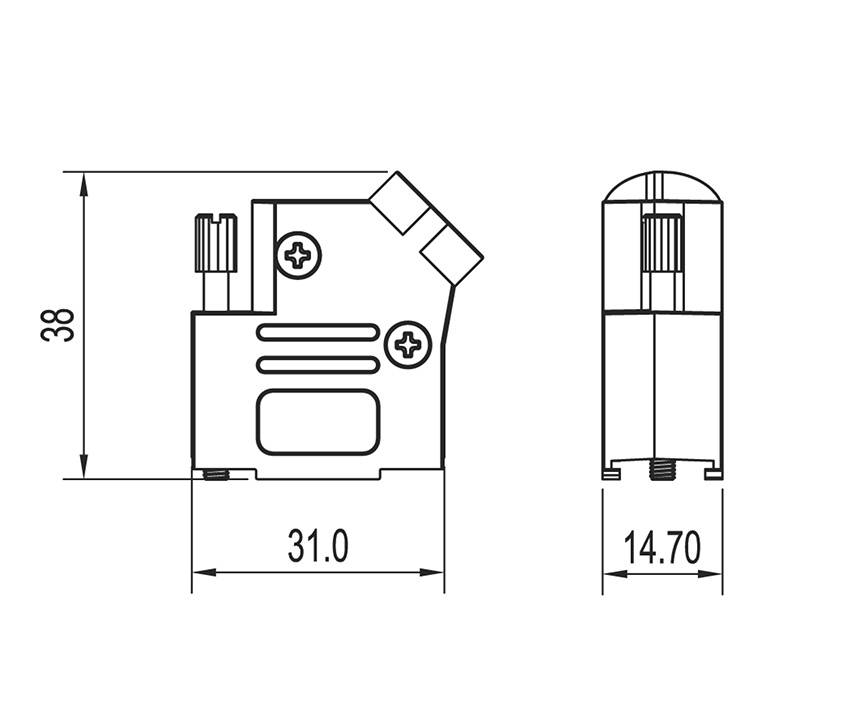

Technical drawing of a small device with two views: one showing a width of 31.0 mm and height of 38 mm, the other showing a depth of 14.7 mm.

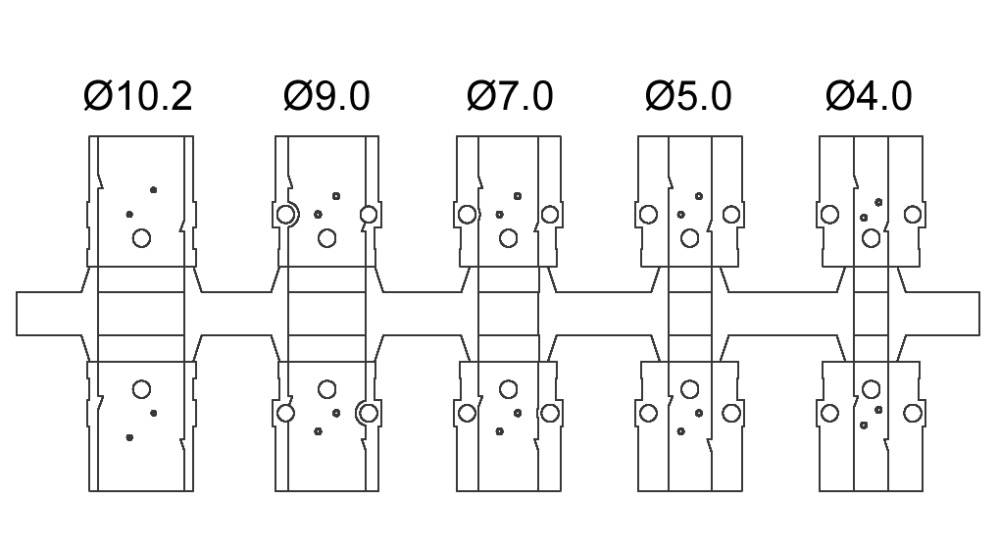

'Illustration of a mechanical assembly: Five stepped elements with decreasing bore diameters ranging from 10.2 to 4.0 millimetres.'

1/3

Product type

D-SUB housing

Number of pins

Case material

Solid metal

Cable outlets

Connection angle

45 °

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 3.61 / piece)

€ 3.61

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

733190.D-SUB Case D45ZK

Number of pins: 9
Solid metal

Technical specifications

Product type: D-SUB housing

Number of pins: 9

Case material: Solid metal

Cable outlets: 1

Factory colour: Silver

Connection angle: 45°

Content: 1 pc(s)

Shielded: Yes

Manufacturer part #: 6560-0706-11

Industrial packaging: No

Cable Ø range

Width: 15 mm

Height: 39.5 mm

Length: 31 mm

RoHS-compliant

Features: Cable exit (lateral)
1x cable exit (lateral)
+ 4-40 knurl head screw

Temperature range: -40°C to +120 °C

Type: D45ZK09HI-K

Cable diameter (details): 11.50 mm
