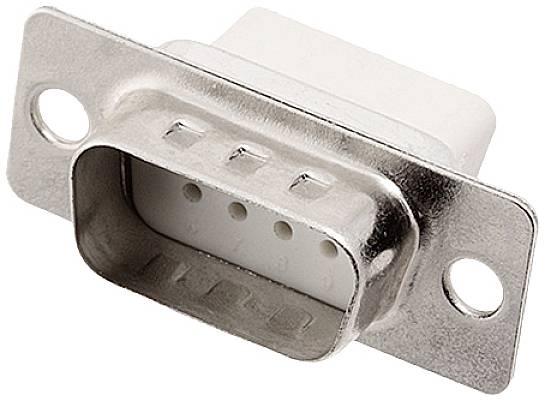

Rectangular metal-housed connector with five pin holes and two mounting holes on the sides.

Rectangular metal-housed connector with five pin holes and two mounting holes on the sides.

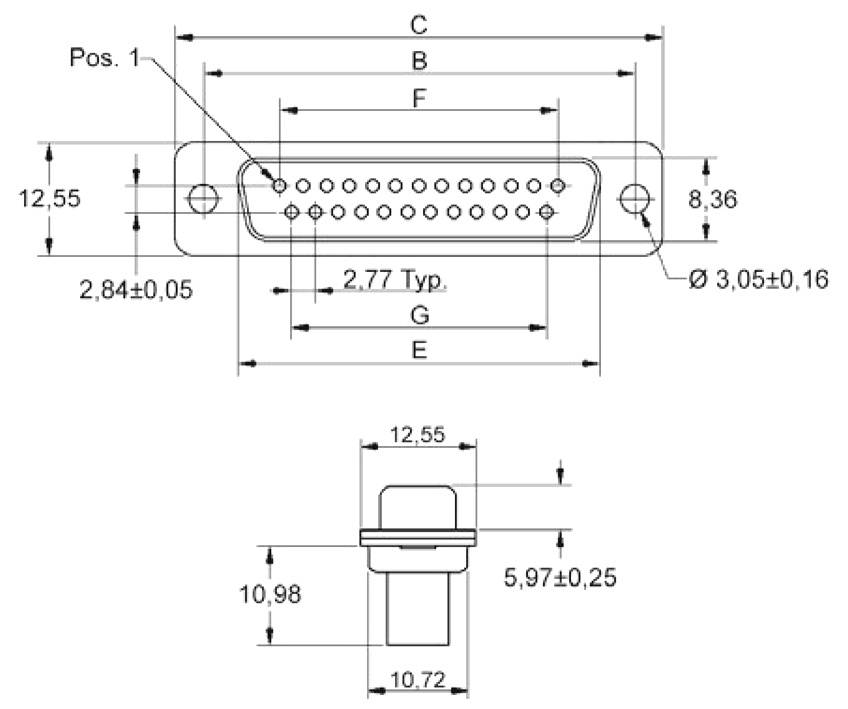

Technical drawing of a D-sub connector with dimensions. Top: Connection diagram with pin positions. Bottom: Side view with measurements.

1/2

Packaging type

Tray

Product type

D-SUB pin strip

Connector type

Pin strip, straight

Number of pins

9

Connection

Crimp

Datasheet (PDF)

English

encitech

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 0.68 / piece)

€ 3.40

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

D-Sub connector strip

D-SUB pin strip
No. of rows: 2
Number of pins: 9

Technical specifications

Packaging type: Tray

Product type: D-SUB pin strip

Connector type: Pin strip, straight

Number of pins: 9

Connection: Crimp

Connection angle: 180°

No. of rows: 2

Content: 1 pc(s)

Manufacturer part #: 2108-0190-01

Test voltage: 1000 V AC

Features: + clearance hole
+ dimples

Temperature range: -55 °C to 105 °C

Type: DBC09-SP-W

Documents & Downloads

Datasheet

English

Datasheet 1924898 encitech DBC09-SP-W 2108-0190-01 D-SUB pin strip 180 ° Number of pins: 9 Crimp 1 pc(s) Tray
