Buy encitech DPPK-M-09-K 6260-0105-01 D-SUB housing Number of pins: 9 Plastic, metallised 180 ° Silver 1 pc(s)

A silver, rectangular, angled D-sub connector housing with two side screws for attachment to a cable.

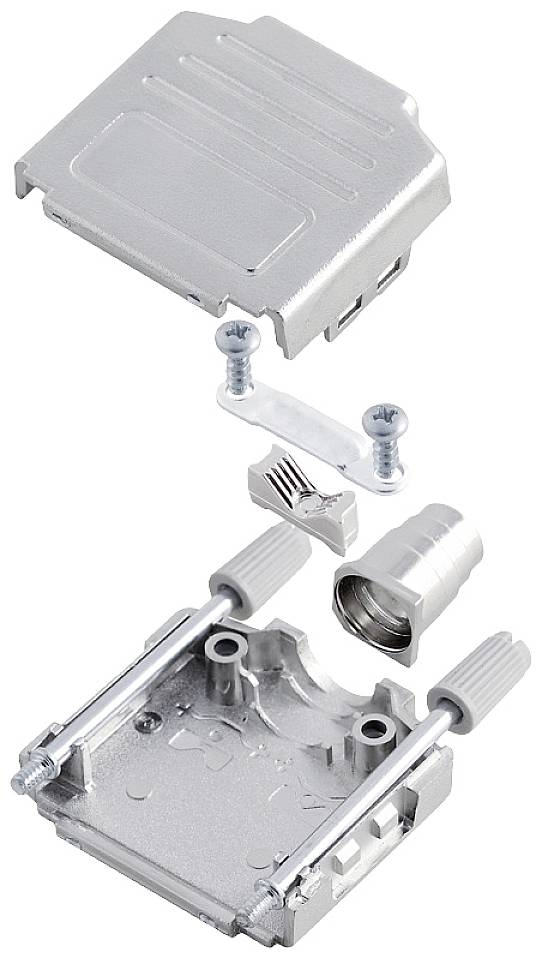

Exploded diagram of a D-Sub connector set. Showing upper housing, lower housing, cable retainer, screws, and plug.

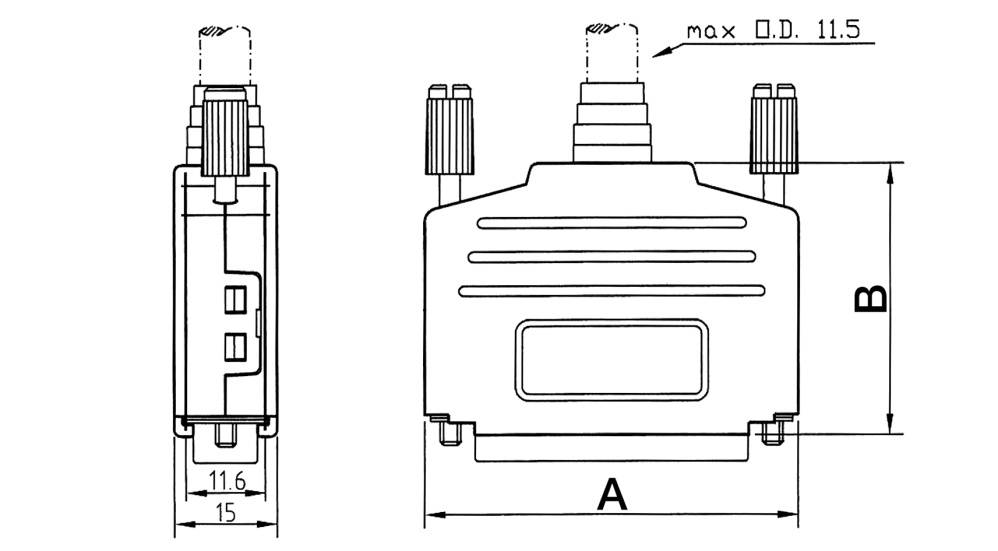

Technical drawing of a connector with dimensions: Width 'A', Height 'B', maximum cable diameter 11.5 mm, side view shows 11.6 mm width.

1/3

Product type

D-SUB housing

Number of pins

Case material

Plastic, metallised

Cable outlets

Connection angle

180 °

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

328 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 5.03 / piece)

€ 5.03

plus VAT.

Report legal concerns

Highlights & Details

Number of pins: 9
Plastic, metallised

Technical specifications

Product type: D-SUB housing

Number of pins: 9

Case material: Plastic, metallised

Cable outlets: 1

Factory colour: Silver

Connection angle: 180°

Content: 1 pc(s)

Manufacturer part #: 6260-0105-01

Industrial packaging: No

Width: 15 mm

Height: 38 mm

Length: 32.5 mm

Features: 1x cable entry (straight)
+ 4-40 knurl head screw

Temperature range: -55 °C - +110 °C

Type: DPPK-M-09-K

Cable diameter (details): 11.50 mm
