Buy encitech DRB-09F-TBG-110 2103-2100-11 D-SUB receptacles 90 ° Number of pins: 9 Solder pins 1 pc(s) Tray

A black, rectangular 9-pin Sub-D plug, commonly used for serial connections in electronics.

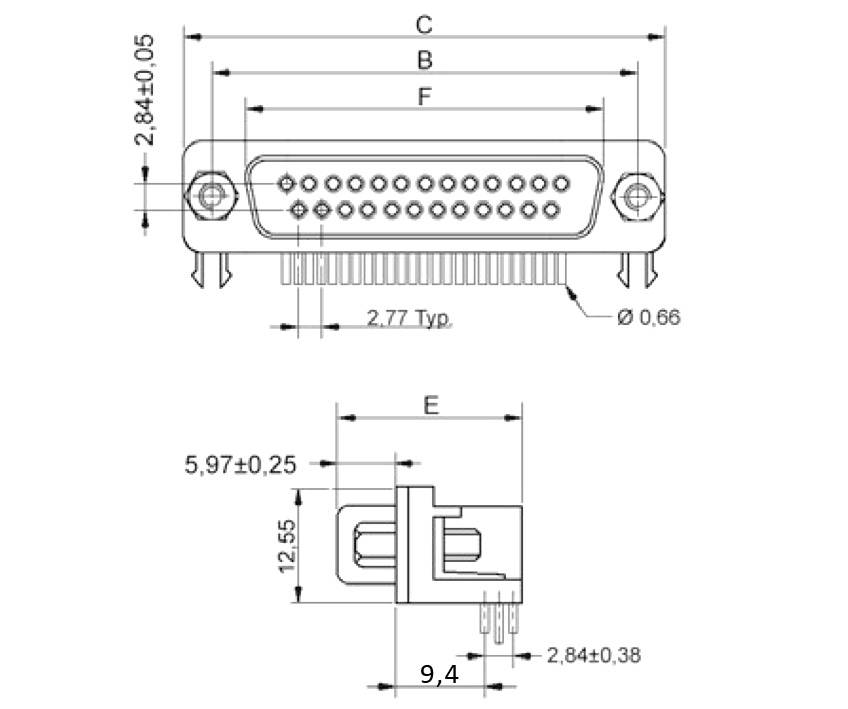

'Sketch of a connector with dimensional specifications in millimetres. Top view: Width C, B, F at 2.84±0.05; Side view: Height 5.97±0.25, Width E, Distance 12.55 vertical, 9.4 horizontal.'

1/2

Packaging type

Tray

Product type

D-SUB receptacles

Connector type

Power strip, right angle

Number of pins

Connection

Solder pins

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

34 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 0.61 / piece)

€ 0.61

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

D-Sub socket strip

D-SUB receptacles
No. of rows: 2
Number of pins: 9

Technical specifications

Threaded bolts UNC 4-40 front

Packaging type: Tray

Product type: D-SUB receptacles

Connector type: Power strip, right angle

Number of pins: 9

Connection: Solder pins

Connection angle: 90°

No. of rows: 2

Content: 1 pc(s)

Mating cycles: 100

Manufacturer part #: 2103-2100-11

Contact type: Punched contacts

Contact material: Copper alloy

Contact surface: Gold plated

Test voltage: 1000 V AC

Features: + screws

Temperature range: -55 °C to 105 °C

Type: DRB-09F-TBG-110

Documents & Downloads

Datasheet

Datasheet 1924797 encitech DRB-09F-TBG-110 2103-2100-11 D-SUB receptacles 90 ° Number of pins: 9 Solder pins 1 pc(s) Tray
