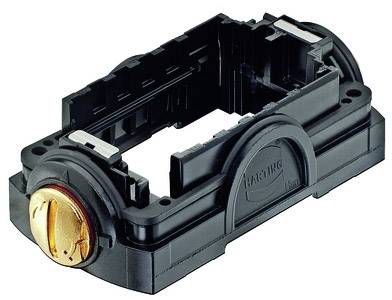

Enclosure 11136000110 11136000110 HARTING 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure
Series
Han® -Yellock® 60
Case material
Diecast zinc
Type
11136000110
Manufacturer part #
11136000110
Datasheet (PDF)
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
14-day return policy included
Technical specifications
- Locking type: Push button locking
- Locking material: Polyamide; stainless steel
- Surface Housing: Passivated
- Cable diameter: 3 mm to 14.5 mm
- Type
11136000110
- Product type
Enclosure
- Series
Han® -Yellock® 60
- Manufacturer part #
11136000110
- Features
+ seal
- Factory colour
Black
- Case material
Diecast zinc
- Connection
10 mm stud and socket
- Mating cycles
≥ 500
- Series
Han-Yellock®
- Content
1 pc(s)
- Terminal Ø (max.)
14.5 mm
- Clamp Ø
3 mm
IP65
IP67
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1990676 Enclosure 11136000110 11136000110 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1990676 Enclosure 11136000110 11136000110 HARTING 1 pc(s)
