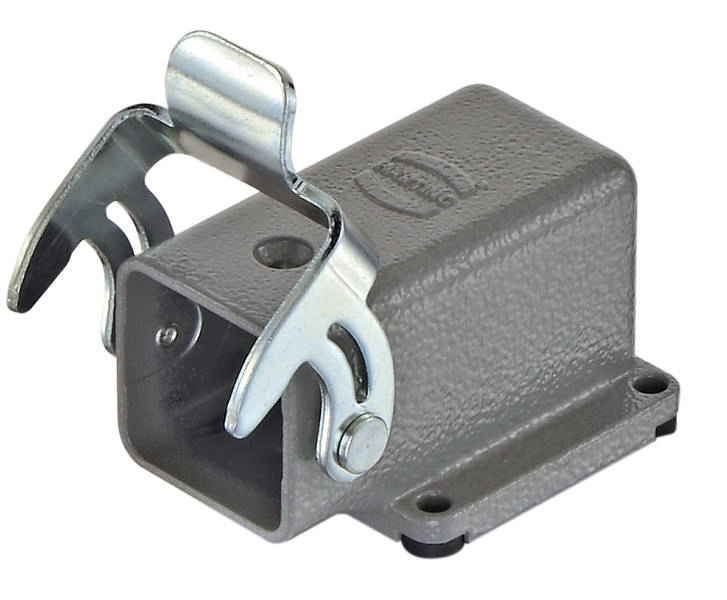

Enclosure extension 09 20 003 0811 09200030811 HARTING 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure extension
Series
Han® A
Case material
Diecast zinc
Type
09 20 003 0811
Manufacturer part #
09200030811
Datasheet (PDF)
Technical specifications
- Lock type: Longitudinal handle
- Temperature limit: -40 ... +125 °C
- Net weight: 85 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Application area: Standard casing for industrial applications
- Material locking: Steel
- Protection class according to IEC 60529: IP44;IP65 with sealing screw;IP67 with sealing screw
- Housing description: Angled;4 mounting screws; square flange dimension
- Design size 3 A
- Approvals DNV GL
- Casing type: Attachment casing
- Housing series: HAN A®
- Material housing: Zinc-Druckguss
- Surface of housing: Powder-coated
- Colour of housing: RAL 7037 (dust gray)
- Material sealing: NBR
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Protection class according to UL 50 / UL 50E: 12
- Surface locking: Galvanised
- Type
09 20 003 0811
- Product type
Enclosure extension
- Series
Han® A
- Manufacturer part #
09200030811
- Features
Longitudinal brace
- Case material
Diecast zinc
- Series
Han A®
- Content
1 pc(s)
IP44
IP65
IP67
- Max. temperature
+125 °C
- Min. temperature
-40 °C
FALSE
FALSE
Grey
Single locking lever
FALSE
FALSE
Zinc
Powder coating
-40-125 °C
Other
FALSE
TRUE
Housing extension
IP44
Other
Base unit
None
Documents & Downloads
Datasheet
Datasheet 3001525 Enclosure extension 09 20 003 0811 09200030811 HARTING 1 pc(s)
Datasheet 3001525 Enclosure extension 09 20 003 0811 09200030811 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3001525 Enclosure extension 09 20 003 0811 09200030811 HARTING 1 pc(s)
Description
Mounting case, angled, 4 mounting screws, square flange dimension, size: 3 A, Longitudinal brace, steel, material Housing: zinc die casting
