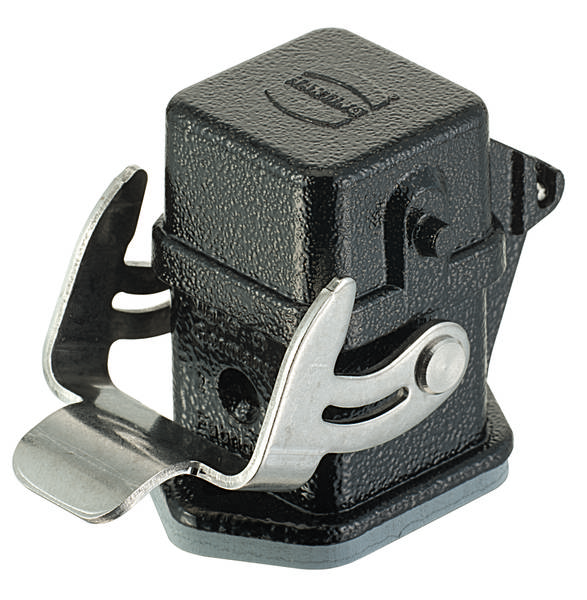

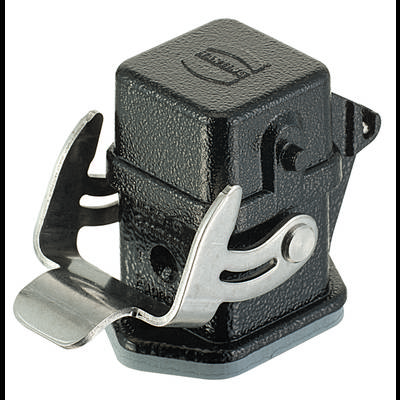

Enclosure extension 09 37 003 0306 09370030306 HARTING 1 pc(s) Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Enclosure extension
Case material
Diecast zinc
Type
09 37 003 0306
Manufacturer part #
09370030306
Datasheet (PDF)
Technical specifications
- Lock type: Longitudinal handle
- Temperature limit: -40 ... +125 °C
- Net weight: 65.3 g
- Note: For socket inserts
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Application area: Housing for increased environmental influences
- Material locking: Stainless steel
- Protection class according to IEC 60529: IP44;IP65 with sealing screw;IP67 with sealing screw
- Description of casing: Straight;with metal cap;with seal
- Design size 3 A
- Approvals DNV GL
- Casing type: Attachment casing
- Housing series: HAN® M
- Material housing: Zinc-Druckguss
- Surface of housing: Powder-coated
- Colour of housing: RAL 9005 (jet black)
- Material seal: FPM
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Packaging type
Single
- Type
09 37 003 0306
- Product type
Enclosure extension
- Manufacturer part #
09370030306
- Features
Longitudinal brace
- Case material
Diecast zinc
- Series
Steckverbinder-Gehäuse Han®
- For insets/pin/socket
für Buchseneinsätze
- Content
1 pc(s)
IP44
IP65
IP67
- Max. temperature
125 °C
- Min. temperature
-40 °C
TRUE
TRUE
Black
Single locking lever
FALSE
FALSE
Zinc
Powder coating
-40-125 °C
Other
FALSE
TRUE
Housing extension
IP65
Other
Base unit
None
Documents & Downloads
Datasheet
Datasheet 3001521 Enclosure extension 09 37 003 0306 09370030306 HARTING 1 pc(s) Single
Datasheet 3001521 Enclosure extension 09 37 003 0306 09370030306 HARTING 1 pc(s) Single
User & Safety Instructions
User & Safety Instructions 3001521 Enclosure extension 09 37 003 0306 09370030306 HARTING 1 pc(s) Single
Description
Installation housing, straight, with metal cap, with seal, size: 3 A, Longitudinal brace, stainless steel, material Housing: zinc die-cast, powder coated
