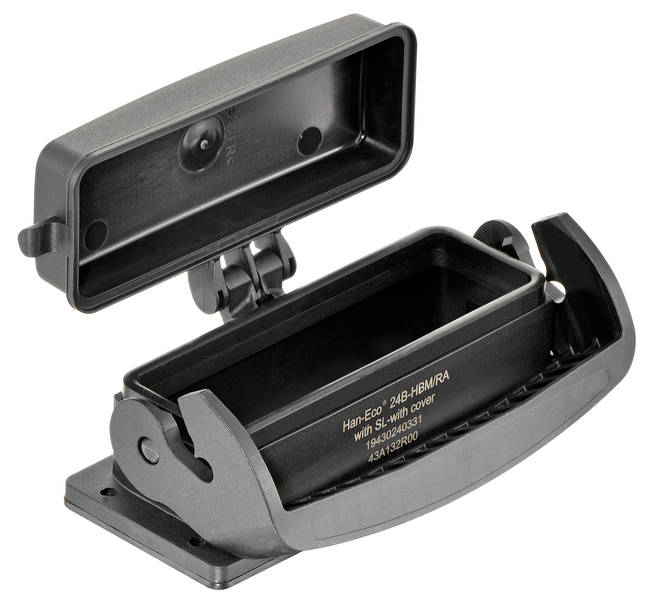

Enclosure extension 19 43 024 0331 19430240331 HARTING 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Enclosure extension
Series
Han® B
Case material
Polyamide
Type
19 43 024 0331
Datasheet (PDF)
Technical specifications
- Lock type: Longitudinal handle
- Temperature limit: -40 ... +125 °C
- Material flammability class acc. To UL 94: V-0
- Standards: IEC 61984; EN 45545-2 Fire protection in rail vehicles
- Net weight: 130 g
- Note: Holder frame 19 43 024 0001 please order separately.
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Material locking: Polyamide (PA);glass fiber reinforced
- Protection class according to IEC 60529 IP66
- Housing description: With plastic cap; without retaining frame
- Design size 24 B
- Casing type: Attachment casing
- Housing series: Han-Eco® B.
- Material housing: Polyamide (PA);glass fiber reinforced
- Colour of housing: RAL 9005 (jet black)
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Lock color: RAL 9005 (jet black)
- Material flammability class to UL 94 (locking bar): V-0
- Number of relocks: ≥ 500
- Packaging type
Piece
- Type
19 43 024 0331
- Product type
Enclosure extension
- Series
Han® B
- Manufacturer part #
19430240331
- Features
Longitudinal brace
- Case material
Polyamide
- Mating cycles
≥ 500
- Series
Han-Eco® B
- Content
1 pc(s)
IP66
- Max. temperature
+125 °C
- Min. temperature
-40 °C
TRUE
TRUE
Black
Single locking lever
FALSE
FALSE
Plastic
Other
-40-125 °C
V0
FALSE
FALSE
Housing extension
IP66
Other
Base unit
None
Documents & Downloads
Datasheet
Datasheet 3001598 Enclosure extension 19 43 024 0331 19430240331 HARTING 1 pc(s) Piece
Datasheet 3001598 Enclosure extension 19 43 024 0331 19430240331 HARTING 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3001598 Enclosure extension 19 43 024 0331 19430240331 HARTING 1 pc(s) Piece
Description
Extension housing, with plastic cap, without retaining frame, size: 24 B, longitudinal rail, Polyamide (PA), glass fiber reinforced
