Encoder 24, 24 V AC, V DC (max) Metz Connect 110660 1 pc(s)
EAN:
Part number:
Item no:
Product type
Encoder
Functions
AUTO mode
Max. operating voltage
24 V AC
24 V DC
Switching voltage (max.)
24 V DC/AC
Type
110660
Datasheet (PDF)
Number
Total (€ 26.88 / piece)
€ 26.88
plus VAT.
14-day return policy included
Analogue value generator KMA-E08
Highlights & Details
- Interface technologyInterface componentAnalogue value control elementBeing setpoint generatorDefault variableValve positionsAdjust the mixing flapsManual operationCoupling componentBTR Netcom
Technical specifications
- Product type
Encoder
- Type
110660
- Functions
AUTO mode
- Features
+ switch
- Operating voltage
24 V AC
24 V DC
- Max. operating voltage
24 V AC
24 V DC
- Operating voltage
24, 24 V AC, V DC (max)
- Switching voltage (max.)
24 V DC/AC
- Connection
Screw terminal
IP40
- Min. temperature
-10 °C
- Max. temperature
+50 °C

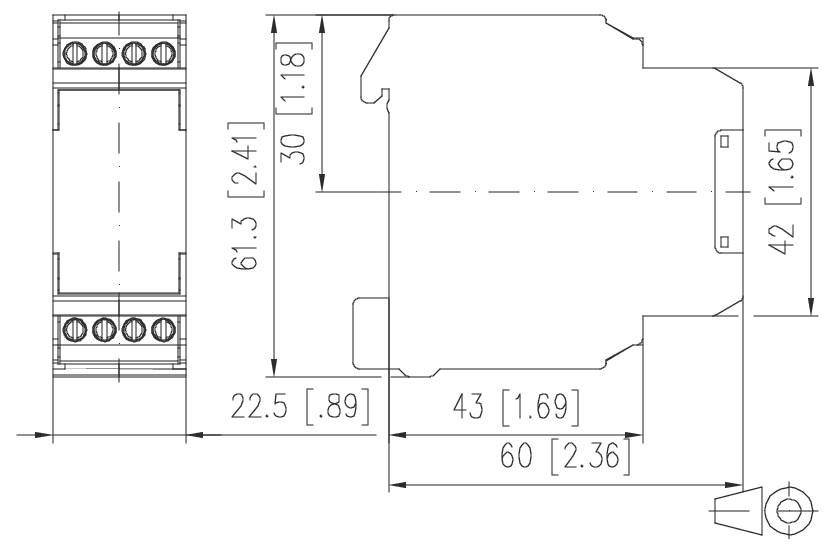

- Width
22.50 mm
- Height
61.30 mm
- Depth
60 mm
- Dim
(W x H x D) 22.50 x 61.30 x 60 mm
- Content
1 pc(s)
- Weight
70 g
- Factory colour
Grey
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2860520 Encoder 24, 24 V AC, V DC (max) Metz Connect 110660 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2860520 Encoder 24, 24 V AC, V DC (max) Metz Connect 110660 1 pc(s)
Information
Information 2860520 Encoder 24, 24 V AC, V DC (max) Metz Connect 110660 1 pc(s)
Description

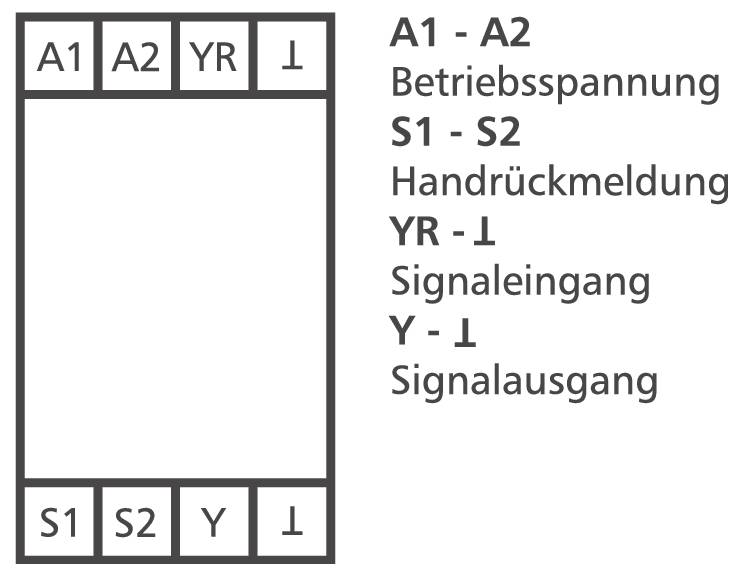

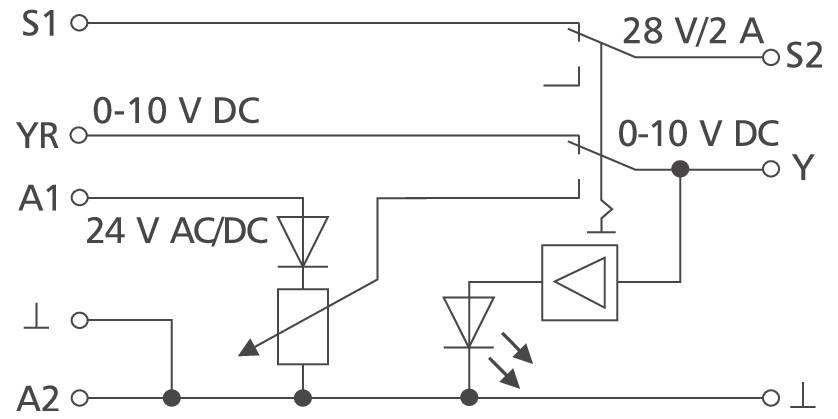

The analog encoder serves as an manipulated variable encoder for manual manipulated variable specification, e.g. Mixing flaps, valve positions, temperature values, etc. The module can be controlled with two modes of operation, which can be switched by means of the integrated two-stage switch (MANUAL, AUTO). The switch position is reported back via the external control contact terminals S1 and S2. Switch position MANUAL: The manipulated variable can be adjusted by means of the front potentiometer. The output signal 0 ... 10 V is available at terminal Y Switch position AUTO: The manipulated variable is switched to manipulated variable output Y without changing via the YR terminal, setpoint generator, manual operating level with feedback, LED brightness proportional to the manipulated variable.
