Encoder 24, 24 V AC, V DC (max) Metz Connect 110730 1 pc(s)
EAN:
Part number:
Item no:
Product type
Encoder
Max. operating voltage
24 V AC
24 V DC
Type
110730
Operating voltage
24 V AC
24 V DC
Operating voltage
24, 24 V AC, V DC (max)
Datasheet (PDF)
Number
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
14-day return policy included
Analogue value generator KMA-F8
Highlights & Details
- Interface technologyInterface componentAnalogue value control elementBeing setpoint generatorDefault variableValve positionsAdjust the mixing flapsManual operationCoupling componentBTR relaysBTR Netcom
Technical specifications
- Product type
Encoder
- Type
110730
- Operating voltage
24 V AC
24 V DC
- Max. operating voltage
24 V AC
24 V DC
- Operating voltage
24, 24 V AC, V DC (max)
- Connection
Spring-loaded terminal
IP40
- Min. temperature
-5 °C
- Max. temperature
+55 °C

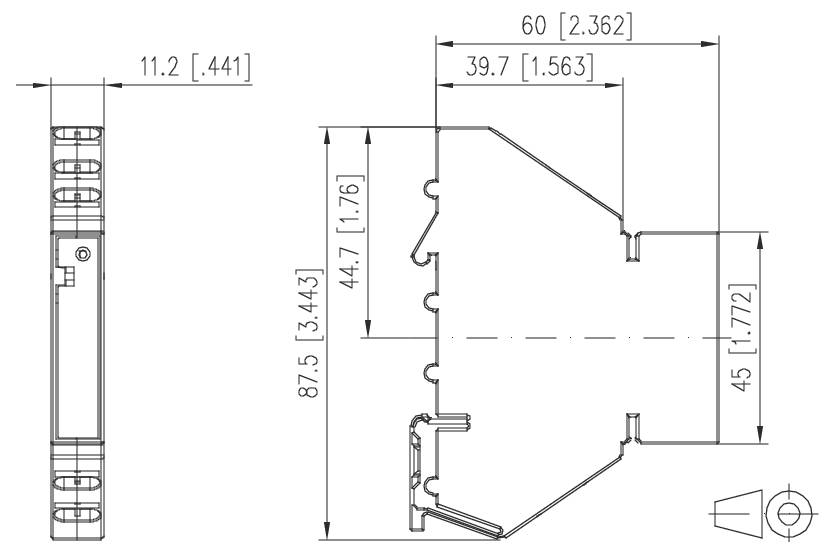

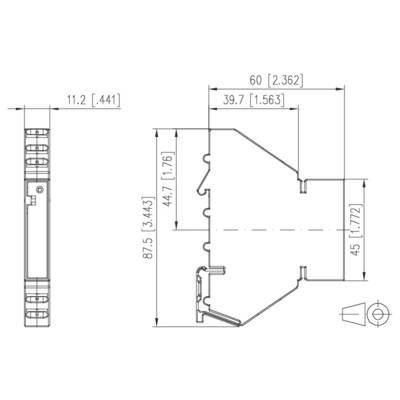

- Width
11.20 mm
- Height
87.50 mm
- Depth
60 mm
- Dim
(L x W x H) 11.7 cm x 11.20 mm x 87.50 mm
- Content
1 pc(s)
- Weight
43 g
- Factory colour
Grey
- Length
11.7 cm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2860517 Encoder 24, 24 V AC, V DC (max) Metz Connect 110730 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2860517 Encoder 24, 24 V AC, V DC (max) Metz Connect 110730 1 pc(s)
Information
Information 2860517 Encoder 24, 24 V AC, V DC (max) Metz Connect 110730 1 pc(s)
Description

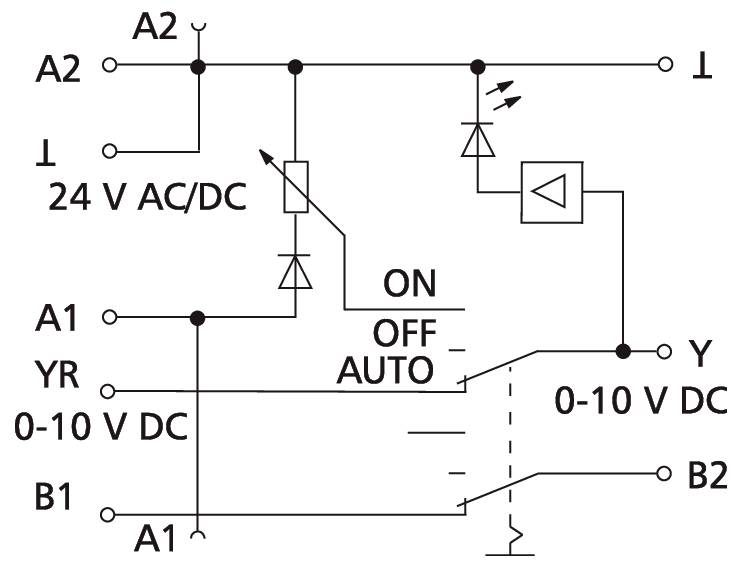

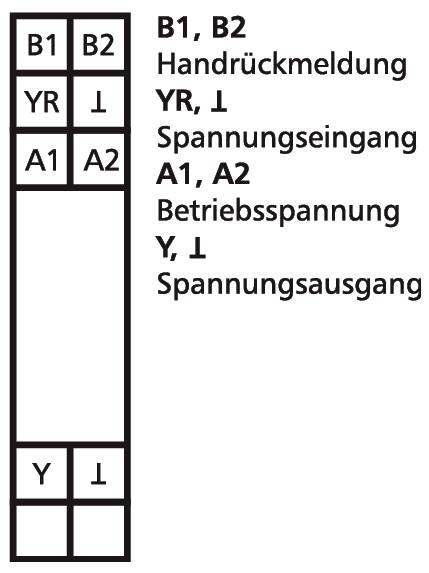

The analog encoder is used for manual manipulated variable setting, e.g. for mixing flaps, valve positions, temperature values, etc. The module can be controlled with two operating modes that are set with the three-stage switch (ON, OFF, AUTO) on the front. The switch position is signaled via the external control contact terminals B1 and B2. Switch position ON: The manipulated variable can be adjusted using the front potentiometer. The output signal 0 to 10 V is available at terminal Y. Switch position AUTO: The manipulated variable is switched to manipulated variable output Y without change via the YR clamp.Connection with spring clamps (push-in), setpoint generator, manual operating level with feedback signal, LED brightness proportional to the manipulated variable.
