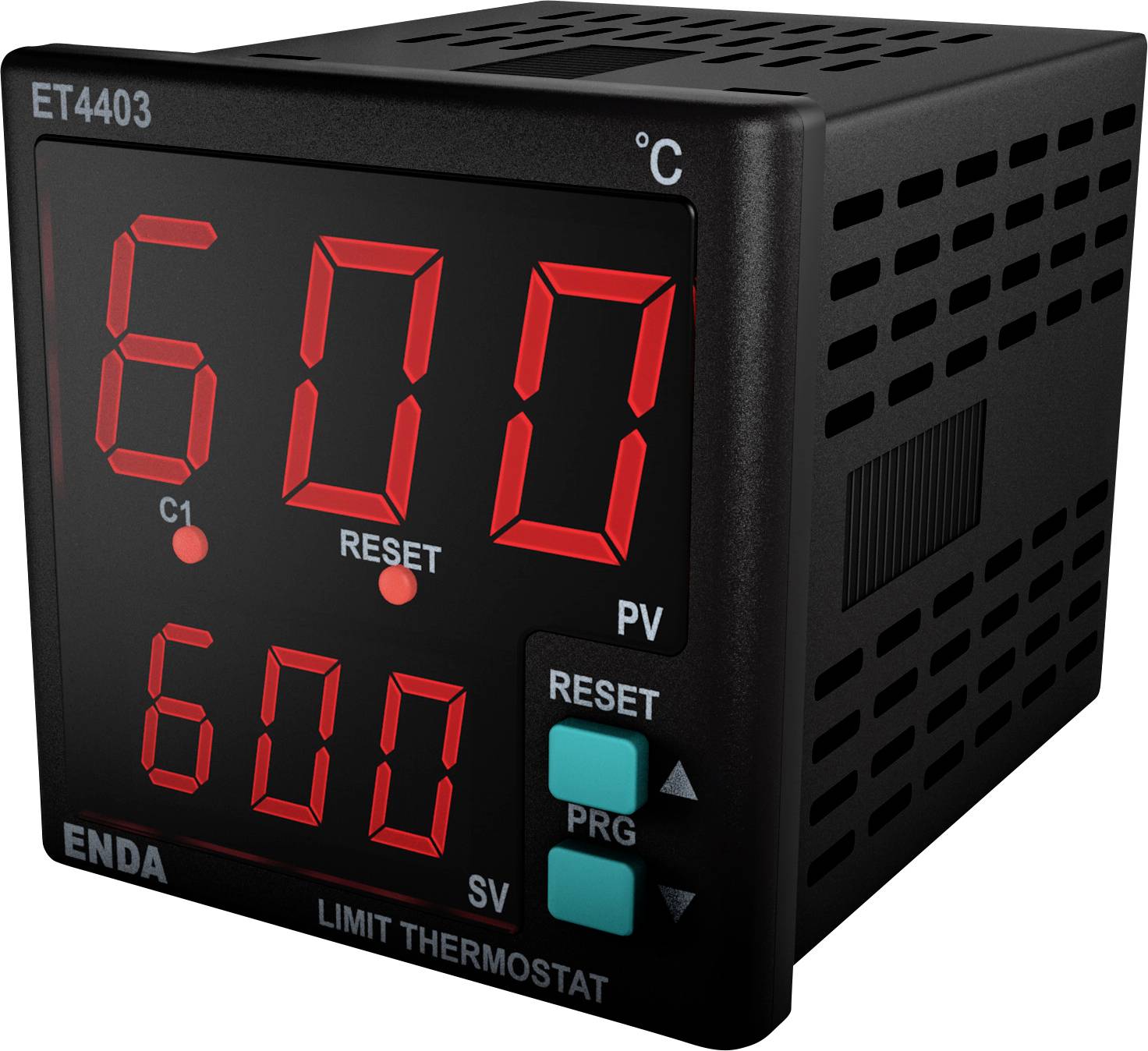

Enda ET4403-230 Temperature sensor +1 up to +50 °C (W x H) 48 mm x 48 mm
EAN:
Part number:
Item no:
Product type
Temperature sensor
Operating voltage
230 V
Max. temperature reading
+50 °C
Type
ET4403-230
Reading range
+1 up to +50 °C
Datasheet (PDF)
Number
Total (€ 43.69 / piece)
€ 43.69
plus VAT.
14-day return policy included
Technical specifications
- Product type
Temperature sensor
- Type
ET4403-230
- Operating voltage
230 V
- Reading range
+1 up to +50 °C
- Max. temperature reading
+50 °C
- Min. temperature reading
+1 °C
- Dim
(W x H) 48 mm x 48 mm
- Height
48 mm
- Width
48 mm
- Manufacturer part #
ET4403-230
- Recess depth
65.70 mm
Documents & Downloads
Datasheet
Datasheet 2452918 Enda ET4403-230 Temperature sensor +1 up to +50 °C (W x H) 48 mm x 48 mm
Description
Features
- 14.2 mm / 9.1 mm 7-segment LED display.
- 2-conductor PT100 input.
- Function can be set to ON-OFF control or temperature monitor.
- Sets the dark switching of the display.
- C1 output relay.
- Offset setting (measurement value correction).
- External reset input.
- Front reset button.
- Switch-off of the output in case of sensor failure
- This text is machine translated.
