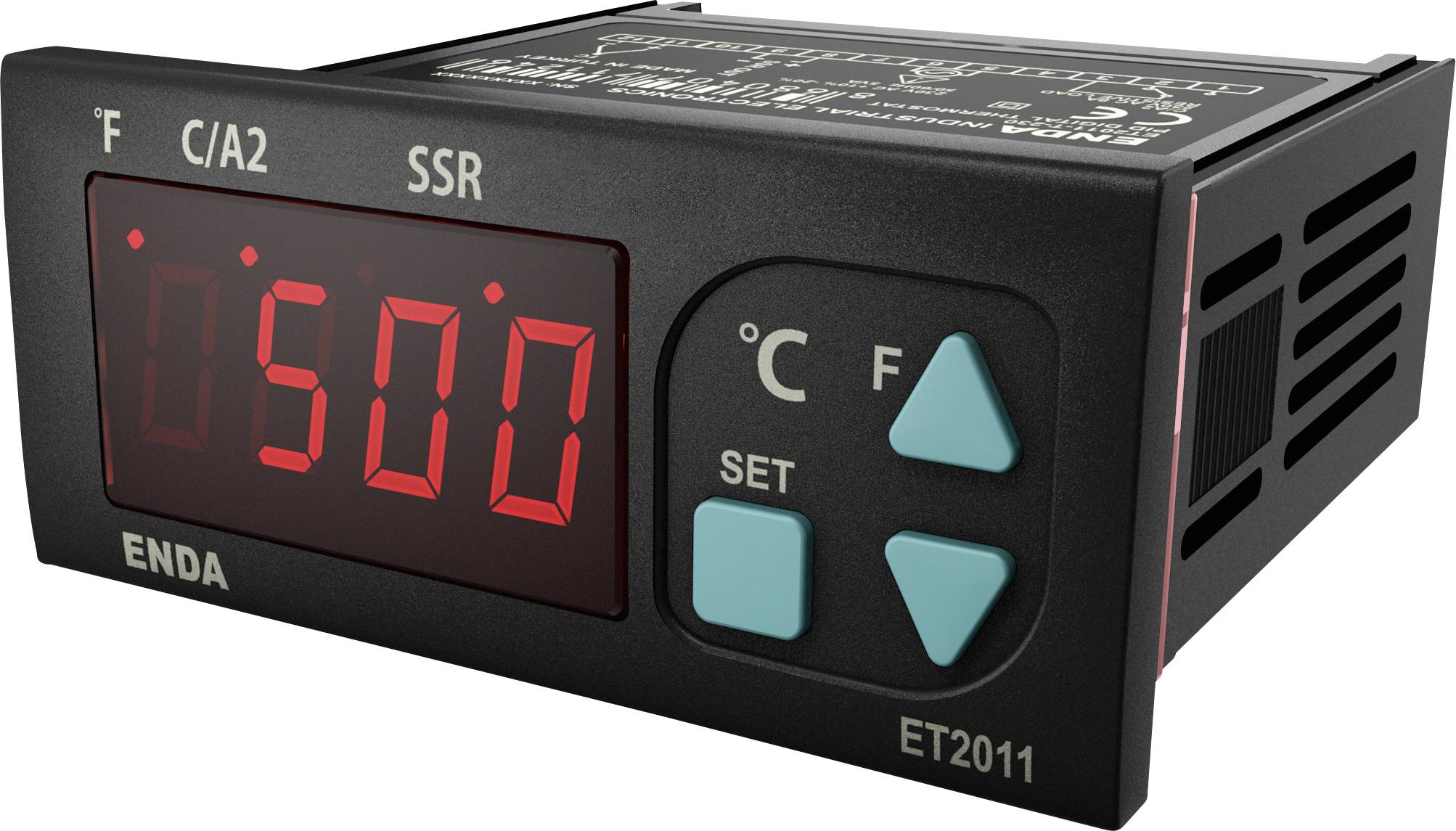

Enda PID Temperature controller J, K, T, S, R -200 up to 1700 °C (L x W x H) 71 x 77 x 35 mm
EAN:
Part number:
Item no:
Product type
Temperature controller
Thermostat type
PID
Operating voltage
30 V DC
24 V AC
24 V DC
12 V DC
Max. temperature reading
1700 °C
No. of relay outputs
1
Datasheet (PDF)
Number
Total (€ 70.58 / piece)
€ 70.58
plus VAT.
Highlights & Details
Enda ET2011-T-LV PID temperature controller Pt-100
- Ability to enter a selectable double-set value
- Selectable thermo-element types or Pt-100-input
- Automatic calculation of PID parameters (SELF TUNE)
- Soft-start function
- Offset property for the input
- C/A2 relay output, which can be used as an alarm or temperature control output
- Selectable SSR control output
- Selectable heating/cooling controller
- The possibility to select relay positions or periodic operation in the event of a probe failure
- CE-labeled according to EN standards
Technical specifications
- Power consumption 5 VA
- Accuracy: ± 0.5% from scale area + 1 Digit
- Resolution: 0.1 °C or 1 °C
- Connection: via screw terminal strip for 2.5 mm²
- Operating temperature 0 °C - 50 °C
- Product type
Temperature controller
- Type
ET2011-T-LV
- Thermostat type
PID
- Operating voltage
30 V DC
24 V AC
24 V DC
12 V DC
- Reading range
-200 up to 1700 °C
- Max. temperature reading
1700 °C
- Min. temperature reading
-200 °C
- No. of relay outputs
1
- No. of transistor outputs
1
- Outputs
C/A2 relay: 250V AC/8A, change-over contact (adjustable as control or alarm output)
SSR output: Max. 20 mA/12 V DC
Control output can be selected between relay or SSR output
- Dim
(L x W x H) 71 x 77 x 35 mm
- Factory colour
Black
- Height
35 mm
- Length
71 mm
- Width
77 mm
IP65 (on front)/IP20 (on back)
- Sensor type
J
K
T
S
R
- Manufacturer part #
ET2011-T-LV
- Type
PID control with self-optimization (SELFTUNE)
Soft-Start (ramp function)
Adjustable control type On-Off / P, PI, PD, PID
- Recess depth
71 mm
- Mounting type
Recess-mount
- Assembly dimensions
77x35 mm
- Sensor type
PT100 and various thermo elements (J, K, T, S, R)
- Weight
215
Documents & Downloads
Datasheet
Datasheet 3527766 Enda PID Temperature controller J, K, T, S, R -200 up to 1700 °C (L x W x H) 71 x 77 x 35 mm
User & Safety Instructions
User & Safety Instructions 3527766 Enda PID Temperature controller J, K, T, S, R -200 up to 1700 °C (L x W x H) 71 x 77 x 35 mm
Description
A compact ON-OFF/ PID controller with self-optimization, control output as relay or SSR output adjustable. Easy and intuitive operation using horizontal and vertical menu navigation.
This text is machine translated.
This text is machine translated.
Features
- Type of control - individual set-point and alarm control
- Control method - On-Off, P, PI, PD, PID (selectable)
- A/D converter (12-bit)
- Sampling time - 100 ms
- Proportional Band - Adjustable between 0.0% and 100.0%. If Pb=0.0%, the on/off control is selected.
- Control period - adjustable from 1 to 250 seconds
- Hysteresis - Adjustable between 1 and 50 °C/F
