Enda PID Temperature controller Pt100 -200 up to 600 °C (L x W x H) 71 x 77 x 35 mm
EAN:
Part number:
Item no:
Product type
Temperature controller
Thermostat type
PID
Operating voltage
30 V DC
24 V AC
24 V DC
12 V DC
Max. temperature reading
600 °C
No. of relay outputs
1
Datasheet (PDF)
Number
Total (€ 70.58 / piece)
€ 70.58
plus VAT.
Only 2 Piece(s) available
Highlights & Details

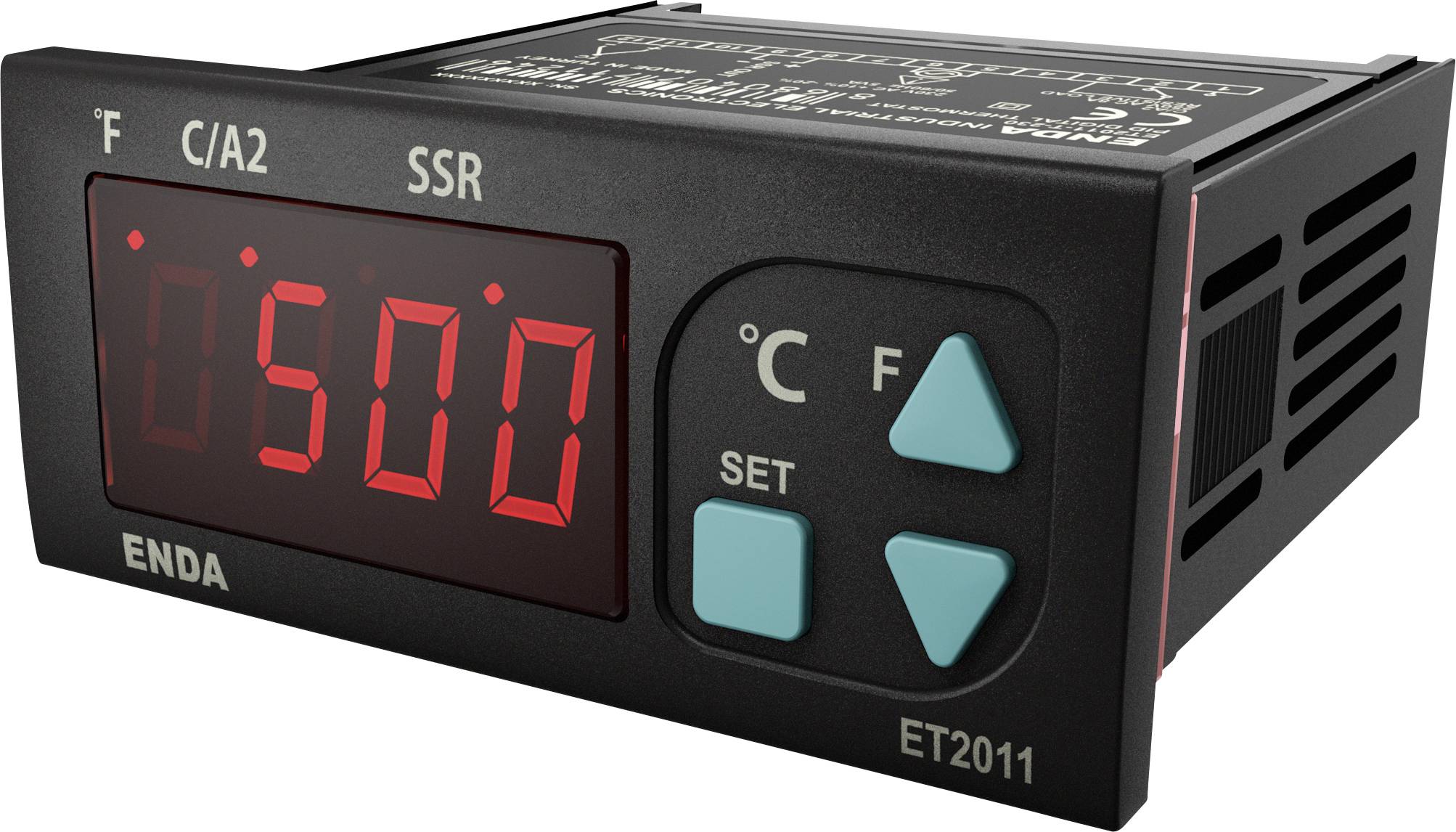

Enda ET2011-RT-LV PID temperature controller Pt100
- Ability to enter a selectable double-set value
- Selectable thermo-element types or Pt-100-input
- Automatic calculation of PID parameters (SELF TUNE)
- Soft-start function
- Offset property for the input
- C/A2 relay output, which can be used as an alarm or temperature control output
- Selectable SSR control output
- Selectable heating/cooling controller
- The possibility to select relay positions or periodic operation in the event of a probe failure
- CE-labeled according to EN standards
Technical specifications
- Measuring accuracy ±0.5% (scale range) ±1 digit
- Measurement cycle: 100ms
- Power consumption: Max. 5 VA
- Product type
Temperature controller
- Type
ET2011-RT-LV
- Thermostat type
PID
- Operating voltage
30 V DC
24 V AC
24 V DC
12 V DC
- Reading range
-200 up to 600 °C
- Max. temperature reading
600 °C
- Min. temperature reading
-200 °C
- No. of relay outputs
1
- No. of transistor outputs
1
- Outputs
C/A2 relay: 250V AC/8A (switch-over contact, adjustable as control or alarm output)
SSR output: Max. 20 mA/12 V DC
- Dim
(L x W x H) 71 x 77 x 35 mm
- Factory colour
Black
- Height
35 mm
- Length
71 mm
- Width
77 mm
IP65 (on front)/IP20 (on back)
- Sensor type
Pt100
- Manufacturer part #
ET2011-RT-LV
- Type
PID control with self-optimization (SELFTUNE)
Soft-Start (ramp function)
Selectable control type On-Off / P, PI, PD, PID
- Recess depth
71 mm
- Mounting type
Recess-mount
- Assembly dimensions
77x35 mm
- Sensor type
PT100 resistance thermometer
- Weight
215
Documents & Downloads
Datasheet
Datasheet 3527762 Enda PID Temperature controller Pt100 -200 up to 600 °C (L x W x H) 71 x 77 x 35 mm
User & Safety Instructions
User & Safety Instructions 3527762 Enda PID Temperature controller Pt100 -200 up to 600 °C (L x W x H) 71 x 77 x 35 mm
Description
A compact ON-OFF/ PID controller with self-optimization, control output as relay or SSR output adjustable. Two device variants, input available for PT100 or thermo element. Soft-start function (time default value) and safety code can be set to prevent unauthorized alteration of the values. Easy and intuitive operation using horizontal and vertical menu navigation.
This text is machine translated.
This text is machine translated.
Features
- Type of control - individual set-point and alarm control
- Control method - On-Off, P, PI, PD, PID (selectable)
- A/D converter (12-bit)
- Sampling time - 100 ms
- Proportional Band - Adjustable between 0.0% and 100.0%. If Pb=0.0%, the on/off control is selected.
- Control period - adjustable from 1 to 250 seconds
- Hysteresis - Adjustable between 1 and 50 °C/F
