Enda PID Temperature controller Pt100, J, K, L, T, S, R, B -199.9 up to 1700 °C (L x W x H) 87 x 48 x 96 mm
EAN:
Part number:
Item no:
Product type
Temperature controller
Thermostat type
PID
Operating voltage
230 V AC
Max. temperature reading
1700 °C
No. of relay outputs
2
Datasheet (PDF)
Number
Total (€ 117.64 / piece)
€ 117.64
plus VAT.
Only 3 Piece(s) available
Highlights & Details

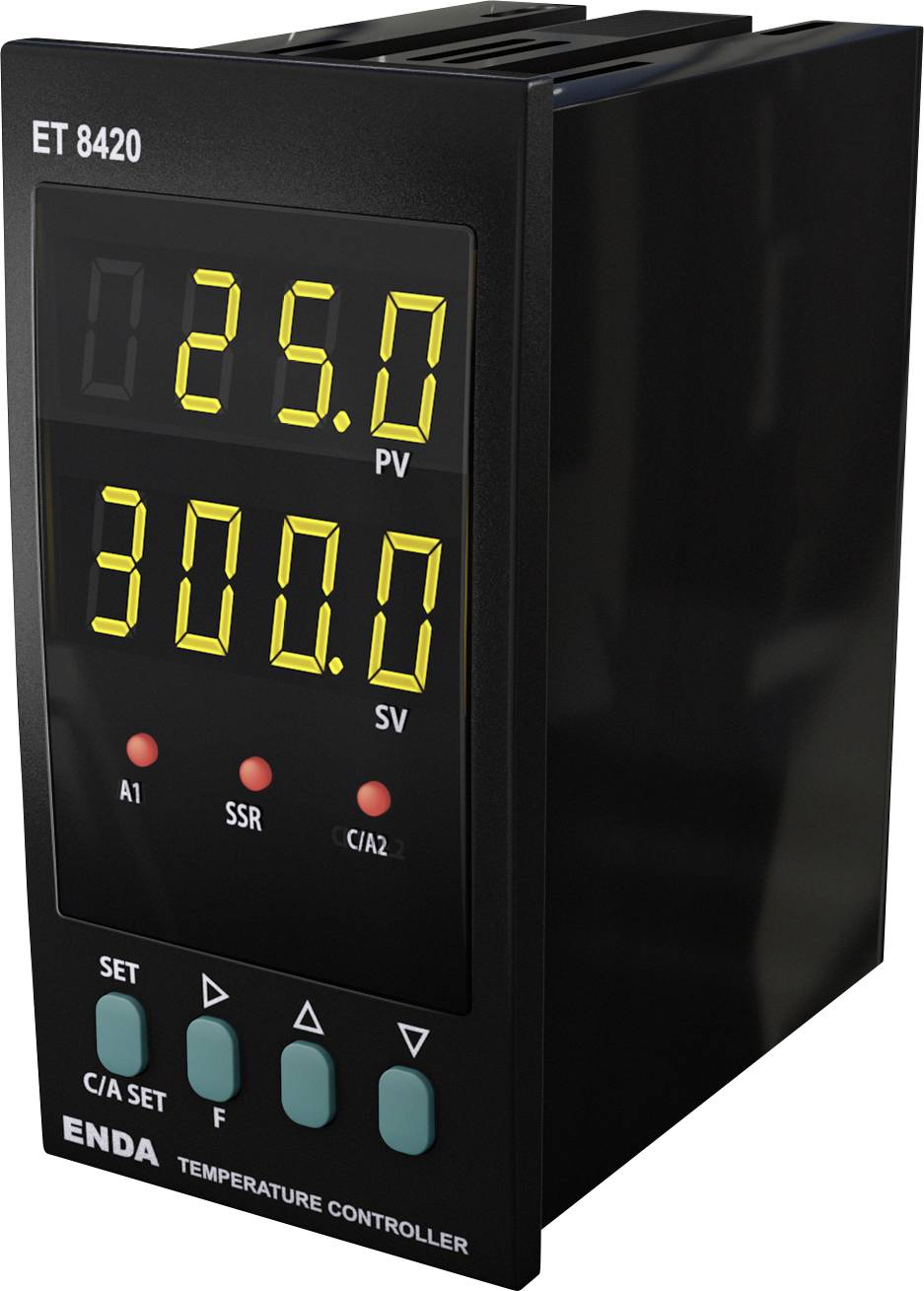

Enda ET8420-230 PID temperature controller Pt100
- Ability to enter a selectable double-set value
- Selectable sensor types (Pt-100, J, K, L, T, S, R)
- Automatic calculation of PID parameters (SELF TUNE)
- Digital input with three different assignable functions
- F function key which can be assigned to three different functions
- Soft-start function
- Selectable SSR control output
- C/A2 relay output, which can be used as a second alarm or temperature control output
- Relay output A1 can be used as the first alarm output or PID cooling output
- Selectable heating/cooling controller
- Offset property for the input
- The option of selecting relay positions in the event of a probe failure or periodic and automatic periodic operation
- Communication with RS-485 Modbus protocol
- CE-labeled according to EN standards
- This text is machine translated.
Technical specifications
- Power consumption 5 VA
- Accuracy: ±0.5 % of scale range + 1 digit
- Resolution 0.1 °C or 1°C
- Connection: Via screw terminal strip for 2.5 mm²
- Operating temperature: -0 to + 50 °C.
- Product type
Temperature controller
- Type
ET8420-230
- Thermostat type
PID
- Operating voltage
230 V AC
- Reading range
-199.9 up to 1700 °C
- Max. temperature reading
1700 °C
- Min. temperature reading
-199.9 °C
- No. of relay outputs
2
- No. of transistor outputs
1
- Outputs
C/A2 relay: 250 V AC, 8 A (resistive load), changeover contact NO + NC, selectable as control or Alarm2 output .
A1 Relay: 250 V AC,8A (resistive load), NO, selectable as Alarm1 or PID controller output for cooling function.
SSR output: Max. 20mA, 24 volt.
- Dim
(L x W x H) 87 x 48 x 96 mm
- Factory colour
Black
- Height
96 mm
- Length
87 mm
- Width
48 mm
IP65 (on front)/IP20 (on back)
- Sensor type
Pt100
J
K
L
T
S
R
B
- Manufacturer part #
ET8420-230
- Type
PID control with self-optimization (SELFTUNE) , soft-start (ramp function)
Selectable control type On-Off / P, PI, PD, PID
- Recess depth
87 mm
- Mounting type
Recess-mount
- Digital inputs
1
- Assembly dimensions
48 x 96 mm
- Sensor type
PT100 and various thermo elements (J, K, L, T, S, R, B
- Weight
400 g
Documents & Downloads
Datasheet
Datasheet 3527760 Enda PID Temperature controller Pt100, J, K, L, T, S, R, B -199.9 up to 1700 °C (L x W x H) 87 x 48 x 96 mm
User & Safety Instructions
User & Safety Instructions 3527760 Enda PID Temperature controller Pt100, J, K, L, T, S, R, B -199.9 up to 1700 °C (L x W x H) 87 x 48 x 96 mm
Description
A compact ON-OFF/ PID controller with self-optimization, control output as relay or SSR output adjustable. Two device variants, input available for PT100 or thermo element. Soft-start function (time default value) and safety code can be set to prevent unauthorized alteration of the values. Easy and intuitive operation using horizontal and vertical menu navigation.
This text is machine translated.
This text is machine translated.
Features
- Type of control - individual set-point and alarm control
- Control method - On-Off, P, PI, PD, PID (selectable)
- A/D converter (12-bit)
- Sampling time - 100 ms
- Proportional Band - Adjustable between 0.0% and 100.0%. If Pb=0.0%, the on/off control is selected.
- Control period - adjustable from 1 to 250 seconds
- Hysteresis - Adjustable between 1 and 50 °C/F
