Enda PID Temperature controller Pt100, J, K, L, T, S, R, B -199 up to 1700 °C (L x W x H) 50 x 96 x 96 mm
EAN:
Part number:
Item no:
Product type
Temperature controller
Thermostat type
PID
Operating voltage
8 V AC
10 V DC
12 V DC
24 V AC
24 V DC
30 V DC
Max. temperature reading
1700 °C
No. of relay outputs
2
Datasheet (PDF)
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
Only 4 Piece(s) available
Highlights & Details

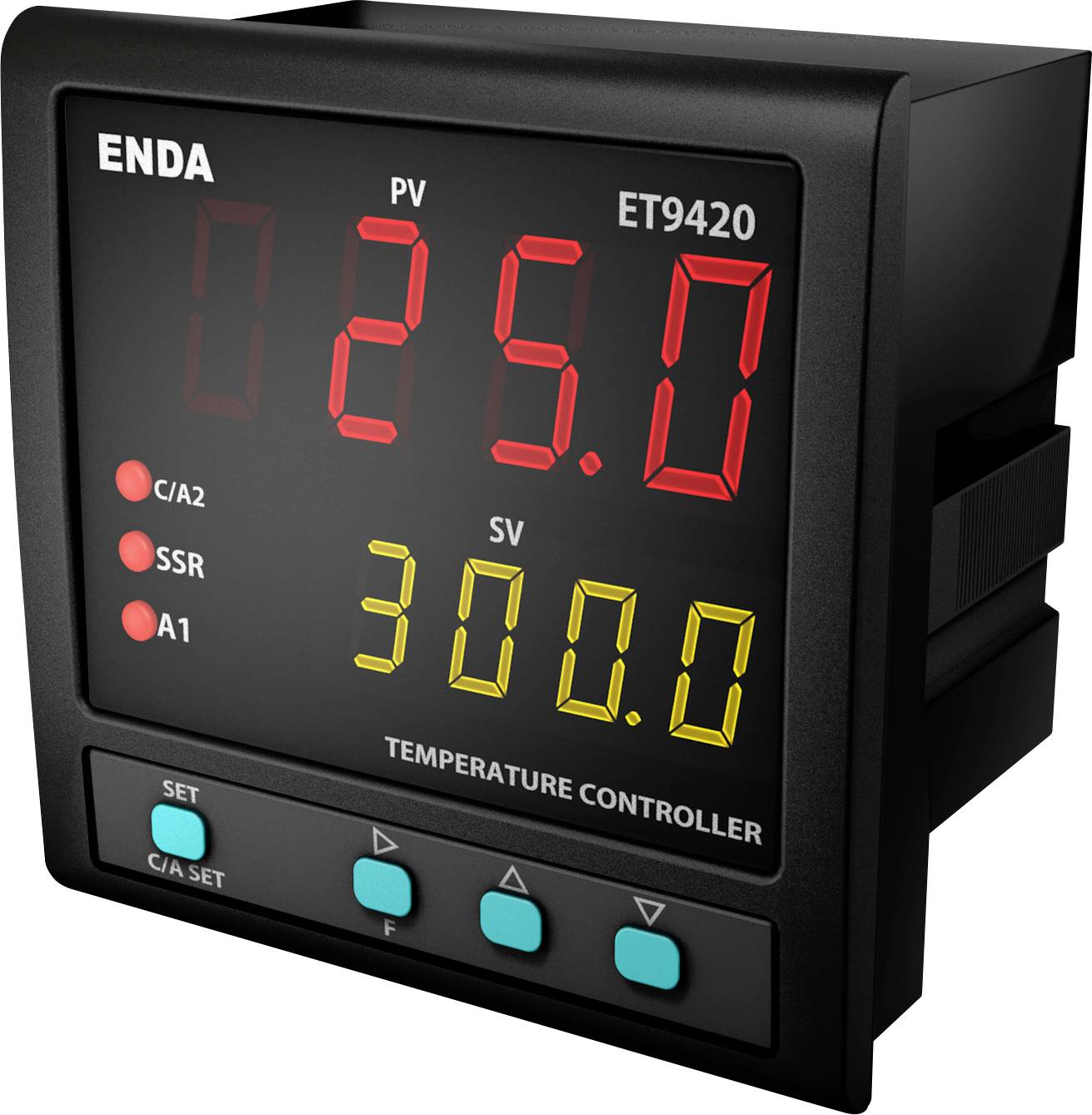

PID temperature controller
- Ability to enter a selectable double-set value
- Selectable sensor types (Pt-100, J, K, L, T, S, R)
- Automatic calculation of PID parameters (SELF TUNE)
- Digital input with three different assignable functions
- F function key which can be assigned to three different functions
- Soft-start function
- Selectable SSR control output
- C/A2 relay output, which can be used as a second alarm or temperature control output
- A1 relay output, which can be used as the first alarm output or PID cooling output
- Selectable heating/cooling controller
- Offset property for the input
- The option of selecting relay positions in the event of a probe failure or periodic and automatic periodic operation
- Communication with RS-485 Modbus protocol
- CE-labeled according to EN standards
- This text is machine translated.
Technical specifications
- Product type
Temperature controller
- Type
ET9420-LV
- Thermostat type
PID
- Operating voltage
8 V AC
10 V DC
12 V DC
24 V AC
24 V DC
30 V DC
- Reading range
-199 up to 1700 °C
- Max. temperature reading
1700 °C
- Min. temperature reading
-199 °C
- No. of relay outputs
2
- No. of transistor outputs
1
- Outputs
C/A2 relay: 250 V AC, 8A (resistive load), change-over contact NO + NC, selectable as control or Alarm2 output.
A1 Relay: 250 V AC,8A (resistive load), NO, selectable as alarm or PID control output for cooling function.
SSR output: Max. 20mA, 24 volt.
- Dim
(L x W x H) 50 x 96 x 96 mm
- Factory colour
Black
- Height
96 mm
- Length
50 mm
- Width
96 mm
IP65 (on front)
IP20 (back panel)
- Sensor type
Pt100
J
K
L
T
S
R
B
- Manufacturer part #
ET9420-LV
- Type
PID control with self-optimization (SELFTUNE)
Soft-Start (ramp function)
Selectable control type On-Off / P, PI, PD, PID
- Recess depth
50 mm
- Mounting type
Recess-mount
- Digital inputs
1
- Assembly dimensions
96 x 96 mm
- Sensor type
Pt100, J, K, T, S, R
- Weight
400 g
- Operating voltage
230 V/AC 50/60 Hz (+10 up to 20 %)
Documents & Downloads
Datasheet
Datasheet 3527758 Enda PID Temperature controller Pt100, J, K, L, T, S, R, B -199 up to 1700 °C (L x W x H) 50 x 96 x 96 mm
User & Safety Instructions
User & Safety Instructions 3527758 Enda PID Temperature controller Pt100, J, K, L, T, S, R, B -199 up to 1700 °C (L x W x H) 50 x 96 x 96 mm
Description
PID temperature controller in various DIN installation sizes (48 x 48, 72 x 72, 96 x 96, 96 x 96 mm), type of control choice between "ON-OFF" switching behaviour or PID control with self-optimisation. Simultaneous display of actual value (red 7 segment display and set-value (green or yellow 7 segment display). Soft-start (ramp function) and safety code against unauthorized adjustment of the values set Easy and intuitive operation using horizontal and vertical menu navigation.
Features
- Measuring input for Two / Three ladder circuit PT100 (DIN EN60751) -200 to +600 ° C or -99.9 to +300.0 ° C
- Thermal elements (according to DIN EN60584) 0 to 1600 ° C - Type J, K, T, S, R, accuracy 0.2% of range + 1 digit
- Data backup in EEPROM
- Protection: front IP60
- Rear protection: IP20. Incl. snap-on screw terminals for 2.5mm
- 1 relay contact
- 1 closing contact (switching output 2 A/250 V / AC with resistive load)
- 1 semiconductor output (SSR, max. 12 V / DC / 20mA).
