Enda PID Universal controller Pt100, J, K, L, S, R, T -200 up to 1700 °C (L x W x H) 87 x 48 x 96 mm
EAN:
Part number:
Item no:
Product type
Universal controller
Thermostat type
PID
Operating voltage
230 V AC
Max. temperature reading
1700 °C
No. of relay outputs
2
Datasheet (PDF)
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
Only 1 Piece(s) available
Highlights & Details

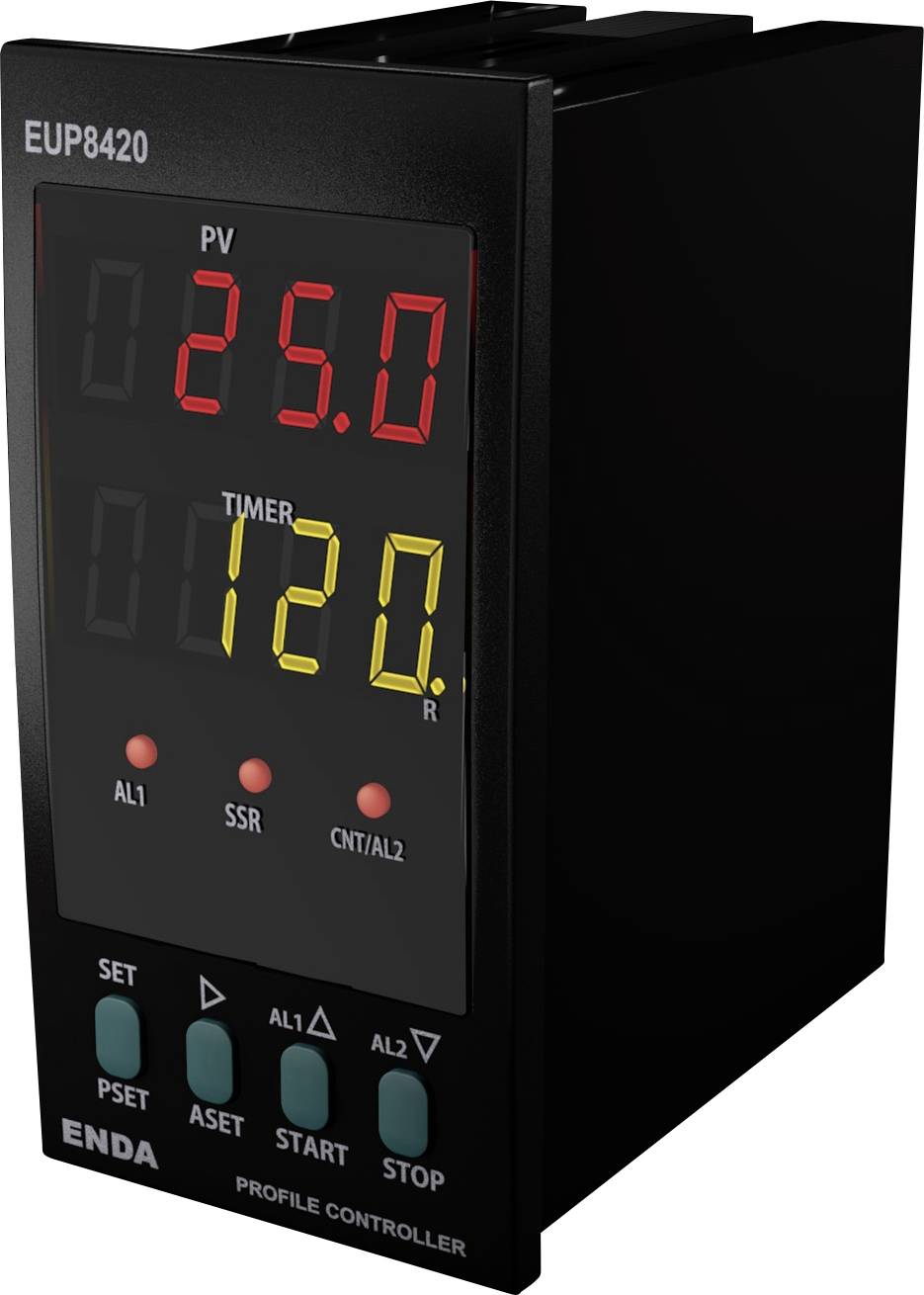

Enda EUP8420-230 PID universal controller
- Ability to enter a selectable double-set value
- Selectable sensor type Pt-100, J, K, L, T, S, R
- Selectable input: 0–20 mA, 4–20 mA, 0–10 V, 2–10 V, 0–25 mV and 0–50 mV
- Ability to control profiles with up to 16 steps
- Programming the AL1 and AL2 outputs at each step
- Can continue to where you left off in the event of a power failure
- Automatic calculation of PID parameters (SELF TUNE)
- Digital input with three different assignable functions
- F function key which can be assigned to three different functions
- Soft-start function
- Selectable analogue, SSR or relay control output
- Selectable analogue control output 0–20 mA and 4–20 mA
- C/A2 relay output, which can be used as a second alarm or temperature control output
- Relay output A1 can be used as the first alarm output or PID cooling output
- Selectable heating/cooling controller
- Offset property for the input
- The option of selecting relay positions in the event of a probe failure or periodic and automatic periodic operation
- Communication with RS-485 Modbus protocol
- CE-labeled according to EN standards
- This text is machine translated.
Technical specifications
- Control mode: Can be selected between On-Off / P, PI, PD, PID
- Product type
Universal controller
- Type
EUP8420-230
- Thermostat type
PID
- Operating voltage
230 V AC
- Reading range
-200 up to 1700 °C
- Max. temperature reading
1700 °C
- Min. temperature reading
-200 °C
- No. of analogue inputs
1
- No. of relay outputs
2
- No. of transistor outputs
1
- Outputs
C/A2 relay: 250VAC, 8A (resistive load), switching NO + NC
A1 Relay: 250VAC, 8A (resistive load), NO (selectable as Alarm1 or cooler function)
ANL/SSR output: 0−20mA,4−20mA (12bit, 0.2% accuracy) or as SSR output 24V/20mA
- Dim
(L x W x H) 87 x 48 x 96 mm
- Factory colour
Black
- Height
96 mm
- Length
87 mm
- Width
48 mm
IP65 (on front)
IP20 (back panel)
- Sensor type
Pt100
J
K
L
S
R
T
- Manufacturer part #
EUP8420-230
- Type
PID universal controller, self-extinguishing housing material
- Recess depth
87 mm
- Mounting type
Recess-mount
- Digital inputs
1
- Assembly dimensions
48 x 96 mm
- Sensor type
THERMAL ELEMENTS J, K, L, T, S, R and PT100
- Weight
400 g
Documents & Downloads
Datasheet
Datasheet 3527757 Enda PID Universal controller Pt100, J, K, L, S, R, T -200 up to 1700 °C (L x W x H) 87 x 48 x 96 mm
User & Safety Instructions
User & Safety Instructions 3527757 Enda PID Universal controller Pt100, J, K, L, S, R, T -200 up to 1700 °C (L x W x H) 87 x 48 x 96 mm
Description
Features
- Type of control - individual set-point and alarm control
- On/Off, P, PI, PD, PID control method
- A/D converter - 14 bit
- Sampling time - 100 ms
- Proportional Band - Adjustable between 0.0% and 100.0%. If Pb=0.0%, the on/off control is selected.
- Control period - adjustable from 1 to 125 seconds
- Hysteresis - Adjustable between 1 and 50 °C/F
