Enda SSR EPDA1-225Z 25 A Switching voltage (max.): 320 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSR
Control voltage (min.)
8 V AC
Control voltage (max.)
30 V AC
Switching voltage (max.)
320 V AC
Current load (max.)
25 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 29.40
3
4% = € 1.27
€ 28.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 29.40 / piece)
€ 29.40
plus VAT.
Highlights & Details

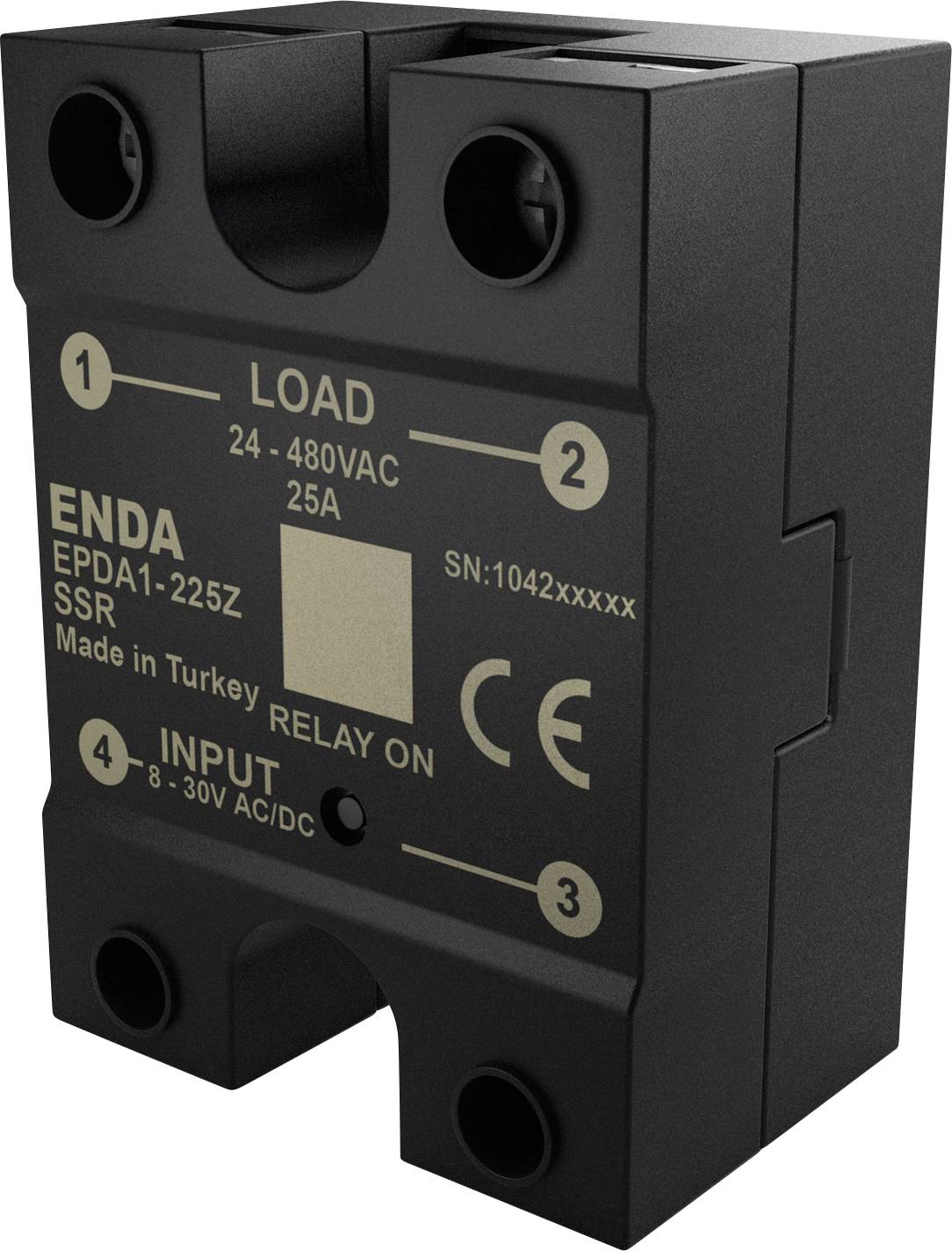

Enda EPDA1-225Z panel mount SSR 25 a
- 25 A AC load current
- 320 V AC load voltage
- 8–30 V AC/DC INPUT VOLTAGE
- LED display for input voltage
- Switches at zero-crossing/random continuity of the alternating voltage
- Applicable for three-phase loads
- Varistor protection for peak voltages
- CE-labeled according to EN standards
- This text is machine translated.
Technical specifications
- Single-pole (single-pole)/zero-cross
- Integrated varistor protection
- Mains frequency: 50/-60Hz.
- Product type
SSR
- Type
EPDA1-225Z
- Connection
Screw terminal
- Control voltage (min.)
8 V AC
- Control voltage (max.)
30 V AC
- Control voltage range
8 - 30 V AC
- Control current (max.)
17 mA
10 mA
- Surge current (max.)
240 A
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
320 V AC
- Current load (max.)
25 A
- Output voltage (min.)
24 V AC
- Output voltage (max.)
320 V AC
- Max. output current
25 A
- Min. temperature
-25 °C
- Max. temperature
60 °C
IP20
- Width
45 mm
- Height
62 mm
- Depth
31 mm
- Weight
95
- Industrial packaging
Yes
- Permanent current (max.)
25 A
- Content
1 pc(s)
- Nominal control voltage
8 V AC
30 V AC
