Enda SSR EPDA3-440Z-T 40 A Switching voltage (max.): 480 V AC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 88.23 / piece)
€
Only 3 Piece(s) available
Highlights & Details

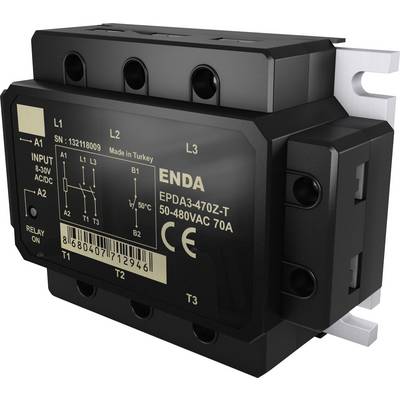

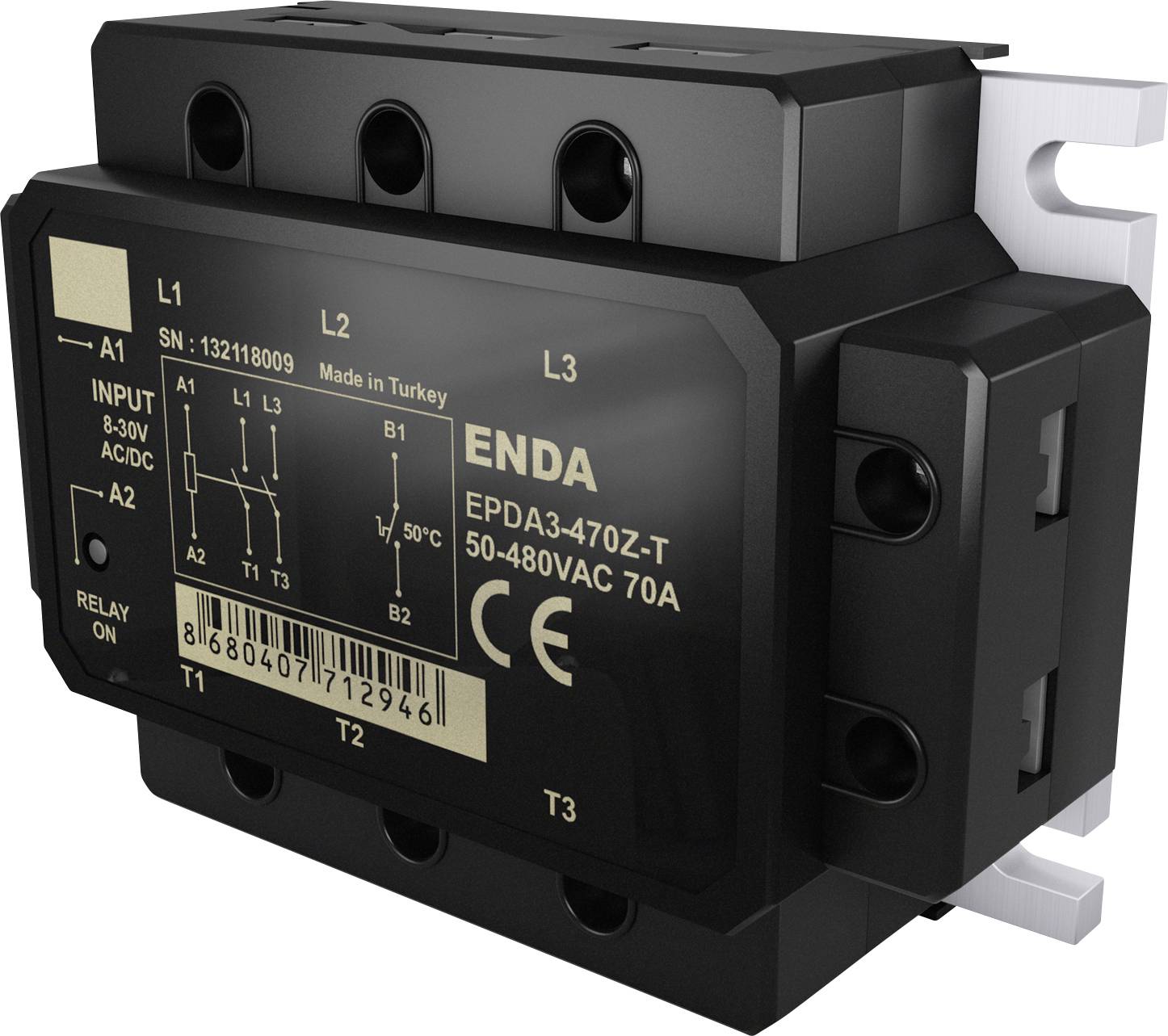

Enda EPDA3-440Z-T three-phase semi-conductor relay for panel mounting
- Three phases
- 8-30 V AC/DC INPUT VOLTAGE
- 50-480 V AC load voltage
- 25–40 A AC three-phase current
- LED display for input voltage
- Switches with the zero-crossing of the alternating voltage
- Applicable for three-phase loads
- Varistor protection for peak voltages
- Fan control thermostat
- CE-labeled according to EN standards
- This text is machine translated.
Technical specifications
- Three-pole
- Zero-cross
- Type
EPDA3-440Z-T
- Connection
Screws
- Control voltage (min.)
6 V AC
6 V DC
- Control voltage (max.)
30 V AC
30 V DC
- Control voltage range
6, 6 - 30, 30 V AC, V DC
- Control current (max.)
17 mA
- Surge current (max.)
400 A
- Switching voltage (min.)
50 V AC
- Switching voltage (max.)
480 V AC
- Current load (max.)
40 A
- Output voltage (min.)
50 V
- Output voltage (max.)
480 V
- Max. output current
400 A
- Min. temperature
-25 °C
- Max. temperature
60 °C
IP20
- Width
103 mm
- Height
74 mm
- Depth
37 mm
- Weight
200 g
- Industrial packaging
Yes
- Content
1 pc(s)
- Permanent current (max.)
40 A
- Nominal control voltage
8 V AC
8 V DC
30 V AC
30 V DC
- Product type
SSR
Documents & Downloads
Datasheet
Datasheet 3527744 Enda SSR EPDA3-440Z-T 40 A Switching voltage (max.): 480 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3527744 Enda SSR EPDA3-440Z-T 40 A Switching voltage (max.): 480 V AC 1 pc(s)
Description
Scope of delivery
- EPDA3-440Z-T three-phase semiconductor relay
