Enda SSR ERAA1-225Z 25 A Switching voltage (max.): 320 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSR
Control voltage (min.)
90 V AC
Control voltage (max.)
240 V AC
Switching voltage (max.)
320 V AC
Current load (max.)
25 A
Datasheet (PDF)
Number
Total (€ 38.65 / piece)
€ 38.65
plus VAT.
Only 1 Piece(s) available
Highlights & Details

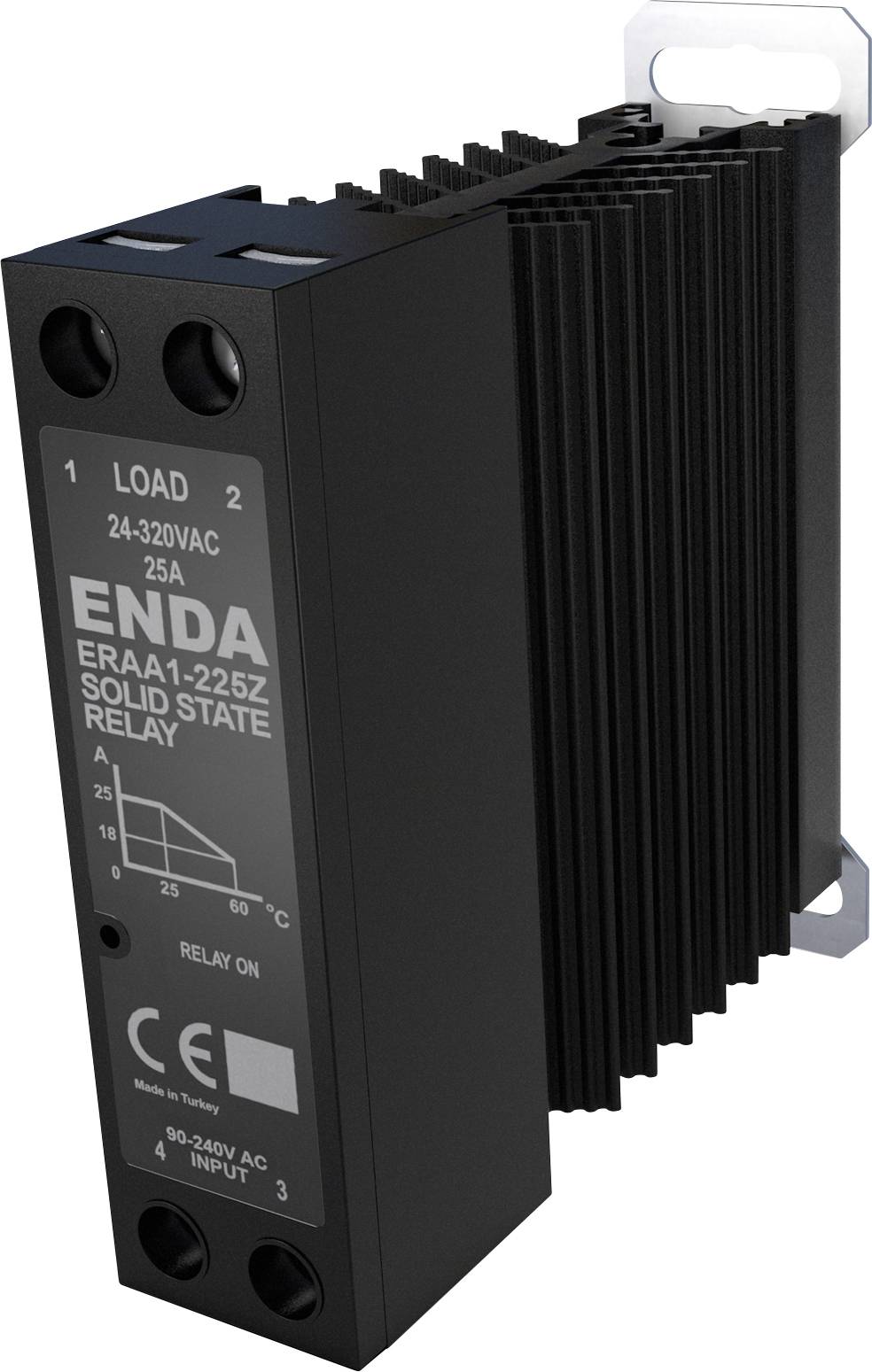

Enda ERAA1-225Z SSR solid state relay for rail mounting
- Single phase
- SSR, zero-crossing
- 90–240 VAC input voltage
- 25 A AC load current
- 320 V AC load voltage
- LED display for input voltage
- Applicable for three-phase loads
- Varistor protection for peak voltages
- CE-labeled according to EN standards
- This text is machine translated.
Technical specifications
- Insulation voltage 2500 Vrms (I/O for 1 min)
- Varistor protection: Integrated
- Tightening torque: Max. 1.2 Nm
- Mains frequency: 50/-60 Hz.
- Product type
SSR
- Type
ERAA1-225Z
- Connection
Terminal strip
- Control voltage (min.)
90 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
90 - 240 V AC
- Control current (max.)
8 mA
- Surge current (max.)
240 A
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
320 V AC
- Current load (max.)
25 A
- Output voltage (min.)
24 V
- Output voltage (max.)
320 V
- Max. output current
25 A
- Min. temperature
-25 °C
- Max. temperature
60 °C
IP20
- Width
24 mm
- Height
84 mm
- Depth
97 mm
- Weight
203 g
- Industrial packaging
Yes
- Electrical lifespan
Almost unlimited
- Permanent current (max.)
25 A
- Content
1 pc(s)
- Nominal control voltage
90 V AC
240 V AC
Documents & Downloads
Datasheet
Datasheet 3527750 Enda SSR ERAA1-225Z 25 A Switching voltage (max.): 320 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3527750 Enda SSR ERAA1-225Z 25 A Switching voltage (max.): 320 V AC 1 pc(s)
Description
Scope of delivery
- Enda ERAA1-225Z
