Enda SSR ERAA1-425Z 25 A Switching voltage (max.): 460 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSR
Control voltage (min.)
75 V AC
Control voltage (max.)
240 V AC
Switching voltage (max.)
460 V AC
Current load (max.)
25 A
Datasheet (PDF)
Number
Total (€ 39.49 / piece)
€ 39.49
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Enda ERAA1-425Z SSR-semi-conductor relay for rail mounting
- Single phase
- 25 A AC load current
- 480 V AC load voltage
- 90–240 VAC input voltage
- LED display for input voltage
- Switches with the zero-crossing of the alternating voltage
- Applicable for three-phase loads
- Varistor protection for peak voltages
- CE-labeled according to EN standards
Technical specifications
- ROHS compliant
- Insulation voltage 2500 Vrms between I/O connections for 1 min.
- LED indicator lights up if the input voltage AC is above 75V
- Product type
SSR
- Type
ERAA1-425Z
- Connection
Terminal strip
- Control voltage (min.)
75 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
75 - 240 V AC
- Control current (max.)
8 mA
- Surge current (max.)
240 A
- Switching voltage (min.)
50 V AC
- Switching voltage (max.)
460 V AC
- Current load (max.)
25 A
- Output voltage (min.)
50 V
- Output voltage (max.)
460 V
- Max. output current
25 A
- Min. temperature
-25 °C
- Max. temperature
60 °C
IP20
- Width
24 mm
- Height
84 mm
- Depth
97 mm
- Weight
203 g
- Industrial packaging
Yes
- Permanent current (max.)
25 A
- Content
1 pc(s)
- Nominal control voltage
90 V AC
240 V AC
Documents & Downloads
Datasheet
Datasheet 3527752 Enda SSR ERAA1-425Z 25 A Switching voltage (max.): 460 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3527752 Enda SSR ERAA1-425Z 25 A Switching voltage (max.): 460 V AC 1 pc(s)
Description

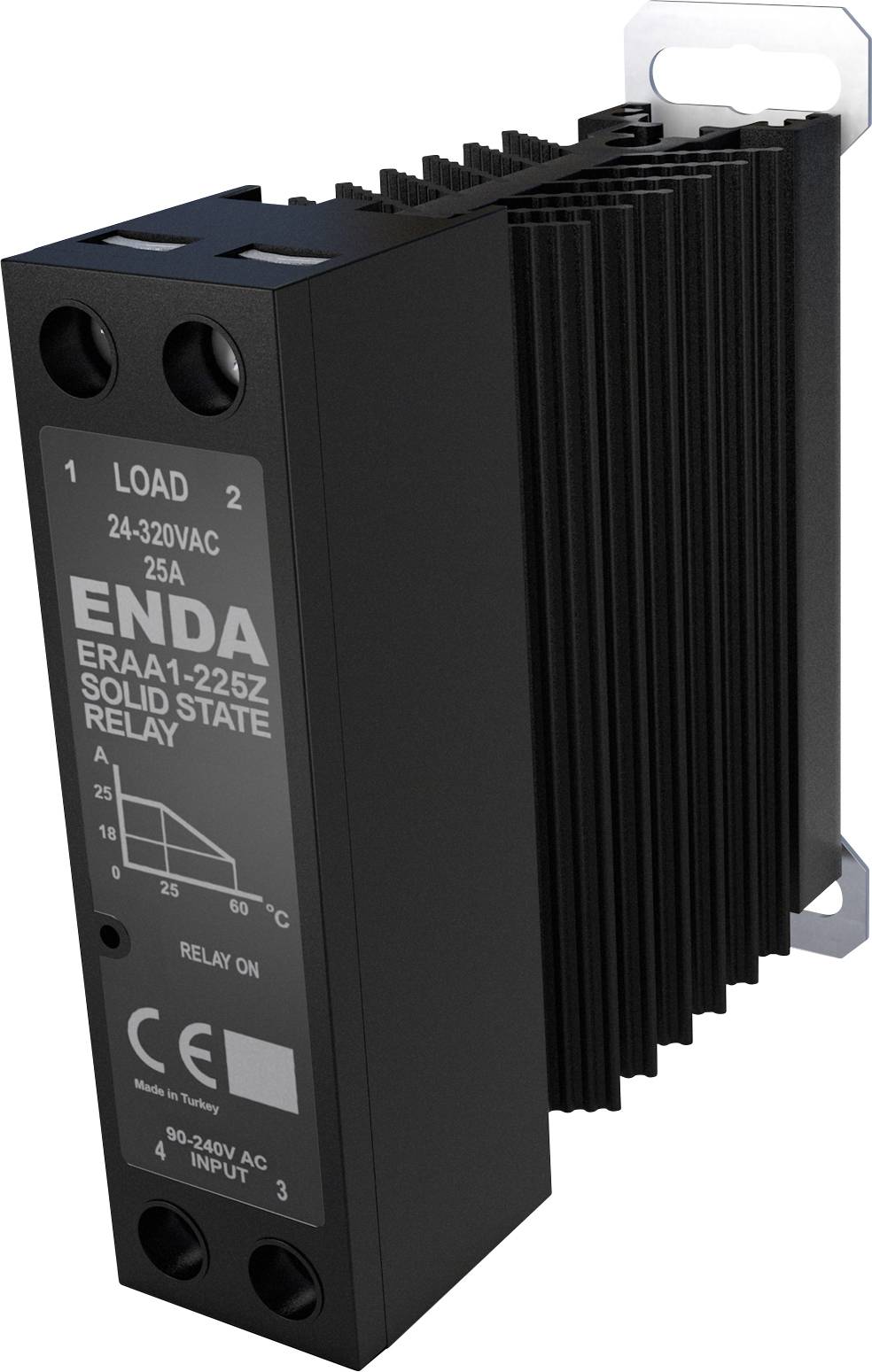

ERAA1-425Z semi-conductor relay (SSR) with integrated heat sink.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Enda ERAA1-425Z
