Enda SSR ERDA1-225Z 25 A Switching voltage (max.): 320 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSR
Control voltage (min.)
6 V AC
6 V DC
Control voltage (max.)
30 V AC
30 V DC
Switching voltage (max.)
320 V AC
Current load (max.)
25 A
Datasheet (PDF)
Number
Total (€ 38.65 / piece)
€ 38.65
plus VAT.
Only 6 Piece(s) available
Highlights & Details

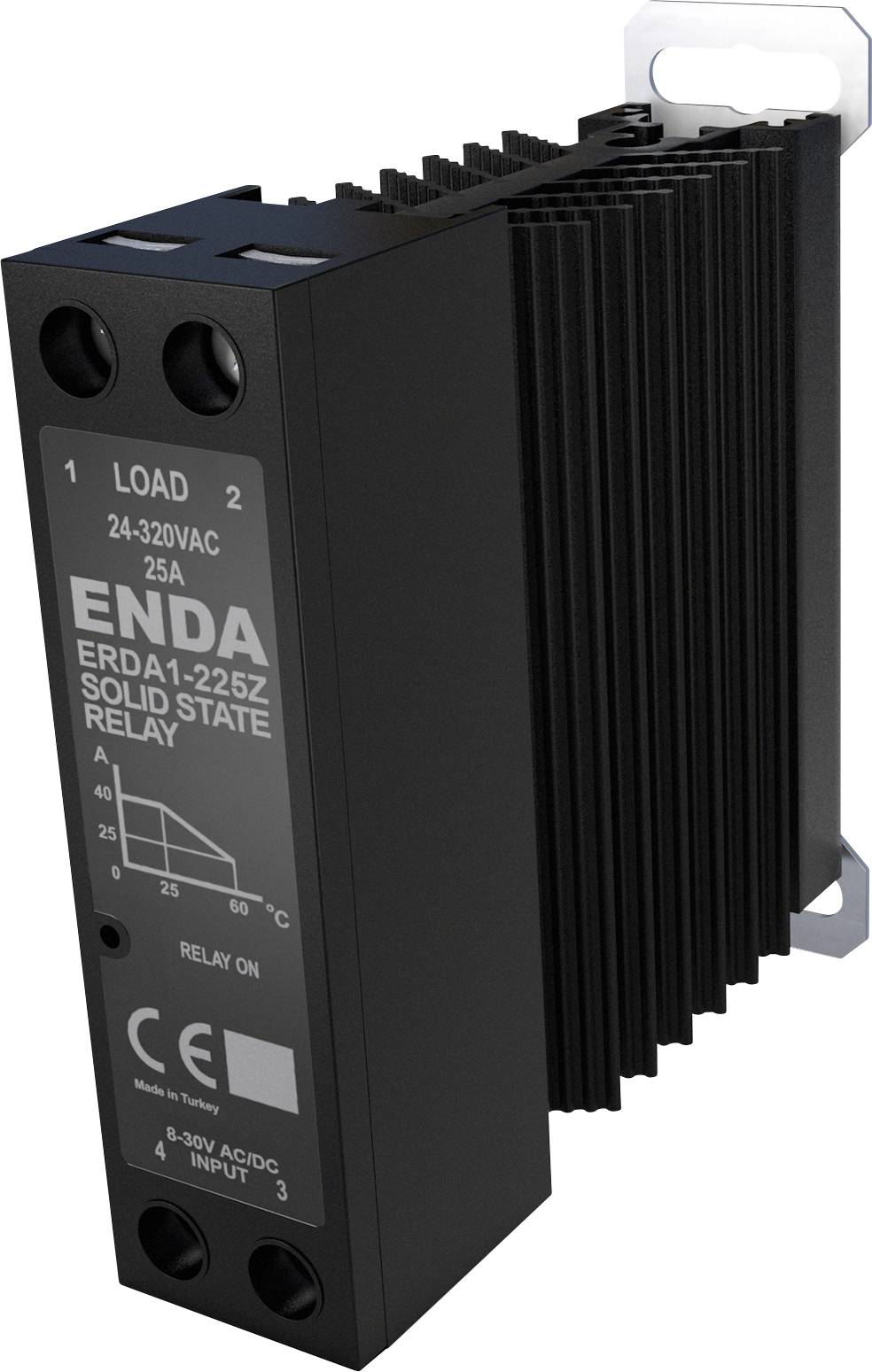

Enda ERDA1-225Z rail mount SSR 25A
- Single phase
- 8–30 V AC/DC INPUT VOLTAGE
- 24–320 V AC load voltage
- 25 A AC load current
- LED display for input voltage
- Switches with the zero-crossing of the alternating voltage
- Applicable for three-phase loads
- Varistor protection for peak voltages
- CE-labeled according to EN standards
Technical specifications
- DIN-rail mounting
- Built-in varistor protection
- Insulation voltage 2500Vrms
- Frequency 50°60Hz
- Product type
SSR
- Type
ERDA1-225Z
- Connection
Terminal strip
- Control voltage (min.)
6 V AC
6 V DC
- Control voltage (max.)
30 V AC
30 V DC
- Control voltage range
6, 6 - 30, 30 V AC, V DC
- Control current (max.)
17 mA
10 mA
- Surge current (max.)
240 A
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
320 V AC
- Current load (max.)
25 A
- Output voltage (min.)
24 V AC
- Output voltage (max.)
320 V AC
- Max. output current
25 A
- Min. temperature
-25 °C
- Max. temperature
60 °C
IP20
- Width
24 mm
- Height
84 mm
- Depth
97 mm
- Weight
203 g
- Industrial packaging
Yes
- Permanent current (max.)
25 A
- Content
1 pc(s)
- Nominal control voltage
8 V AC
8 V DC
30 V AC
30 V DC
Documents & Downloads
Datasheet
Datasheet 3527746 Enda SSR ERDA1-225Z 25 A Switching voltage (max.): 320 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3527746 Enda SSR ERDA1-225Z 25 A Switching voltage (max.): 320 V AC 1 pc(s)
Description
ERDA1-225Z is a single pole solid state relay (SSR) with integrated heat sink for DIN rail mounting and AC/DC control.
This text is machine translated.
This text is machine translated.
Scope of delivery
- ERDA1-225Z
