Buy Enda SSR ESAA1-240Z 40 A Switching voltage (max.): 320 V AC 1 pc(s)

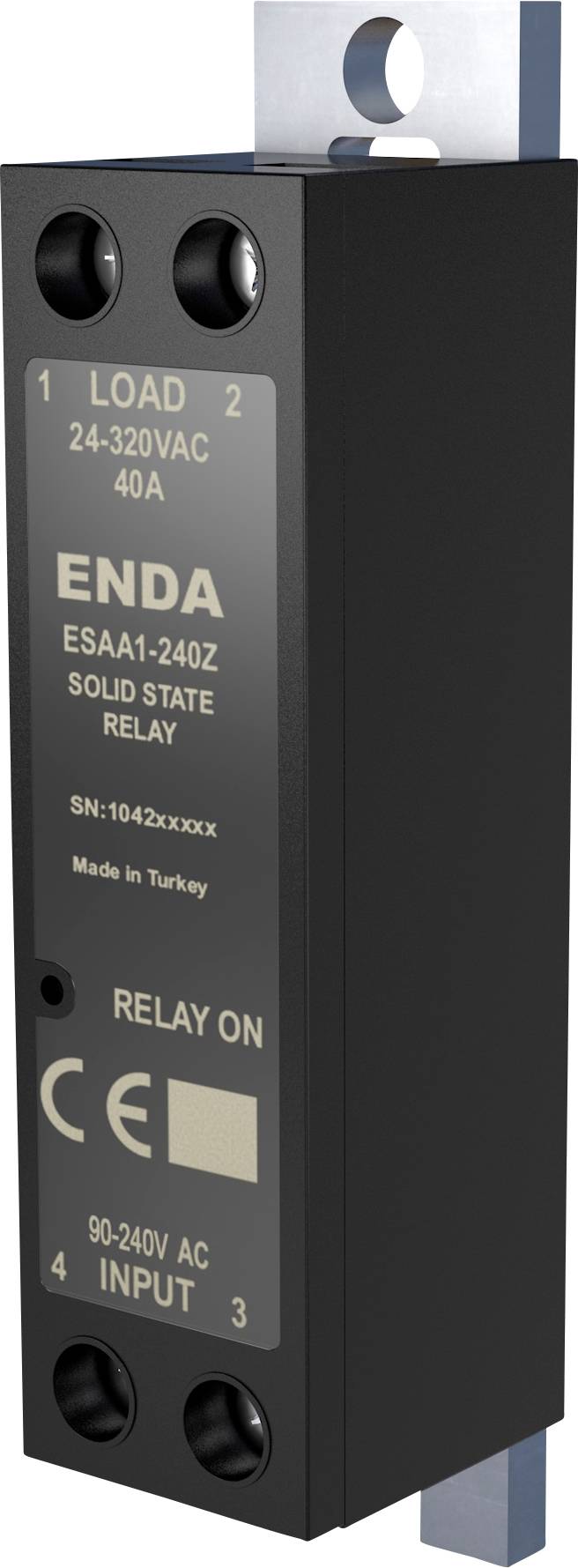

Solid state relay labeled 'ENDA ESAA1-240Z', with load specifications of '24-320VAC 40A'. Features indicator 'Relay On' and 'Made in Turkey'.

Product type

SSR

Control voltage (min.)

75 V AC

Control voltage (max.)

240 V AC

Switching voltage (max.)

320 V AC

Current load (max.)

40 A

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 36.97 / piece)

€ 36.97

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Enda ESAA1-240Z Narrow SSR, semi-conductor relay for panel mounting

40 A AC load current
320 V AC load voltage
90–240 VAC input voltage
LED display for input voltage
Switches at zero-crossing/random continuity of the alternating voltage
Applicable for three-phase loads
Varistor protection for peak voltages
CE-labeled according to EN standards
This text is machine translated.

Technical specifications

Zero cross (zero crossing)

Product type: SSR

Type: ESAA1-240Z

Control voltage (min.): 75 V AC

Control voltage (max.): 240 V AC

Control voltage range: 75 - 240 V AC

Control current (max.): 8 mA

Surge current (max.): 400 A

Switching voltage (min.): 24 V AC

Switching voltage (max.): 320 V AC

Current load (max.): 40 A

Output voltage (min.): 24 V

Output voltage (max.): 320 V

Max. output current: 40 A

Min. temperature: -25 °C

Max. temperature: 60 °C

: IP20

Width: 24 mm

Height: 101 mm

Depth: 29 mm

Weight: 95 g

Industrial packaging: Yes

Permanent current (max.): 40 A

Content: 1 pc(s)

Nominal control voltage: 90 V AC
240 V AC
