Buy Enda SSR ESDA1-225Z 25 A Switching voltage (max.): 320 V AC 1 pc(s)

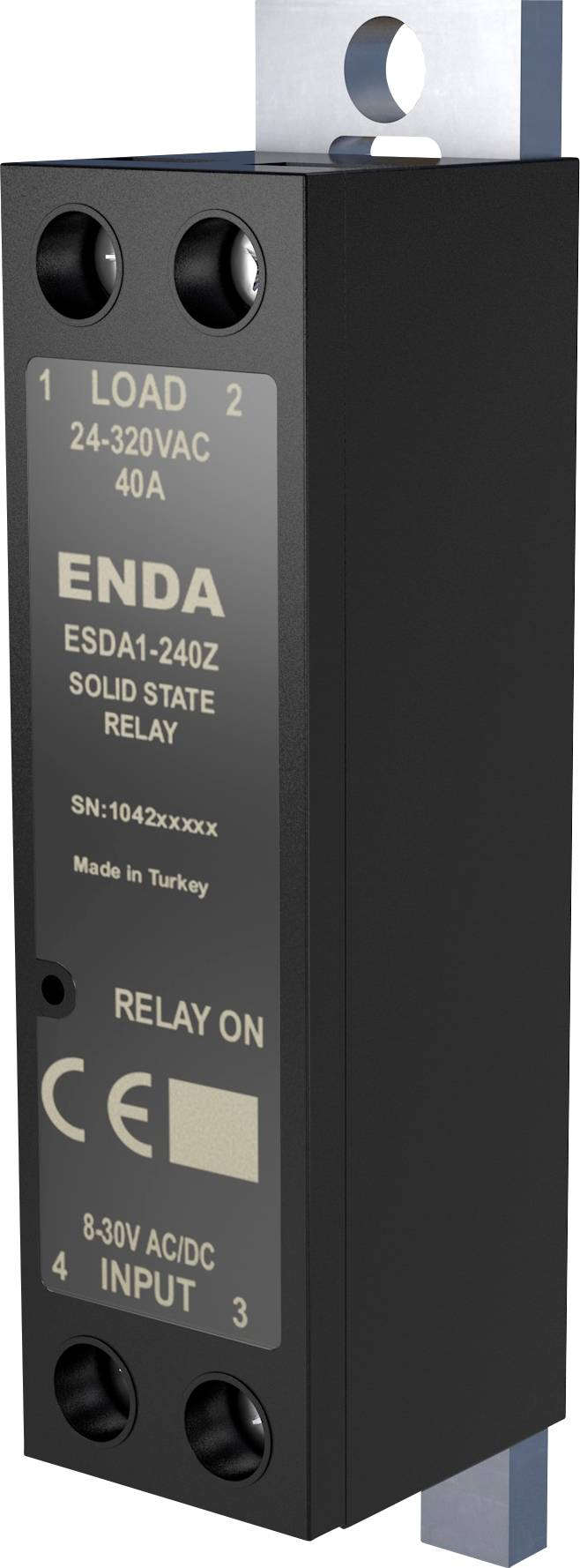

Solid state relay labeled 'ENDA ESDA1-240Z', with input/output specifications and safety marks. Black rectangular device with screw mounts.

Product type

SSR

Control voltage (min.)

6 V AC

6 V DC

Control voltage (max.)

30 V AC

30 V DC

Switching voltage (max.)

320 V AC

Current load (max.)

25 A

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 36.13 / piece)

€ 36.13

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Enda ESDA1-225Z narrow SSR PCB relay for panel mounting

Single phase
8–30 V AC/DC INPUT VOLTAGE
24–320 V AC load voltage
Zero/random transition
LED display for input voltage
Applicable for three-phase loads
Varistor protection for peak voltages
CE-labeled according to EN standards
This text is machine translated.

Technical specifications

Built-in varistor protection
Insulation voltage: 2500Vrms between I/O connections for 1 min.

Product type: SSR

Type: ESDA1-225Z

Connection: Screws

Control voltage (min.): 6 V AC
6 V DC

Control voltage (max.): 30 V AC
30 V DC

Control voltage range: 6, 6 - 30, 30 V AC, V DC

Control current (max.): 17 mA

Surge current (max.): 240 A

Switching voltage (min.): 24 V AC

Switching voltage (max.): 320 V AC

Current load (max.): 25 A

Output voltage (min.): 24 V

Output voltage (max.): 320 V

Max. output current: 25 A

Min. temperature: -25 °C

Max. temperature: 60 °C

: IP20

Width: 24 mm

Height: 101 mm

Depth: 29 mm

Weight: 95 g

Industrial packaging: Yes

Permanent current (max.): 25 A

Content: 1 pc(s)
