Enda SSR ESDA1-240Z 40 A Switching voltage (max.): 320 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSR
Control voltage (min.)
6 V AC
6 V DC
Control voltage (max.)
30 V AC
30 V DC
Switching voltage (max.)
320 V AC
Current load (max.)
40 A
Datasheet (PDF)
Number
Total (€ 38.65 / piece)
€ 38.65
plus VAT.
Highlights & Details

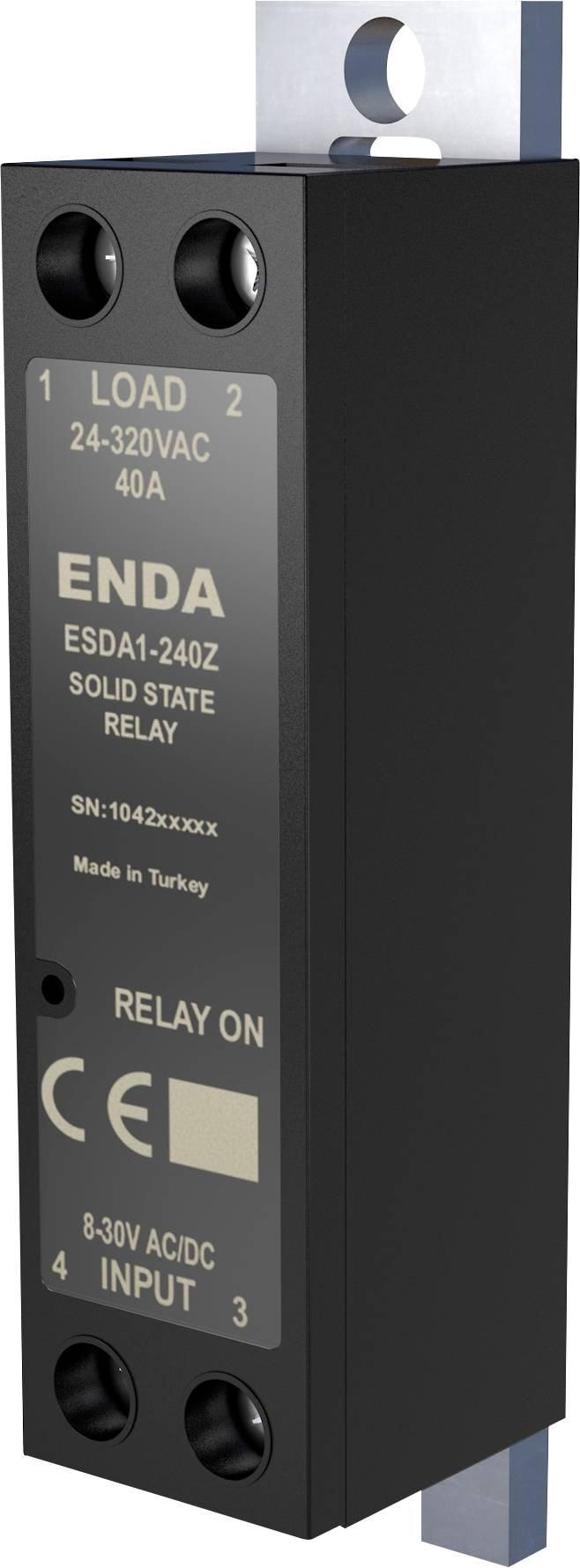

Enda ESDA1-240Z Narrow SSR semiconductor relay for panel mounting
- Single phase
- 8–30 V AC/DC INPUT VOLTAGE
- 24–320 V AC load voltage
- LED display for input voltage
- Switches at zero-crossing/random continuity of the alternating voltage
- Applicable for three-phase loads
- Varistor protection for peak voltages
- CE-labeled according to EN standards
- This text is machine translated.
Technical specifications
- Insulation voltage: 2500Vrms between I/O connections for 1 min.
- Mains frequency: 50/-60Hz.
- Product type
SSR
- Type
ESDA1-240Z
- Connection
Screws
- Control voltage (min.)
6 V AC
6 V DC
- Control voltage (max.)
30 V AC
30 V DC
- Control voltage range
6, 6 - 30, 30 V AC, V DC
- Control current (max.)
17 mA
10 mA
- Surge current (max.)
400 A
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
320 V AC
- Current load (max.)
40 A
- Output voltage (min.)
24 V
- Output voltage (max.)
320 V
- Max. output current
40 A
- Min. temperature
-25 °C
- Max. temperature
60 °C
IP20
- Width
24 mm
- Height
101 mm
- Depth
29 mm
- Weight
95 g
- Industrial packaging
Yes
- Permanent current (max.)
40 A
- Content
1 pc(s)
- Nominal control voltage
8 V AC
8 V DC
30 V AC
30 V DC
