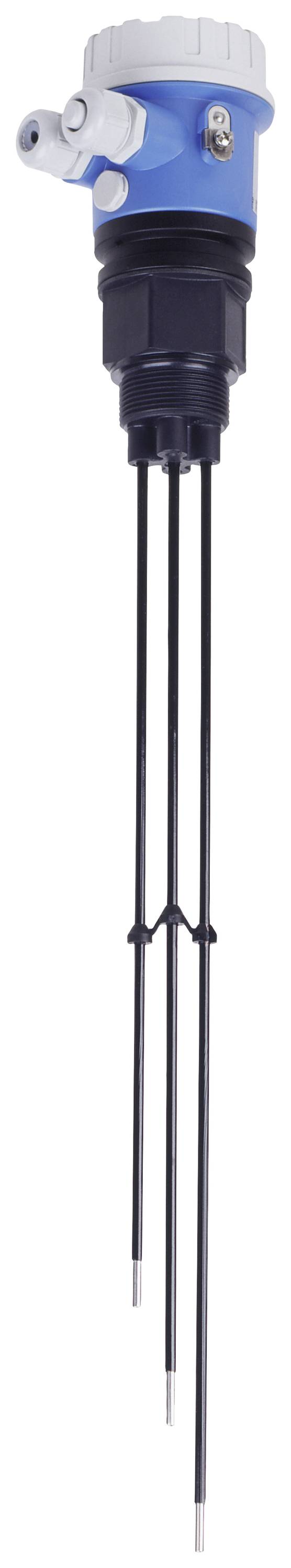

Endress+Hauser Conductive level gauge FTW31 FTW31-A1A5CA0A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Conductive level gauge
Packaging type
Piece
Type
FTW31
Connector
Cable gland (M20)
Material
Stainless steel
Number
Total (€ 155.45 / piece)
€ 155.45
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Conductive liquid level switch Liquipoint T FTW31-A1A5CA0A
- Approval: Non-explosive area
- Process connection: Thread ISO228 G1-1/2, PPS
- Measuring point:5x rod, 316L
- Probe length: 1 m; 316L
- Cable inlet: Gland M20
- Electronic output: Separate instrumentation
Technical specifications
- Medium conductance min. 10 µS/cm
- Max. Tensile strength 1000 N
- Process pressure: Up to 10 bar
- Packaging type
Piece
- Product type
Conductive level gauge
- Type
FTW31
- Connector
Cable gland (M20)
- Material
Stainless steel
- Material properties
rust-proof
- Enclosure material
Stainless steel
- Max. operating pressure
10 bar
- Length
1 m
- Content
1 pc(s)
- RoHS-compliant
Yes
- Thread size
G1 1/2"
- Max. temperature
+100 °C
- Min. temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2886194 Endress+Hauser Conductive level gauge FTW31 FTW31-A1A5CA0A 1 pc(s)
Description
The Lilipoint FTW31 is a rod probe for sensor position detection in conductive liquids. With up to 5 rods it offers numerous measuring possibilities like overfill protection, dry run protection, two-point control of pumps or multi-point detection. The device does not have to be calibrated.
This text is machine translated.
This text is machine translated.
Features
- Capture up to five points with one probe
- Two point control and additional MAX and MIN detection
