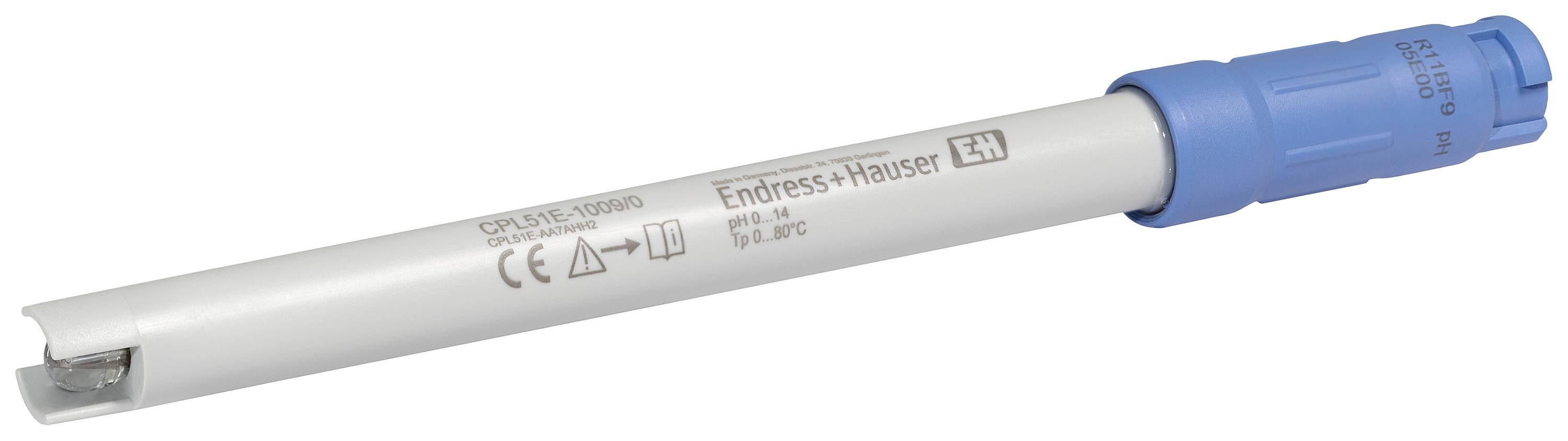

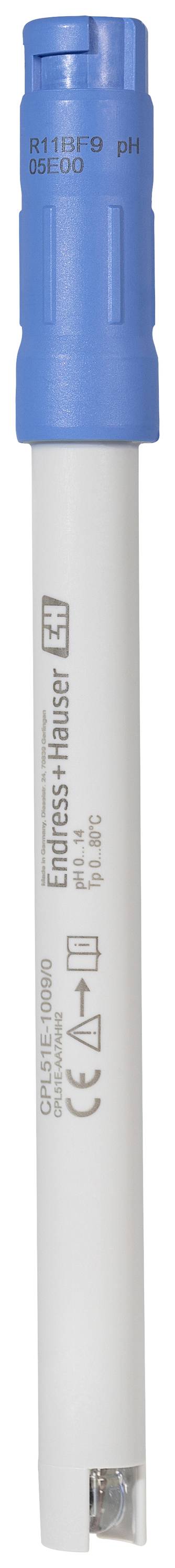

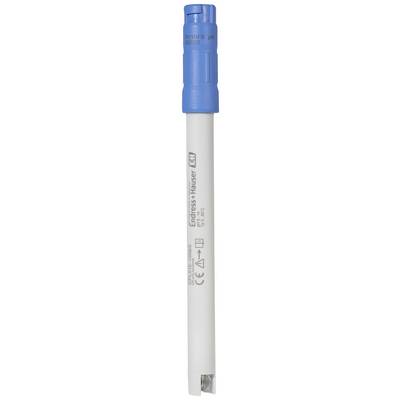

Endress+Hauser CPL51E-8A7AHH2 CPL51E Digital pH sensor 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 298.32 / piece)
€ 298.32
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Digital pH sensor for sampling 120 mm
- Application range: 0-14 pH, -5 to +80 °C, 0.8-1.2 bar (ABS.)
- Shaft length 120mm
- Electrode type: Basic design, zero point Eo=7.0 temperature sensor NTC 30k
- Approvals: Non-explosive area, + UKCA marking
- Reference system: Open junction, 3 M KCL, AG/AgCl
Technical specifications
- Protection class: IP68
- Measurement range 0 - 14 pH
- Process temperature: -5 °C to +80 °C.
- Product dimensions Ø 12 mm
- Temperature sensor NTC 30kΩ
- Product type
Digital pH sensor
- Compatible with
Endress+Hauser
- Length
120 mm
- Type
CPL51E
Documents & Downloads
Datasheet
Datasheet 2886064 Endress+Hauser CPL51E-8A7AHH2 CPL51E Digital pH sensor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2886064 Endress+Hauser CPL51E-8A7AHH2 CPL51E Digital pH sensor 1 pc(s)
User & Safety Instructions 2886064 Endress+Hauser CPL51E-8A7AHH2 CPL51E Digital pH sensor 1 pc(s)
Description
With its rugged plastic shaft and the contactless, inductive Memosens CPL51E cable connection, Memosens CPL51E can be used for analysis of process samples directly in the field or in the laboratory. The sensor is delivered pre-calibrated and is directly ready for use. It is suitable Ideal for use with the mobile handheld device Liquiline Mobile CML18 and can be used without any additional settings.
This text is machine translated.
This text is machine translated.
Features
- The Memosen 2.0 CPL51E pH-sensor with rugged plastic shaft can be used for the analysis of process samples directly in the process as well as in the laboratory
- PH sensor for drinking water and waste water applications
- Polymerschaft protects the sensor against breakage
- Open connection point to minimize the risk of clogging
