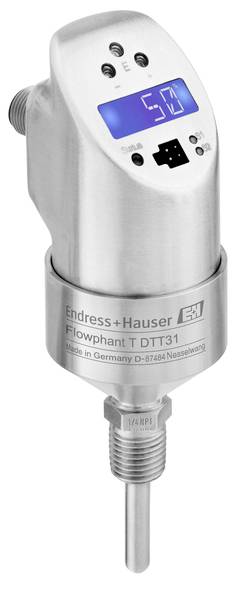

Endress+Hauser DTT31 DTT31-A1A111AE2AAA Operating voltage (range): 18 - 30 V DC Reading range: 0.03 - 3.0 m/s 1 pc(s)
EAN:
Part number:
Item no:
Min. operating voltage
18 V DC
Max. operating voltage
30 V DC
Reading range (max.)
3.0 m/s
Type
DTT31
Operating voltage
18 - 30 V DC
Number
Total (€ 323.53 / piece)
€ 323.53
plus VAT.
Highlights & Details
Flow switch Flowfant® DT31-A1A111AE2AAA 18-30VDC; 1x switch PNP plug M12 G1/2 external thread ISO228; 316L
- Approval: Ex-free range
- Electrical connection: M12 connector
- Auxiliary power; output: 18-30VDC; 1x switch PNP
- Display: Digital
- Application; measurement range: Liquid, 20...+85oC, 0.03-3m/s.
- Adjustment: On site
- Process connection; material: G1/2 External thread ISO228; 316L
- Insertion length L; Diameter D: 30 mm; 6mm
- Additional equipment; material certificate: Basic version; not required
- Design: Standard, documentation in German
Technical specifications
- Type
DTT31
- Min. operating voltage
18 V DC
- Max. operating voltage
30 V DC
- Operating voltage
18 - 30 V DC
- Features
LED indicator
- Connector
M12
- Outputs
PNP
- Max. media temperature
85 °C
- Reading range (min.)
0.03 m/s
- Reading range (max.)
3.0 m/s
- Reading range
0.03 - 3.0 m/s
- Length
30 mm
- (Ø)
6 mm
- Dim
(Ø x L) 6 mm x 30 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988287 Endress+Hauser DTT31 DTT31-A1A111AE2AAA Operating voltage (range): 18 - 30 V DC Reading range: 0.03 - 3.0 m/s 1 pc(s)
User & Safety Instructions 2988287 Endress+Hauser DTT31 DTT31-A1A111AE2AAA Operating voltage (range): 18 - 30 V DC Reading range: 0.03 - 3.0 m/s 1 pc(s)
Description
The switch is designed for the safe measurement, display and monitoring of the relative mass flow of liquid media practically without pressure loss. You can choose between one or two switching outputs as well as a switching output and a standard analog output for flow or temperature values. Typical applications are: Monitoring of cooling water circuits or lubrication systems of pumps and heat exchangers or monitoring of leaks in process lines.
This text is machine translated.
This text is machine translated.
Features
- Virtually no pressure loss
- Function check and process information on site thanks to digital display on the device
- 310° rotating housing top and rotating display enable the reading in all positions
