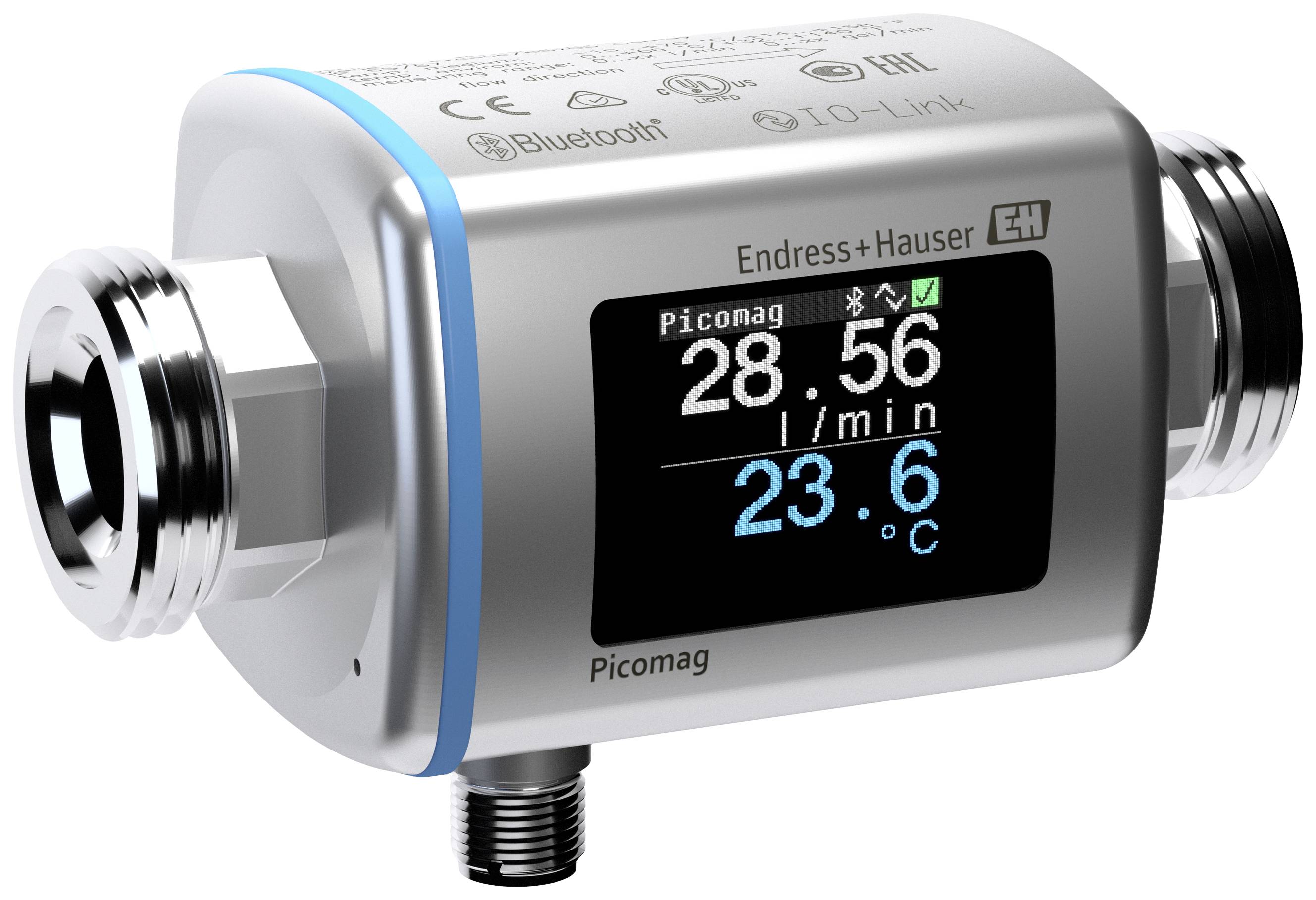

Buy Endress+Hauser Flow meter DMA20 DMA20-AAABA1 Operating voltage (range): 18 - 30 V Reading range: 0.1 - 75 l/min 1 pc(s)

Endress+Hauser Flow meter DMA20 DMA20-AAABA1 Operating voltage (range): 18 - 30 V Reading range: 0.1 - 75 l/min 1 pc(s)-0

Image similar

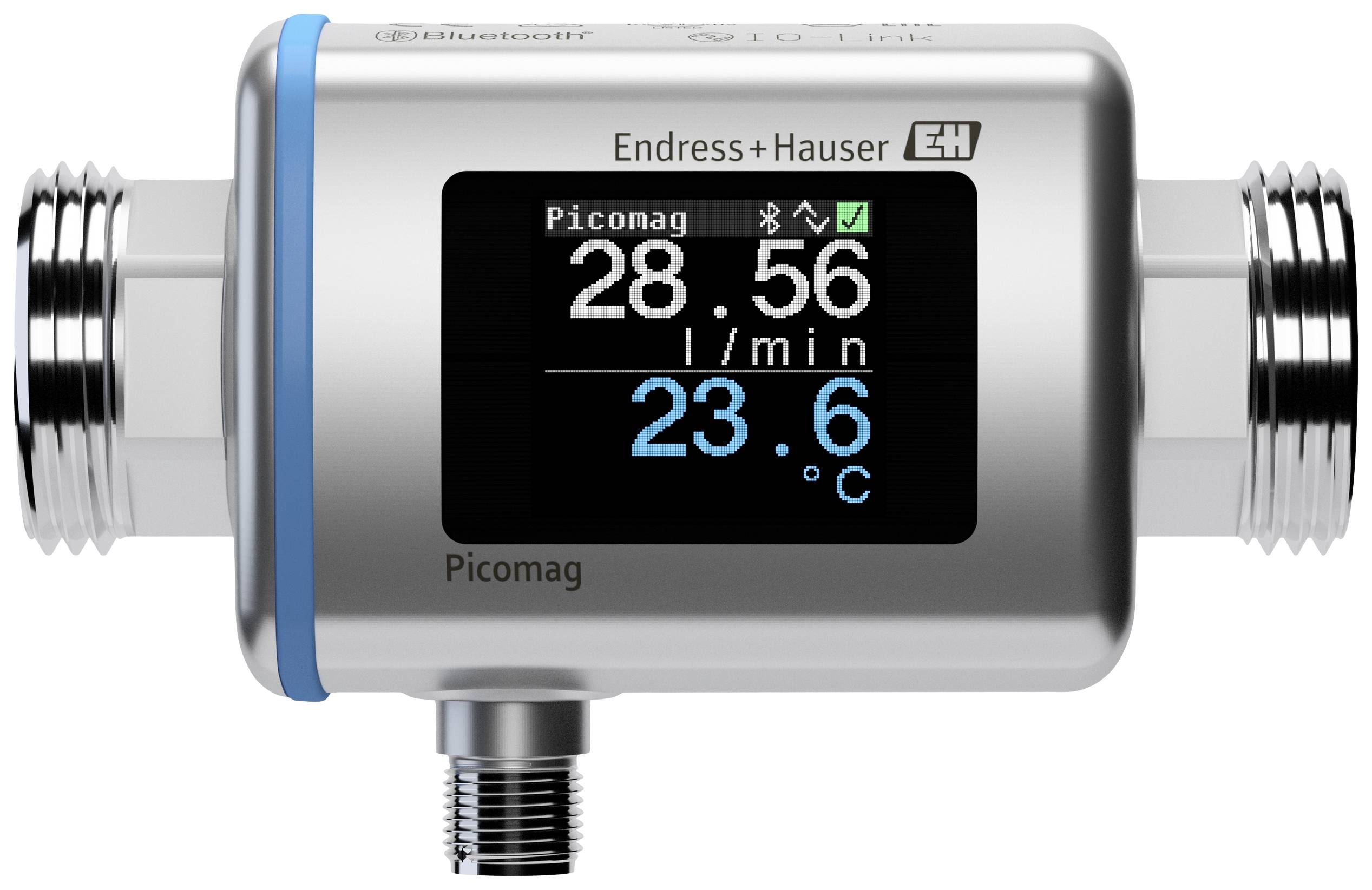

Compact flow measurement device with display showing '28.56 l/min' and '23.6 °C'. Robust, cylindrical, for industrial applications.

1/2

Image similar

Product type

Flow meter

Min. operating voltage

18 V

Max. operating voltage

30 V

Reading range (max.)

75 l/min

Type

DMA20

Fast track dispatch on Thu, 1 Oct

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 545.38 / piece)

€ 545.38

plus VAT.

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Measuring range: Up to 750 l/min
Measurement temperature range --10°C to +70°C.
Output: Current 4-20 mA, impulse, switching output, voltage 2-10 V
Inputs: Status input

Product type: Flow meter

Type: DMA20

Min. operating voltage: 18 V

Max. operating voltage: 30 V

Operating voltage: 18 - 30 V

Material: Stainless steel

Enclosure material: Stainless steel

Max. operating pressure: 16 bar

Accuracy ±: 0.1 %

Reading range (min.): 0.1 l/min

Reading range (max.): 75 l/min

Reading range: 0.1 - 75 l/min

: IP65/67

Min. ambient temperature: +10 °C

Max. ambient temperature: +60 °C

Content: 1 pc(s)

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2886080 Endress+Hauser Flow meter DMA20 DMA20-AAABA1 Operating voltage (range): 18 - 30 V Reading range: 0.1 - 75 l/min 1 pc(s)

Description

The Picomag DMA20 (diameter DN20 3/4") is a compact magnetic inductive flow meter that simultaneously measures flow, temperature and conductivity. The device is suitable for applications in secondary circuits with conductive fluids and the bidirectional measurement principle is almost independent of pressure, density, temperature and viscosity. The wireless connection to the SmartBlue app via Bluetooth® ensures quick and easy operation, maintenance and start-up.

This text is machine translated.
