Buy Endress+Hauser FTL33-AA4M3AB1GJRM 1 pc(s)

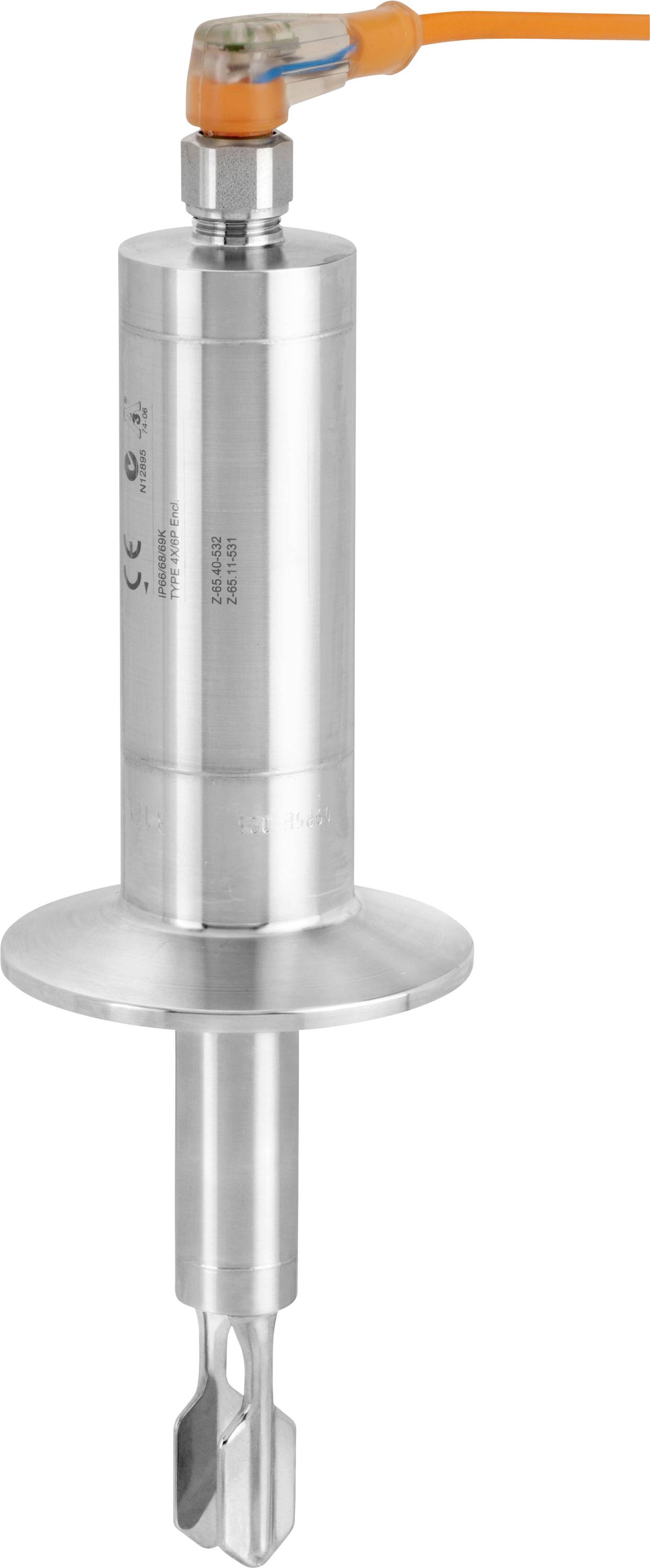

A stainless steel industrial sensor with an orange cable attached at the top, designed for processing applications.

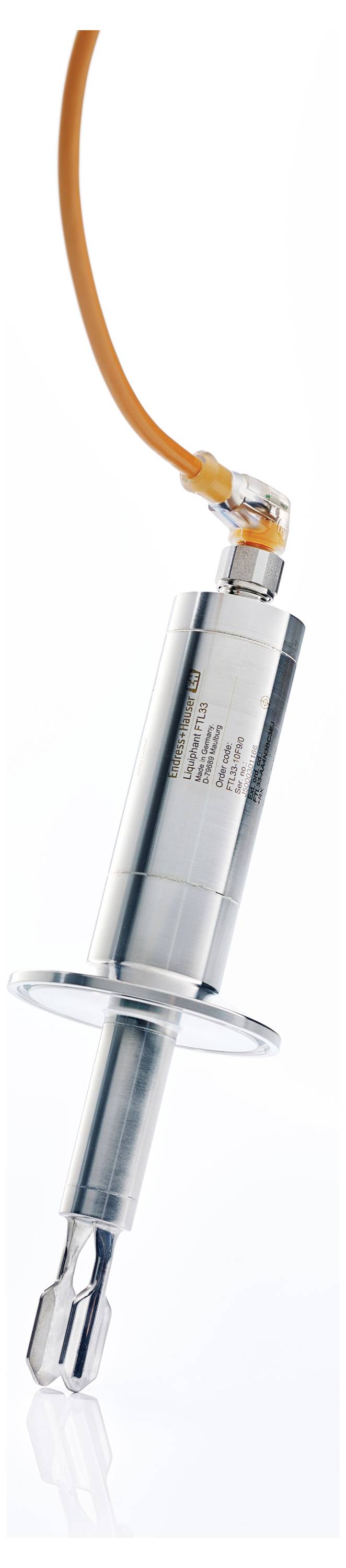

Stainless steel industrial sensor with an orange cable, used for measuring pressure or temperature in industrial settings.

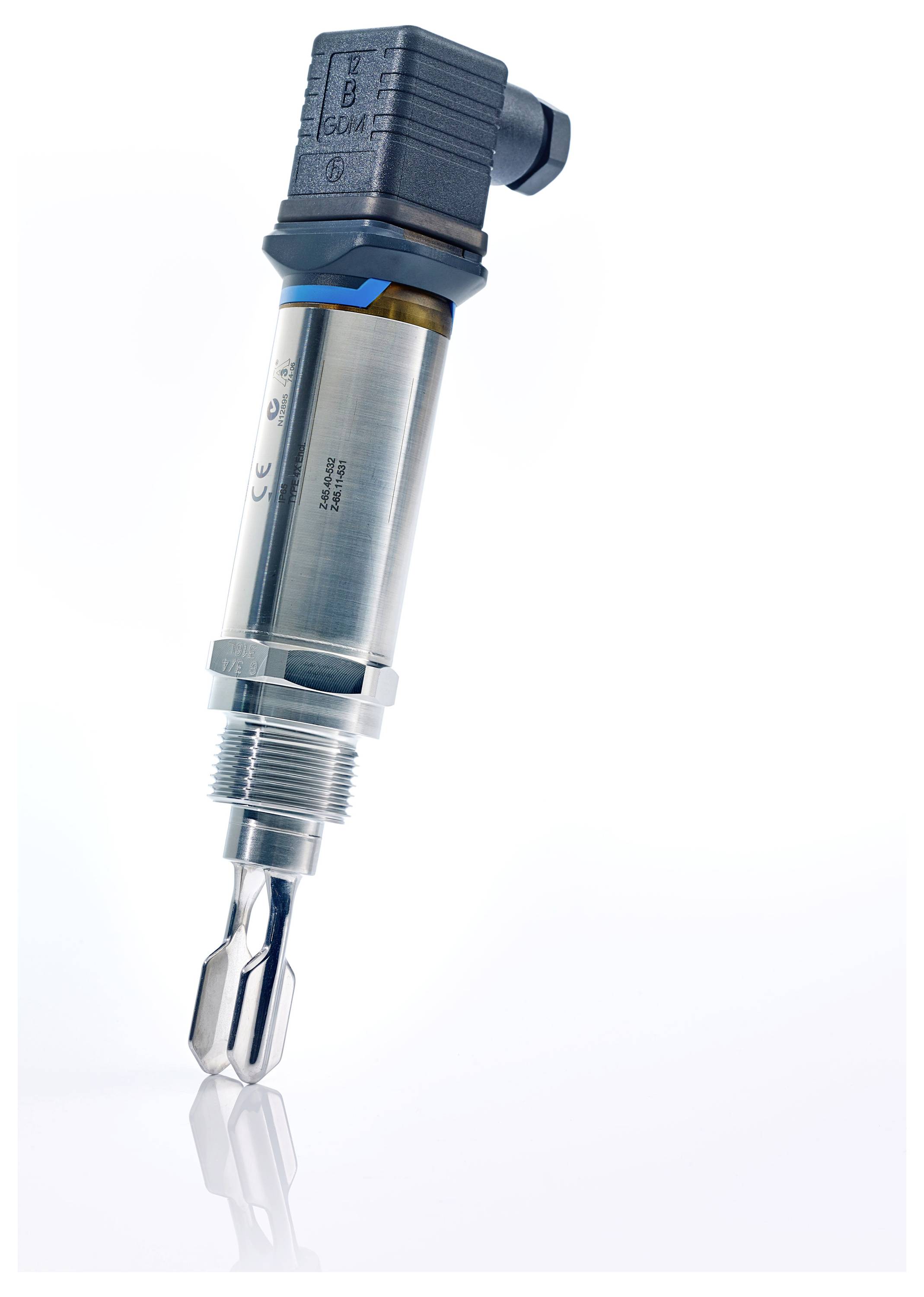

'Silver cylindrical industrial sensor with various certifications, connected at the top, likely used for measuring in industrial applications.'

1/3

Type

FTL33

Content

1 pc(s)

RoHS-compliant

Yes

Datasheet (PDF)

Dispatches on Mon, 28 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 402.52 / piece)

€ 402.52

plus VAT.

Report legal concerns

Highlights & Details

Vibron limit switches FTL33-AA4M3AB1GJRM 10-30VDC; 3-conductor PNP DIN11851 DN25 PN40, 316L plug M12, IP65/67

FTL33 is recommended for hygienic applications.
The smallest vibration sensor on the market.

Technical specifications

Power supply; output: 10-30VDC; 3-wire PNP
Process connection: Thread ISO228 G3/4, 316L, mounting > accessories welded adapter
Electrical connection: ISO4400 M16 solenoid connector, IP65 NEMA type 4X Encl.
Sensor design: Max. Process temperature 150oC/302oF

Type: FTL33

Content: 1 pc(s)

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 3527340 Endress+Hauser FTL33-AA4M3AB1GJRM 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3527340 Endress+Hauser FTL33-AA4M3AB1GJRM 1 pc(s)

Description

The Liquiphant FTL33 is a vibrato limit switch for liquids in hygienic applications. The FTL33 has been specially developed for applications in the food and beverage industry and is used for over-fill protection or as dry-run protection for pumps. The measurement is not influenced by conductivity, deposits, turbulence, flow or air bubbles and requires no calibration. The IO-Link capability enables a simple and time-saving configuration.

This text is machine translated.
