Buy Endress+Hauser FTL33-CA4U3ACW5JJAKB 1 pc(s)

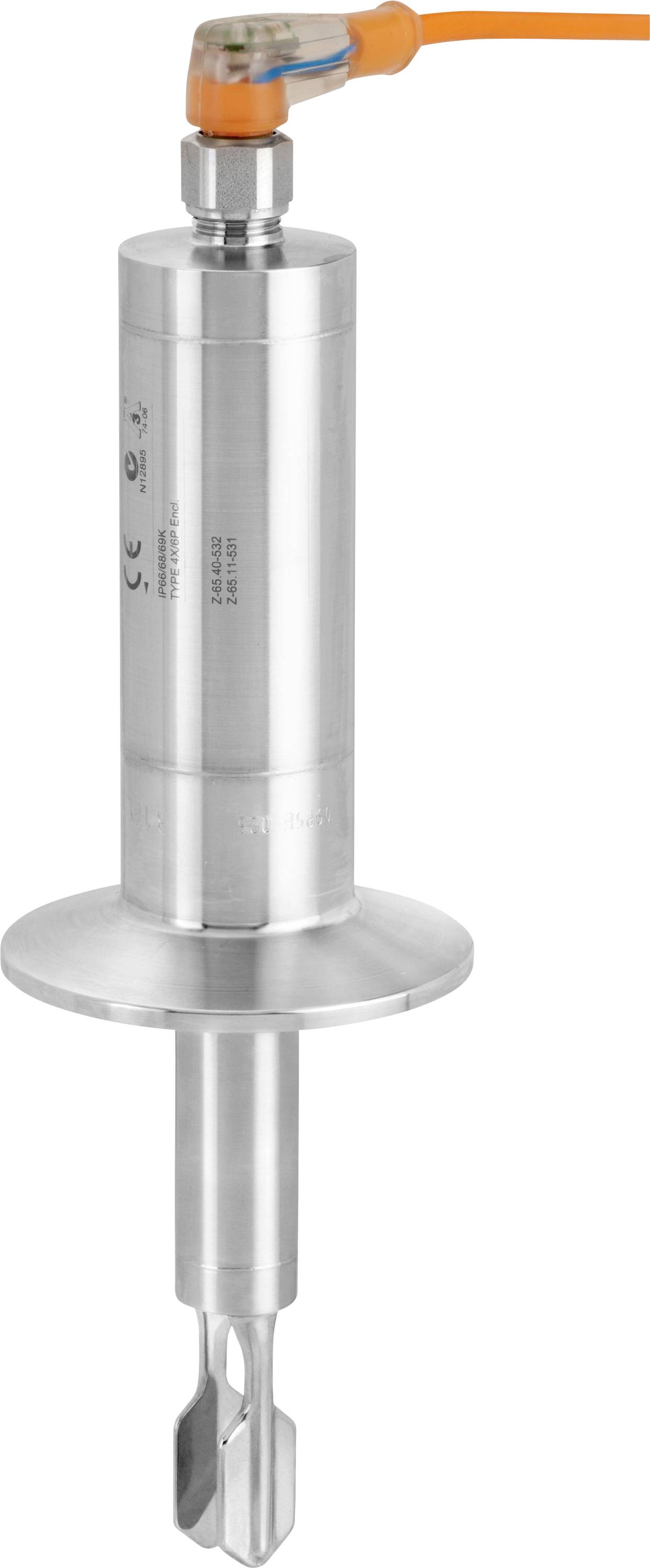

A stainless steel industrial sensor with a paddle shape and an orange cable attachment.

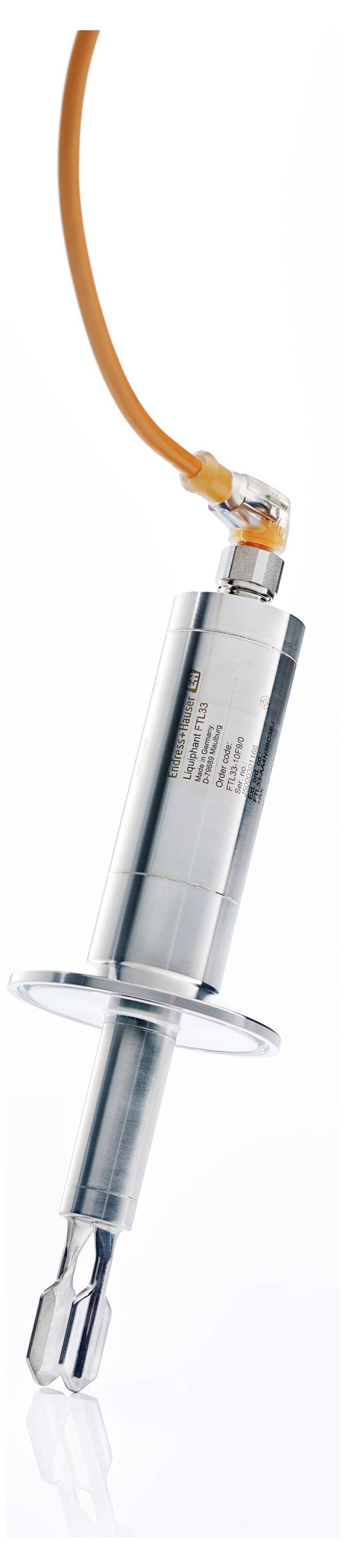

A stainless steel water sensor with an orange cable attached, used for industrial monitoring and measurement, is shown on a light background.

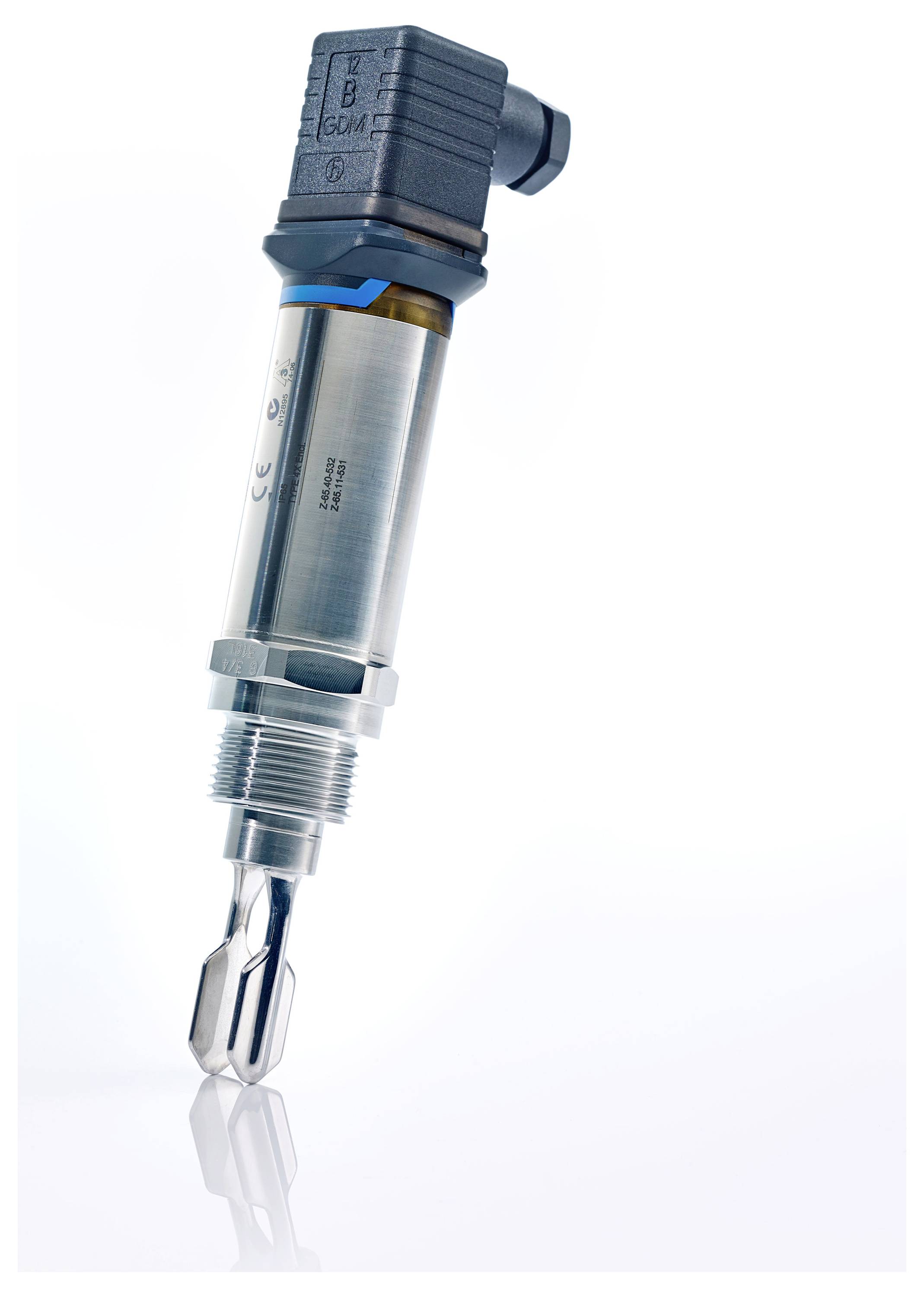

'Sensor device with metallic cylindrical body, black top, and extended probe, used for measuring levels or detecting changes in an environment.'

1/3

Type

FTL33

Content

1 pc(s)

RoHS-compliant

Yes

Datasheet (PDF)

Dispatches on Mon, 28 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 508.40 / piece)

€ 508.40

plus VAT.

Report legal concerns

Highlights & Details

Vibron limit switches FTL33-CA4U3ACW5JAKB 10-30VDC; 3-conductor PNP thread G3/4, 316L, M16 solenoid connector, IP65

FTL33 is recommended for hygienic applications.
The smallest vibration sensor on the market.

Technical specifications

Power supply; output: 10-30VDC; 3-wire PNP
Process connection: Front-flush, 316L, without slotted nut mounting > accessories welding adapter
Electrical connection: Connector M12, IP65/67 NEMA type 4X Encl.
Sensor design: Max. Process temperature 150oC/302oF

Type: FTL33

Content: 1 pc(s)

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 3527339 Endress+Hauser FTL33-CA4U3ACW5JJAKB 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3527339 Endress+Hauser FTL33-CA4U3ACW5JJAKB 1 pc(s)

Description

The Liquiphant FTL33 is a vibrato limit switch for liquids in hygienic applications. The FTL33 has been specially developed for applications in the food and beverage industry and is used for over-fill protection or as dry-run protection for pumps. The measurement is not influenced by conductivity, deposits, turbulence, flow or air bubbles and requires no calibration. The IO-Link capability enables a simple and time-saving configuration.

This text is machine translated.
