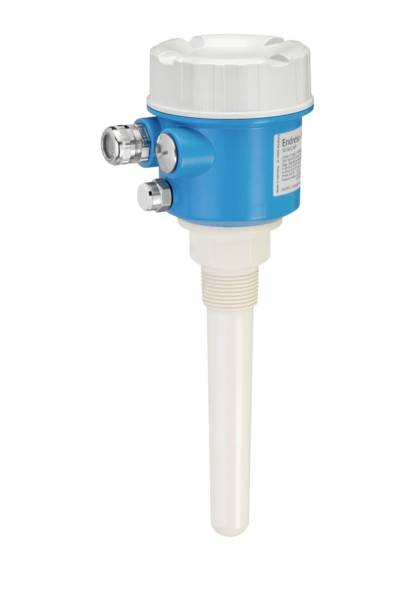

Endress+Hauser Level sensor Capacitive FTC260 FTC260-AA2C1 PNP
EAN:
Part number:
Item no:
Product type
Level sensor
Max. operating voltage
45 V DC
Contact type
1 PNP
Outputs
PNP
Model
Capacitive
Number
Total (€ 259.66 / piece)
€ 259.66
plus VAT.
14-day return policy included
Highlights & Details
Capacitive limit switch Minicap FTC260/262 FTC260-AA2C1 3-conductor PNP 10.8-45VDC thread EN10226 R1, PPS Ex-free area
- Approval: Ex-free range
- Process connection: Thread EN10226 R1, PPS
- Switching output: 3-conductor PNP 10.8-45VDC
- Housing; Cable entry: F14 Polyester IP66; Thread G1/2
- Additional equipment: Basic version
Technical specifications
- Product type
Level sensor
- Type
FTC260
- Min. operating voltage
10.8 V DC
- Max. operating voltage
45 V DC
- Operating voltage
10.8 - 45 V DC
- Contact type
1 PNP
- Outputs
PNP
- Enclosure material
Polyester
- Model
Capacitive
- Connector
G 1/2"
- Features
acid-resistant
- Min. temperature
-40 °C
- Max. temperature
70 °C
IP66
- Length
140 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988394 Endress+Hauser Level sensor Capacitive FTC260 FTC260-AA2C1 PNP
Description
The FTC260 Minicap is a rod probe for boundary layer detection in bulk materials such as cereal products, milk powder or cement. The device can be used without calibration and is particularly suitable for applications with aggressive media and strong adhesion.
This text is machine translated.
This text is machine translated.
Features
- Suitable for applications with aggressive media and strong adhesion
- Mechanically robust: No wearing parts, long service life, no maintenance
