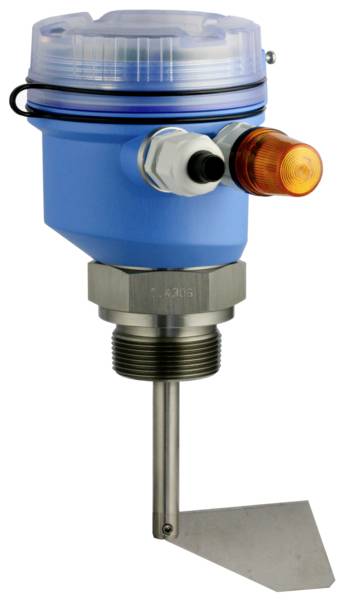

Endress+Hauser Level sensor Capacitive FTE20 FTE20-AA16AF11
EAN:
Part number:
Item no:
Product type
Level sensor
Max. operating voltage
28 V DC
Model
Capacitive
Connector
Clip
Type
FTE20
Number
Total (€ 457.98 / piece)
€ 457.98
plus VAT.
14-day return policy included
Highlights & Details
Rotary wing limit switch swing wing limit switch FTE20-AA16AF11 20-28VDC standard; 304 rope, 2000mm, can be shortened
- Approval: Ex-free range
- Process connection; material: G1-1/2 external thread; 303
- Design, length: Rope, 2000 mm, can be shortened
- Power supply: 20-28Vdc
- Measurement blades; material: Standard; 304
Technical specifications
- Product type
Level sensor
- Type
FTE20
- Min. operating voltage
20 V DC
- Max. operating voltage
28 V DC
- Operating voltage
20 - 28 V DC
- Enclosure material
Plastic
- Model
Capacitive
- Connector
Clip
- Cable length
2000 mm
- Min. temperature
-20 °C
- Max. temperature
60 °C
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988483 Endress+Hauser Level sensor Capacitive FTE20 FTE20-AA16AF11
User & Safety Instructions 2988483 Endress+Hauser Level sensor Capacitive FTE20 FTE20-AA16AF11
Description
The Soliswitch FTE20 is a swing arm switch for position detection in bulk materials. With its robust polymer housing and the compact design it is an ideal sensor for full, empty and demand messages. The optimized polymers make the device extremely robust and therefore suitable for use in areas subject to dust explosion hazards according to the latest standards.
This text is machine translated.
This text is machine translated.
Features
- Line-guided cable channel helps with the initial start-up, because it guides you to the clamps without clamping. A circuit diagram is included in the unit.
- User-friendly thanks to undetachable screw cap, rotating housing and tool-free lid opening.
- Easy testing during installation and - if necessary - quick fault search through function check very easily with a screwdriver. The paddle can be blocked without disassembling the device.
- The visual rotating monitoring through the transparent lid is especially helpful in environments endangered by dust explosion.
