Endress+Hauser Level sensor Capacitive FTE20 FTE20-BI13AE11
EAN:
Part number:
Item no:
Product type
Level sensor
Max. operating voltage
28 V DC
Model
Capacitive
Length
300 mm
Type
FTE20
Number
Total (€ 407.56 / piece)
€ 407.56
plus VAT.
14-day return policy included
Highlights & Details
Rotary wing limit switch swing arm limit switch FTE20-BI13AE11 20-28VDC standard; 304 shaft, 300mm
- Approval: ATEX II1/2D Ex ta/TB IIIC da/DB
- Process connection; material: G1-1/2 external thread; PBT
- Design, length: Shaft, 300mm
- Power supply: 20-28Vdc
- Measurement blades; material: Standard; 304
Technical specifications
- Product type
Level sensor
- Type
FTE20
- Min. operating voltage
20 V DC
- Max. operating voltage
28 V DC
- Operating voltage
20 - 28 V DC
- Enclosure material
PBT
- Model
Capacitive
- Min. temperature
-20 °C
- Max. temperature
60 °C
- Length
300 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988496 Endress+Hauser Level sensor Capacitive FTE20 FTE20-BI13AE11
User & Safety Instructions 2988496 Endress+Hauser Level sensor Capacitive FTE20 FTE20-BI13AE11
Description

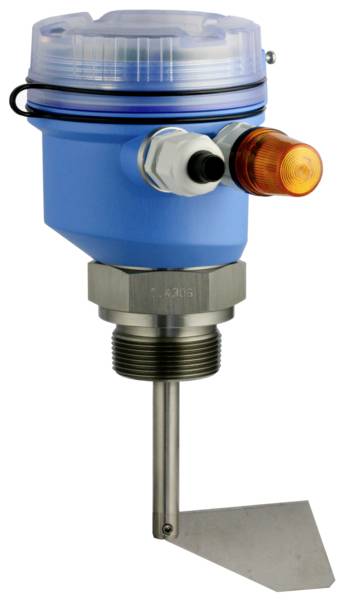

The Soliswitch FTE20 is a swing arm switch for position detection in bulk materials. With its robust polymer housing and the compact design it is an ideal sensor for full, empty and demand messages. The optimized polymers make the device extremely robust and therefore suitable for use in areas subject to dust explosion hazards according to the latest standards.
This text is machine translated.
This text is machine translated.
Features
- Line-guided cable channel helps with the initial start-up, because it guides you to the clamps without clamping. A circuit diagram is included in the unit.
- User-friendly thanks to undetachable screw cap, rotating housing and tool-free lid opening.
- Easy testing during installation and - if necessary - quick fault search through function check very easily with a screwdriver. The paddle can be blocked without disassembling the device.
- The visual rotating monitoring through the transparent lid is especially helpful in environments endangered by dust explosion.
