Endress+Hauser Level sensor Capacitive FTW31 FTW31-A1A2CA2A PNP
EAN:
Part number:
Item no:
Product type
Level sensor
Max. operating voltage
45 V DC
Contact type
1 PNP
Outputs
PNP
Model
Capacitive
Number
Total (€ 214.29 / piece)
€ 214.29
plus VAT.
14-day return policy included
Highlights & Details
Capacitive limit switch Liquipoint FTW31/32 FTW31-A1A2CA2A 2x rod, 316L 1000mm L, 316L FEW52; PNP 10.8-45VDC
- Approval: Ex-free range
- Process connection: Thread ISO228 G1-1/2, PPS
- Measuring point: 2x rod, 316L
- Probe length: 1000mm L, 316L
- Cable entry: Screw connection M20
- Electronic; output: FEW52; PNP 10.8-45VDC
- Additional equipment: Basic version
Technical specifications
- Product type
Level sensor
- Type
FTW31
- Min. operating voltage
10.8 V DC
- Max. operating voltage
45 V DC
- Operating voltage
10.8 - 45 V DC
- Contact type
1 PNP
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Capacitive
- Material properties
rust-proof
- Connector
Cable gland (M20)
- Length
1000 mm
- Height
1000 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988724 Endress+Hauser Level sensor Capacitive FTW31 FTW31-A1A2CA2A PNP
Description

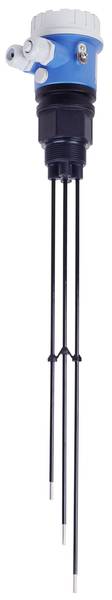

The Lilipoint FTW31 is a rod probe for limit level detection in conductive liquids. With up to 5 rods it offers numerous measuring possibilities like overfill protection, dry run protection, two-point control of pumps or multi-point detection. The device does not have to be calibrated.
This text is machine translated.
This text is machine translated.
Features
- Capture up to five point levels with one probe
- Two-point control and additional MAX and MIN recording
