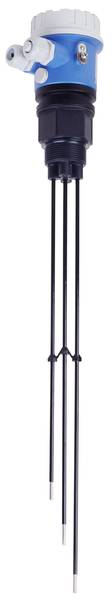

Endress+Hauser Level sensor Capacitive FTW31 FTW31-D1A2HA0A
EAN:
Part number:
Item no:
Product type
Level sensor
Model
Capacitive
Connector
Cable gland
Length
5000 mm
Type
FTW31
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
14-day return policy included
Highlights & Details
Liquid point FTW31/32 FTW31-D1A2HA0A 2x rod, 316L 500mm L, 316L Separate instrumentation
- Approval: ATEX II 2G EEx ia IIC T6, WHG, XA, leakage monitoring, observe safety instructions (XA) (electrostatic charging)
- Process connection: Thread ISO228 G1-1/2, PPS
- Measuring point: 2x rod, 316L
- Probe length: 500mm L, 316L
- Cable entry: Screw connection M20
- Electronics; Output: Separate instrumentation
- Additional equipment: Basic version
Technical specifications
- Product type
Level sensor
- Type
FTW31
- Enclosure material
Polyphenylene sulphide
- Model
Capacitive
- Connector
Cable gland
- Features
acid-resistant
- Length
5000 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988750 Endress+Hauser Level sensor Capacitive FTW31 FTW31-D1A2HA0A
Description
The Lilipoint FTW31 is a rod probe for limit level detection in conductive liquids. With up to 5 rods it offers numerous measuring possibilities like overfill protection, dry run protection, two-point control of pumps or multi-point detection. The device does not have to be calibrated.
This text is machine translated.
This text is machine translated.
Features
- Capture up to five point levels with one probe
- Two-point control and additional MAX and MIN recording
