Endress+Hauser Level sensor Capacitive FTW325 FTW325-C2B1A
EAN:
Part number:
Item no:
Product type
Level sensor
Max. operating voltage
60 V DC
30 V AC
Contact type
1 change-over
Model
Capacitive
Type
FTW325
Number
Total (€ 197.47 / piece)
€ 197.47
plus VAT.
14-day return policy included
Highlights & Details
Capacitive limit switches Nivotester FTW325 FTW325-C2B1A 1x SPDT fill level + 1x SPST alarm 20-30VAC/20-60VDC rail mounting, 22.5mm, 2-channel
- ATEX II (1) G [Ex ia Ga] IIC, WHG ATEX II (1) D [Ex ia Da] IIIC, WHG
- Housing: Rail mounting, 22.5mm, 2-channel
- Power supply 20-30VAC/20-60VDC
- Switch output: 1x SPDT fill level + 1x SPST alarm
- Additional equipment: Basic version
Technical specifications
- Product type
Level sensor
- Type
FTW325
- Min. operating voltage
20 V DC
20 V AC
- Max. operating voltage
60 V DC
30 V AC
- Operating voltage
20, 20 - 60, 30 V DC, V AC
- Contact type
1 change-over
- Model
Capacitive
- Min. temperature
-20.0 °C
- Max. temperature
60.0 °C
- Width
22.5 mm
- Content
1 pc(s)
- Nominal voltage
24 V DC/AC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988762 Endress+Hauser Level sensor Capacitive FTW325 FTW325-C2B1A
Description

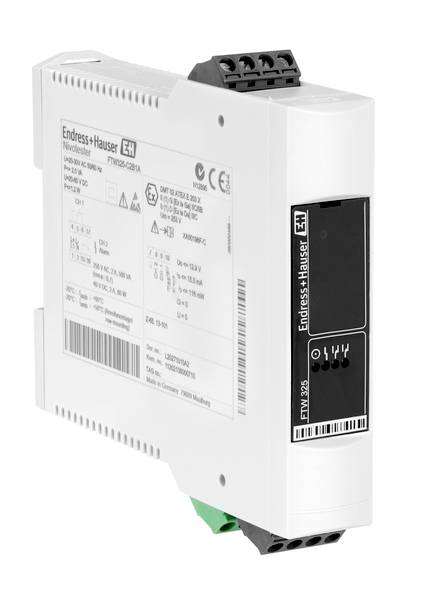

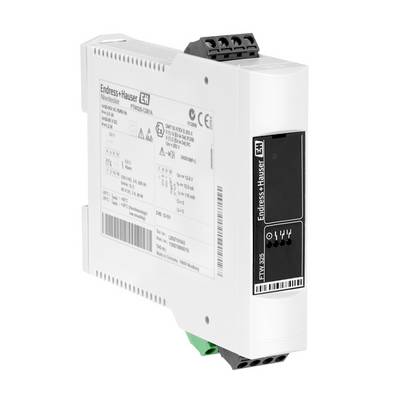

The Nivotester FTW325 is a limit switch with intrinsically safe signal circuit for connection to a conductive sensor. It has a compact case for easy serial mounting on a standard DIN rail in the control cabinet.
This text is machine translated.
This text is machine translated.
Features
- Cable monitoring to sensor
- Compact case for simple series mounting on standard DIN-rail in the control cabinet
- Adjustable sensitivity range
