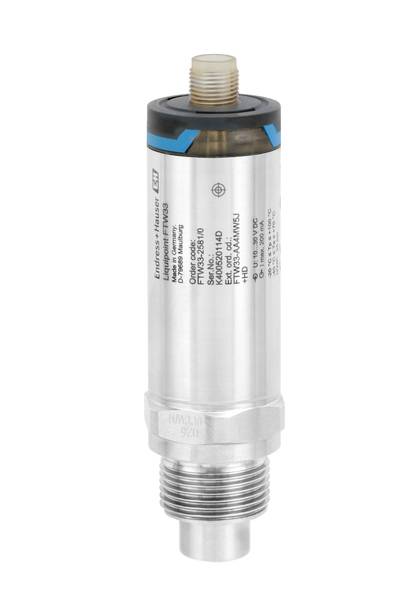

Endress+Hauser Level sensor Capacitive FTW33 FTW33-AA4N3EJ shielded PNP
EAN:
Part number:
Item no:
Product type
Level sensor
Max. operating voltage
30 V DC
Contact type
1 PNP
Outputs
PNP
Model
Capacitive
Number
Total (€ 449.58 / piece)
€ 449.58
plus VAT.
14-day return policy included
Highlights & Details
Capacitive limit switch Liquipoint FTW23/33 FTW33-AA4N3EJ 10-30VDC; 3-conductor PNP Tri-Clamp ISO2852 DN40-51 (2"), 316L, DIN32676 DN50
- Approval: Ex-free range
- Power supply; output: 10-30VDC; 3-wire PNP
- Electrical connection: Connector M12, IP66/68/69 NEMA type 4/6P Encl.
- Process connection: Tri-Clamp ISO2852 DN40-51 (2"), 316L, DIN32676 DN50
Technical specifications
- Product type
Level sensor
- Type
FTW33
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 PNP
- Outputs
PNP
- Model
Capacitive
- Installation type
shielded
- Min. temperature
-40.0 °C
- Max. temperature
70.0 °C
IP66
IP68
IP69
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988792 Endress+Hauser Level sensor Capacitive FTW33 FTW33-AA4N3EJ shielded PNP
User & Safety Instructions 2988792 Endress+Hauser Level sensor Capacitive FTW33 FTW33-AA4N3EJ shielded PNP
Description
The Lilipoint FTW33 was developed for the food industry and meets all international hygiene requirements. This device is also ideally suited for applications in all other sectors. For use in pasty and adhesive media and media with strong adhesion.
This text is machine translated.
This text is machine translated.
Features
- Flush-mounted design allows the smelting of pipes
- No individual adaptation to every Medium required
- CIP and SIP cleanability guaranteed - up to protection class IP 69
