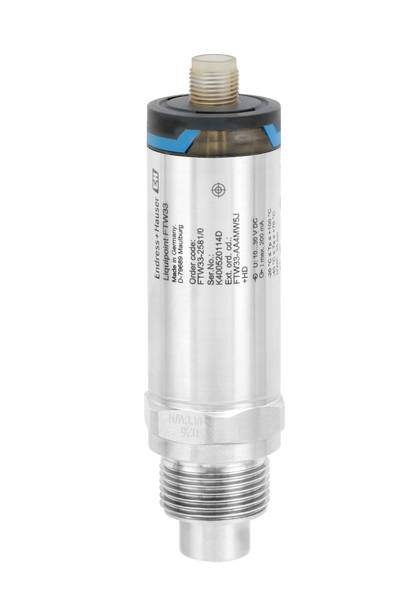

Endress+Hauser Level sensor Capacitive FTW33 FTW33-CA4MW5J M12 shielded PNP
EAN:
Part number:
Item no:
Product type
Level sensor
Max. operating voltage
30 V DC
Contact type
1 PNP
Outputs
PNP
Model
Capacitive
Number
Total (€ 357.14 / piece)
€ 357.14
plus VAT.
14-day return policy included
Highlights & Details
Liquid Point FTW23/33 FTW33-CA4MW5J 10-30VDC capacitive limit switch; 3-conductor PNP thread ISO228 G3/4, 316L, install > accessories welding adapter
- Approval: CSA C/US General Purpose
- Power supply; output: 10-30VDC; 3-wire PNP
- Electrical connection: Connector M12, IP65/67 NEMA type 4 Encl.
- Process connection: Thread ISO228 G3/4, 316L, mounting > accessories welded adapter
Technical specifications
- Product type
Level sensor
- Type
FTW33
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 PNP
- Outputs
PNP
- Model
Capacitive
- Installation type
shielded
- Size
M12
- Min. temperature
-40.0 °C
- Max. temperature
70.0 °C
IP65
IP67
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988798 Endress+Hauser Level sensor Capacitive FTW33 FTW33-CA4MW5J M12 shielded PNP
User & Safety Instructions 2988798 Endress+Hauser Level sensor Capacitive FTW33 FTW33-CA4MW5J M12 shielded PNP
Description
The Lilipoint FTW33 was developed for the food industry and meets all international hygiene requirements. This device is also ideally suited for applications in all other sectors. For use in pasty and adhesive media and media with strong adhesion.
This text is machine translated.
This text is machine translated.
Features
- Flush-mounted design allows the smelting of pipes
- No individual adaptation to every Medium required
- CIP and SIP cleanability guaranteed - up to protection class IP 69
