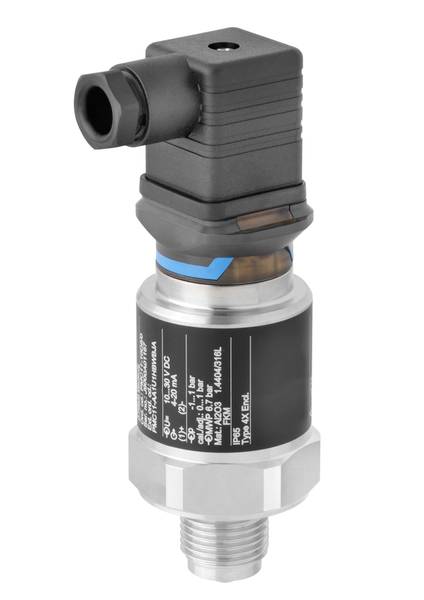

Endress+Hauser PMC11 Pressure transducer -1.0 - 25.0 bar
EAN:
Part number:
Item no:
Product type
Pressure transducer
Output
4-20 mA
Media temperature (range)
-20.0 up to 85.0 °C
Type
PMC11
Manufacturer part #
PMC11-AA1U1RBWWJA
Number
Total (€ 222.69 / piece)
€ 222.69
plus VAT.
14-day return policy included
Highlights & Details
Pressure transmitter Cerabar PMC11/21,O/PMP11/21/23 PMC11-AA1U1RBWWJA 4-20mA solenoid connector ISO4400 M16, IP65 NEMA type 4X Encl. 25bar/2.5MPa/375psi relative
- Approval: Ex-free range
- Output 4 to 20 mA
- Electrical connection: ISO4400 M16 solenoid connector, IP65 NEMA type 4X Encl.
- Sensor range: 25bar/2.5MPa/375psi relative, overload:60bar/6MPa/900psi
- Calibration; unit: Sensor range; mbar/bar
- Process connection: Thread ISO228 G1/2, drill. 11.4mm, 316L
- Seal: FKM
Technical specifications
- Product type
Pressure transducer
- Output
4-20 mA
- Media temperature (range)
-20.0 up to 85.0 °C
- Type
PMC11
- Manufacturer part #
PMC11-AA1U1RBWWJA
- Max. media temperature
85.0 °C
- Media temperature (min.)
-20.0 °C
- Air pressure reading range (max.)
25.0 bar
- Air pressure reading range (min.)
-1.0 bar
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988853 Endress+Hauser PMC11 Pressure transducer -1.0 - 25.0 bar
User & Safety Instructions 2988853 Endress+Hauser PMC11 Pressure transducer -1.0 - 25.0 bar
Description
The Cerabar PMC11 is a very compact pressure transmitter with capacitive, oil-free ceramic sensor that can measure overpressure from 400mbar to 40bar (depending on configuration) in gases, vapors, liquids and dust. The PMC11 is designed for standard applications in the process industry.
This text is machine translated.
This text is machine translated.
Features
- Easy to operate
- High performance
- Long-term stability
- High material quality
